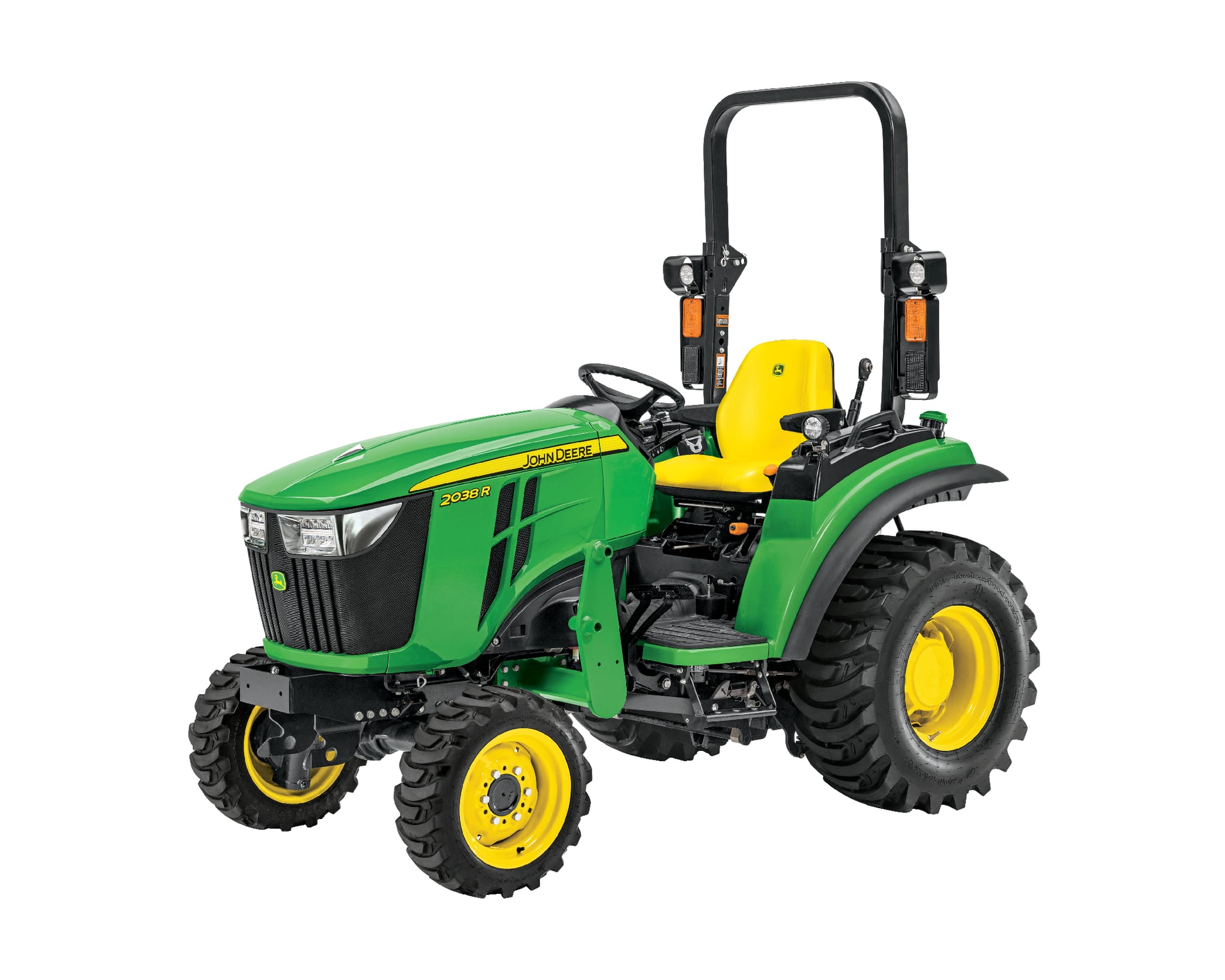

2038R Compact Tractor
Starting at:$30,640.00
WADE Promotion – 0% for 84 months.
Save $2,500 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing Will Change as Implements are Added
- AutoConnect™ Drive-over Mower Decks up to 72 inches
- Model is on larger, heavier frame for added stability
- Standard cruise control, 12-V outlet and premium seating
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | At SAE J1995 rated power: 27.4 kW<br> 36.7 hp |
| Power take-off (PTO) power | 22.7 kW<br> 30.4 hp |
| Steering hydraulics | 15 L/min<br> 4 gpm |
| Implement hydraulics | 20.2 L/min<br> 5.3 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615 kg<br> 1356 lb |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open station: 1320 kg<br> 2910 lb<br> Cab: Not applicable |
| Wheelbase | 1723 mm<br> 67.8 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV88C-NJT |
| Engine power (gross) | At SAE J1995 rated power: 27.4 kW<br> 36.7 hp |
| Power take-off (PTO) power | 22.7 kW<br> 30.4 hp |
| Rated engine speed | 2500 rpm |
| Type | Direct Injection |
| Injection pump type | Direct Injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.568 L<br> 95.8 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86x90 mm<br> 3.39x3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 104.7 Nm<br> 77.2 lb-ft |
| Fuel tank capacity | 32 L<br> 8.5 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 85 amp |
| Starter size | 1.4 kW<br> 1.9 hp |
| Type | Direct Injection |
| Fuel consumption | <br> |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Final drive | Spur gear |
| Brakes | Wet disc |
| Steering | Power steering |
| Axle capacity | Front<br> 880 kg<br> 1940 lb<br> Rear<br> 1800 kg<br> 3968 lb<br> |
| Creeper | No |
| Cruise control | Standard |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 15 L/min<br> 4 gpm<br> Implement<br> 20.2 L/min<br> 5.3 gpm<br> 35.2 L/min<br> 9.3 gpm |
| Pump type | Dual gear |
| Maximum operating pressure | 172 bar<br> 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to three |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615 kg<br> 1356 lb |
| Standard | Rear: 543 rpm<br> Mid: 1998 rpm |
| Control | Independent |
| Clutch | Wet disc |
| Brake (for mid and rear PTO) | Wet disc |
| Crankcase with filter | 4.5 L<br> 4.8 qt |
| Type | Spur Gear |
| Differential lock | Yes |
| Rollover protective structure | Type<br> Foldable<br> ASABE S478 |
| Platform - flat/straddle | Semi-flat |
| Wheelbase | 1723 mm<br> 67.8 in. |
| Turning radius with brakes | 2.46 m<br> 8.07 ft |
| Approximate shipping weight (open-station; cab) | Open station: 1320 kg<br> 2910 lb<br> Cab: Not applicable |
| Front | R1 Ag 7.00-12<br> R3 Turf 23x8.50-14<br> R4 Industrial 23x8.50-14<br> R3 Turf Radial 200/60 R15 |
| Rear | R1 Ag 12.4-16<br> R3 Turf 14-17.5<br> R4 Industrial 14-17.5<br> R3 Turf Radial 300/70 R20 |
| Toolbox | Yes |
| Tilt steering wheel | Yes |
| 12-V Outlet | Yes |
