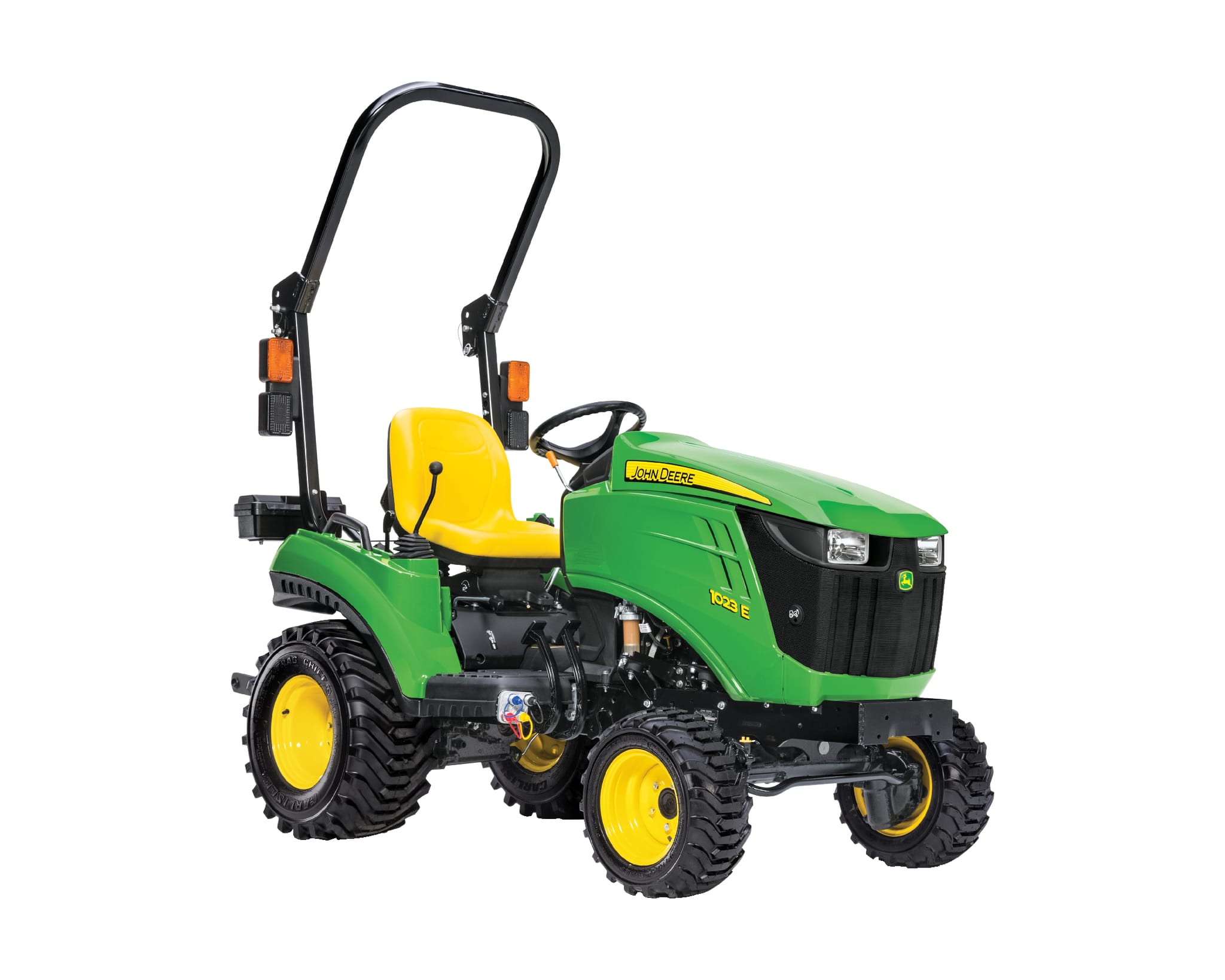

1023E Sub-Compact Tractor
Starting at:$15,149.00
WADE Promotion – 0% for 84 months.
Save $250 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing Will Change as Implements are Added
- Powerful Final Tier 4-compliant diesel engine
- AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
- $99 monthly payment option†
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | SAE J1995 rated power: 16 kW<br> 21.5 hp<br> 21.8 PS |
| Power take-off (PTO) power | 11.1 kW<br> 14.9 hp |
| Steering hydraulics | 13.2 L/min<br> 3.5 gpm |
| Implement hydraulics | 13.2 L/min<br> 3.5 gpm |
| Hitch type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 344 kg<br> 758 lb |
| Standard transmission; forward/reverse | Hydrostatic - two range |
| Cruise control | No |
| Approximate shipping weight (open-station; cab) | Open station: 656 kg<br> 1446 lb<br> Cab: Not applicable |
| Wheelbase | 1450 mm<br> 57.1 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNM74F-NCJT |
| Engine power (gross) | SAE J1995 rated power: 16 kW<br> 21.5 hp<br> 21.8 PS |
| Power take-off (PTO) power | 11.1 kW<br> 14.9 hp |
| Rated engine speed | 3200 rpm |
| Type | Diesel |
| Injection pump type | Indirect injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 0.993 L<br> 60.6 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 74 x 77 mm<br> 2.91 x 3.03 in. |
| Compression ratio | 23.5:1 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 47.7 Nm<br> 35.2 lb-ft |
| Fuel tank capacity | 24 L<br> 6.3 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Starter size | 1.2 kW<br> 1.6 hp |
| Type | Indirect injection |
| Fuel consumption | <br> |
| Standard transmission; forward/reverse | Hydrostatic - two range |
| Left-hand reverser | No |
| Final drive | Spur gear |
| Brakes | Wet disc (left-hand pedal) |
| Steering | Power |
| Axle capacity | Front<br> 612 kg<br> 1349 lb<br> Rear<br> 715 kg<br> 1576 lb<br> |
| Creeper | No |
| Cruise control | No |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 13.2 L/min<br> 3.5 gpm<br> Implement<br> 13.2 L/min<br> 3.5 gpm<br> 24 L/min<br> 6.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 138 bar<br> 2000 psi |
| Draft control sensing | Select control |
| Remote control valves available | Three |
| Type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 344 kg<br> 758 lb |
| Standard | Rear: 540 rpm<br> Mid: 2100 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 2.7 L<br> 2.9 qt |
| Transmission and hydraulic system | 12.3 L<br> 3.2 gal. |
| Type | Spur gear |
| Differential lock | Yes |
| Rollover protective structure | Type<br> Foldable<br> Yes |
| Platform - flat/straddle | One-piece semi flat |
| Gear shift location - console/floor | Left-hand side |
| Wheelbase | 1450 mm<br> 57.1 in. |
| Front axle clearance | 195 mm<br> 7.7 in. |
| Turning radius without brakes | Outside front tire: 2.51 m<br> 8.2 ft |
| Limited slip differential | No |
| Approximate shipping weight (open-station; cab) | Open station: 656 kg<br> 1446 lb<br> Cab: Not applicable |
| Front | R3 Turf: 18x8.50-10<br> R4: 18x8.5-10 |
| Rear | R3 Turf: 26x12-12<br> R4: 26x12-12 |
| Front tread range | 931 mm<br> 36.7 in. |
| Rear tread spacing | 895 mm<br> 35.2 in. |
| Toolbox | Yes |
Similar Products

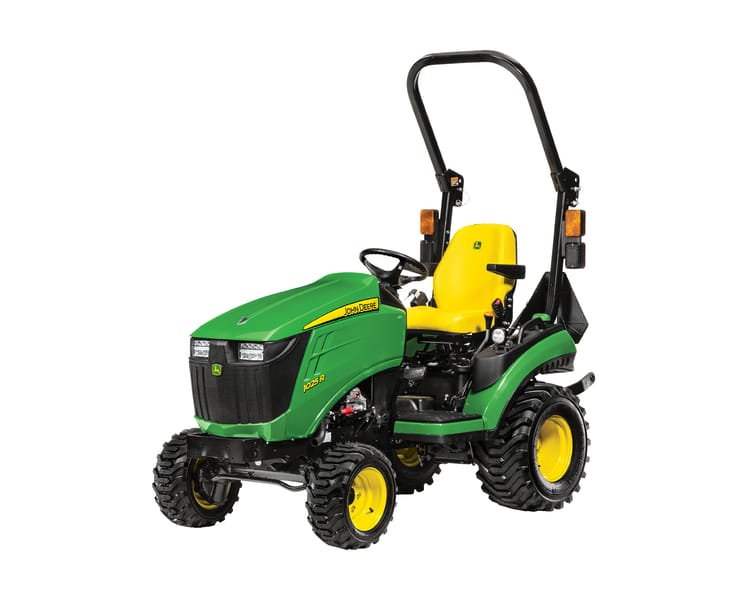

1025R Sub-Compact Tractor
