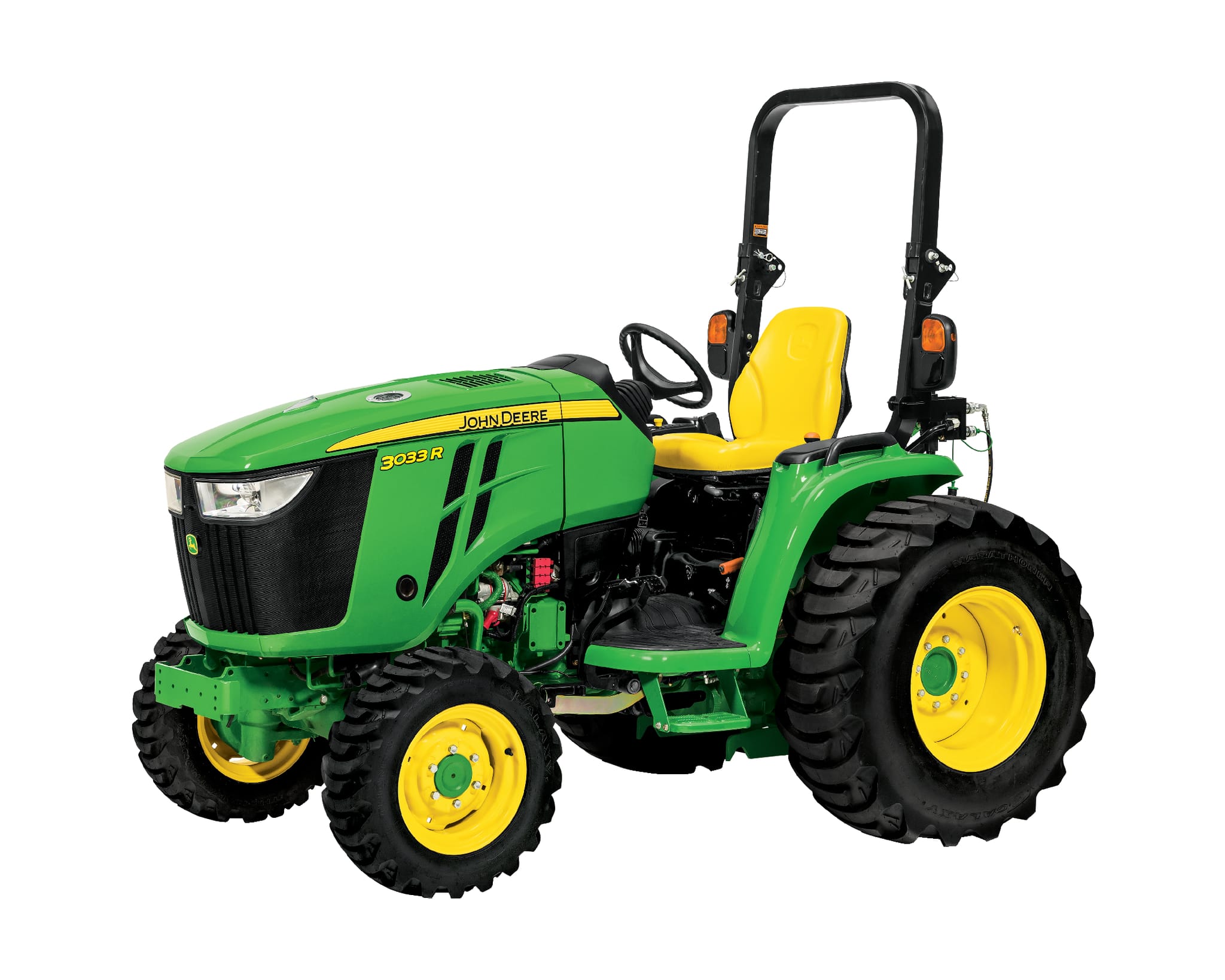

3033R Compact Utility Tractor
Starting at:$30,696.00
WADE Promotion – 0% for 60 months.
Save $1,250 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing Will Change as Implements are Added
- AutoConnect™ deck compatible for deck attach/detach in seconds
- Cab or Open Station configuration available
- PowrReverser™ or E-hydro transmission with Twin Touch™ pedals
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | 23.7 kW<br> 32.2 hp<br> PS at 2600 rpm<br> SAE J1995 rated power |
| Power take-off (PTO) power | PRT - 19.5 kW<br> 26.1 hp<br> eHST - 17.2 kW<br> 23 hp<br> Per SAE J1995 |
| Steering hydraulics | 23.5 L/min<br> 6.2 gpm |
| Implement hydraulics | 34.3 L/min<br> 9.1 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 995 kg<br> 2194 lb |
| Standard transmission; forward/reverse | PowrReverser transmission (PRT) |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Rollover protective structure (ROPS) - 1315.4 kg<br> 2900 lb<br> Cab: 1619.3 kg<br> 3570 lb |
| Wheelbase | 172.7 cm<br> 68 in. |
| Family | EYDXL1.64NDA<br> FYDXL1.64NDA<br> GYDXL1.64NDA |
| Manufacturer | Yanmar |
| Engine model | 3TNV88C-MJT |
| Engine power (gross) | 23.7 kW<br> 32.2 hp<br> PS at 2600 rpm<br> SAE J1995 rated power |
| Power take-off (PTO) power | PRT - 19.5 kW<br> 26.1 hp<br> eHST - 17.2 kW<br> 24.3 hp<br> Per SAE J1995 |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 3 / 1.64 L<br> 3 / 100 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 88x90 mm<br> 3.46x3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed | 87 Nm<br> 64.2 lb-ft |
| Fuel tank capacity | Rollover protective structure (ROPS): 37.4 L<br> 10 U.S. gal.<br> Cab: 47.6 L<br> 12.6 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 1.4 kW<br> 1.9 hp |
| Type | High pressure common rail direct injection |
| Fuel consumption | 7.6 L/hr<br> 2 U.S. gal. |
| Standard transmission; forward/reverse | PowrReverser transmission (PRT) |
| Optional transmission; forward/reverse | PRT only |
| Left-hand reverser | eHydro transmission (eHST) |
| Transmission gear ranges | 12F/12R PowrReverser (PRT)<br> 3-range, infinitely variable |
| Final drive | Bull Gear |
| Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Clutch, wet/dry | Wet disc |
| Axle capacity | Front<br> 1450 kg<br> 3197 lb<br> Rear<br> 1850 kg<br> 4079 lb<br> |
| Creeper | SpeedMatch optional |
| Cruise control | Standard |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 23.5 L/min<br> 6.2 gpm<br> Implement<br> 34.3 L/min<br> 9.1 gpm<br> 57.8 L/min<br> 15.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 172.4 bar<br> 2500 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to six rear remotes |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms | 995 kg<br> 2194 lb |
| Standard | Independent Rear - 540 rpm |
| Optional | Mid - 2100 rpm |
| Control | Position control |
| Clutch | Wet disc |
| Brake (for mid and rear PTO) | Wet disc |
| Crankcase with filter | 4.3 L<br> 4.5 qt |
| Transmission and hydraulic system | 24.6 L<br> 6.5 U.S. gal. |
| Type | Bull Gear |
| Rollover protective structure | Type<br> Foldable<br> Yes |
| Platform - flat/straddle | Flat |
| Gear shift location - console/floor | PRT - Left-hand side |
| Compliance | Complies with OSHA, SAE, and CSA standards for roll-over protection |
| Visibility | 360 degree (angle) |
| Doors | Two |
| Noise rating | 80 dBA |
| Seat equipment | Scissor-link |
| Wheelbase | 172.7 cm<br> 68 in. |
| Front axle clearance | 30 cm<br> 11.8 in. |
| Turning radius with brakes | 2.7 m<br> 8.8 ft |
| Turning radius without brakes | 2.8 m<br> 9.2 |
| Approximate shipping weight (open-station; cab) | ROPS: 1315.4 kg<br> 2900 lb<br> Cab: 1619.3 kg<br> 3570 lb |
| Front | Farm - 7-14<br> Turf - 27x8.50-15<br> Turf Special - 25/10.5LLx15<br> Industrial - 25x8.5-14 or 27x8.5-15 |
| Rear | Farm - 11.2-24<br> Turf - 41x14-20<br> Turf Special - 41x18LL-16.1<br> Industrial - 15-19.5 or 43x16-20 |
| Front tread range | 114 cm<br> 44.9 in. |
| Rear tread spacing | 103.1 cm<br> 40.6 in. |
