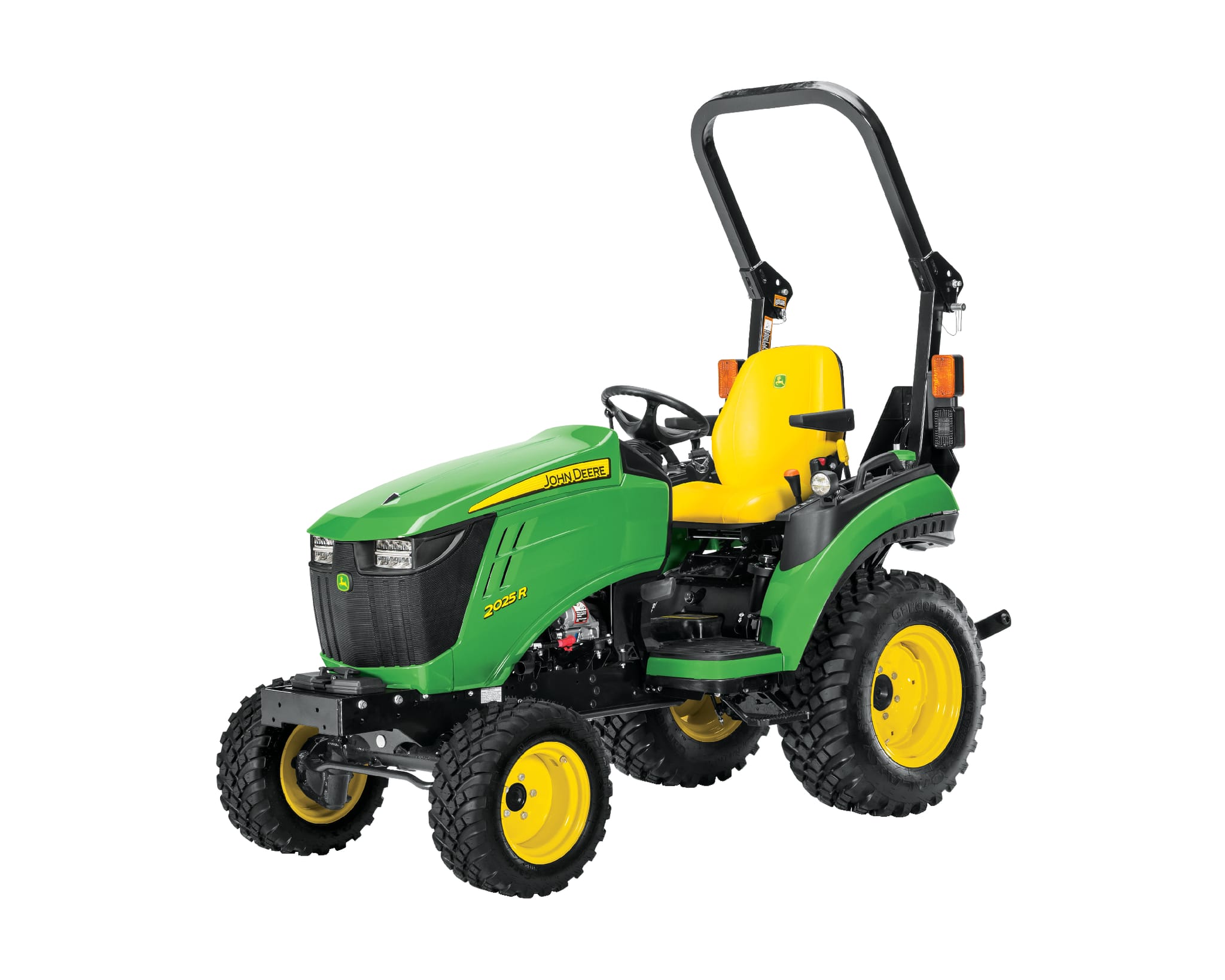

2025R Compact Tractor
Starting at:$20,932.00
WADE Promotion – 0% for 84 months.
Save $2,000 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing Will Change as Implements are Added
- Powerful and fuel-efficient Tier IV Yanmar engine
- Hydro transmission with TwinTouch™ pedals for ease of use
- AutoConnect™ 7-Iron Drive-over mower decks up to 60 inches
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | 17.8 kW<br> 23.9 hp<br> SAE J1995 rated power |
| Power take-off (PTO) power | 13.4 kW<br> 18 hp |
| Steering hydraulics | 13.25 L/min<br> 3.5 gpm |
| Implement hydraulics | 13.25 L/min<br> 3.5 gpm |
| Hitch type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 400 kg<br> 882 lb |
| Standard transmission; forward/reverse | Hydrostatic - 2 range |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | 813.5 kg<br> 1793.4 lb |
| Wheelbase | 1600 mm<br> 63 in. |
| Family | GYDXL1.27NS1<br> HYDXL1.27NS1 |
| Manufacturer | Yanmar |
| Engine model | 3TNV80F-NCJT |
| Engine power (gross) | 17.8 kW<br> 23.9 hp<br> SAE J1995 rated power |
| Power take-off (PTO) power | 13.4 kW<br> 18 hp |
| Rated engine speed | 3200 rpm |
| Type | Diesel |
| Injection pump type | Indirect injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 3 / 1.267 L<br> 3 / 77 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 80 x 84 mm<br> 3.2 x 3.3 in. |
| Compression ratio | 23:01 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 53 Nm<br> 39.09 lb-ft |
| Fuel tank capacity | 20.4 L<br> 5.39 gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Starter size | 1.2 kW<br> 1.6 hp |
| Type | Indirect injection |
| Fuel consumption | <br> 5.8 L/hr<br> 1.5 U.S. gal./hr |
| Standard transmission; forward/reverse | Hydrostatic - 2 range |
| Left-hand reverser | No |
| Final drive | Spur Gear |
| Brakes | Wet disc |
| Steering | Power steering |
| Axle capacity | Front<br> 612 kg<br> 1349 lb<br> Rear<br> 1100 kg<br> 2425 lb<br> |
| Creeper | No |
| Cruise control | Standard |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 13.25 L/min<br> 3.5 gpm<br> Implement<br> 13.25 L/min<br> 3.5 gpm<br> 26.5 L/min<br> 7 gpm |
| Pump type | Gear |
| Maximum operating pressure | 148.2 bar<br> 2150 psi |
| Draft control sensing | Position control |
| Remote control valves available | Two |
| Type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 400 kg<br> 882 lb |
| Standard | Rear - 540 rpm<br> Mid - 2100 rpm |
| Control | Independent |
| Clutch | Wet disc |
| Brake (for mid and rear PTO) | Wet disc |
| Crankcase with filter | 2.7 L<br> 2.9 qt |
| Type | Spur Gear |
| Differential lock | Yes |
| Rollover protective structure | Type<br> Foldable<br> OSHA, SAE, ASAE |
| Platform - flat/straddle | Three-piece semi flat |
| Gear shift location - console/floor | Left-hand side |
| Wheelbase | 1600 mm<br> 63 in. |
| Front axle clearance | 316 mm<br> 12.5 in. |
| Turning radius without brakes | 2.65 m<br> 8.7 ft |
| Limited slip differential | No |
| Approximate shipping weight (open-station; cab) | 813.5 kg<br> 1793.4 lb |
| Front | R3 Turf - 23x8.50-12<br> R4 Industrial - 23x8.50-12<br> R3 Radial - 220/55-R12 |
| Rear | R3 Turf - 31x13.5-15<br> R4 Industrial - 12-16.5<br> R3 Radial - 280/70-R16 |
| Front tread range | 95.3 cm<br> 37.5 in. |
| Toolbox | Yes |
| Tilt steering wheel | Yes |
| 12-V Outlet | Yes |
