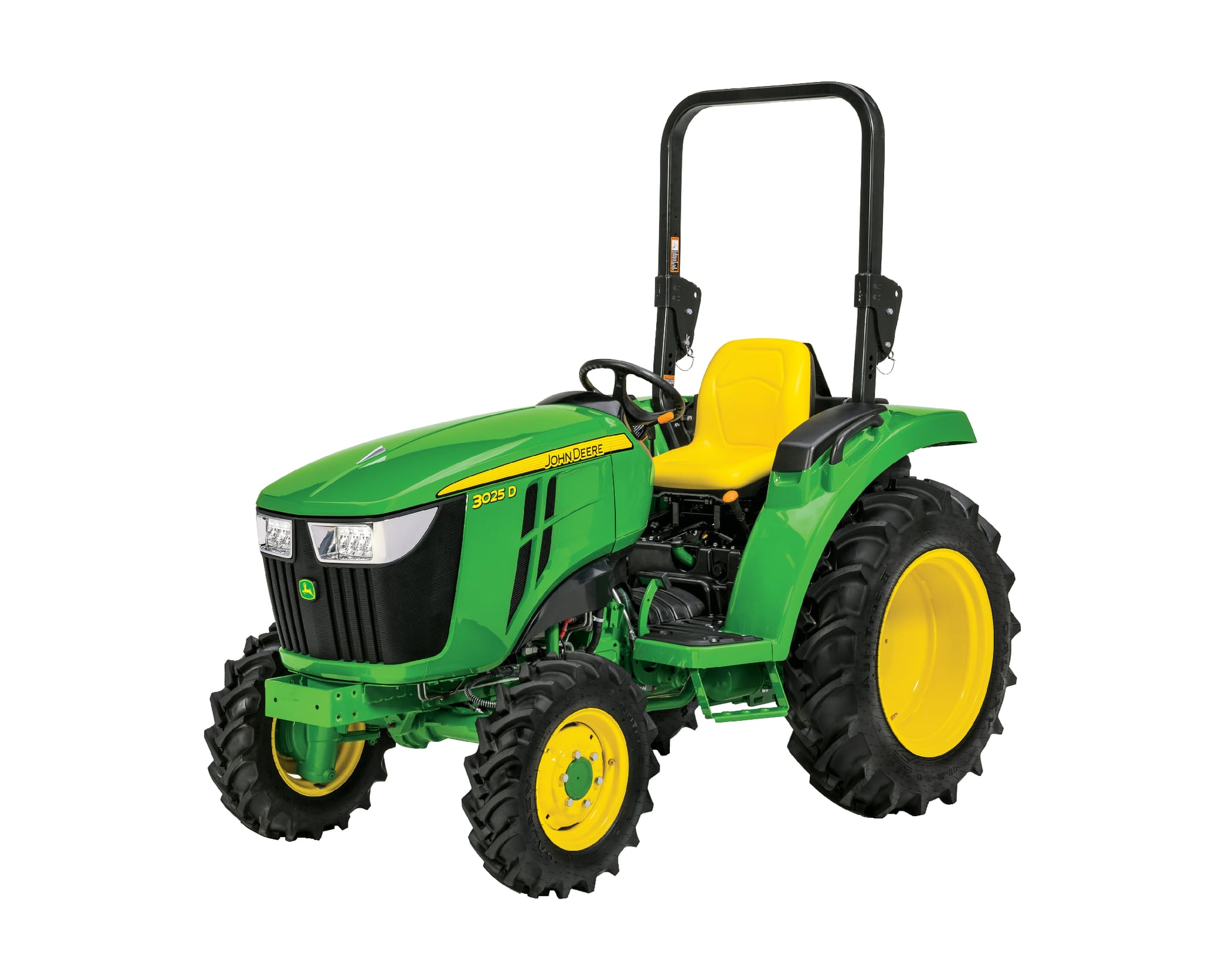

3025D Compact Utility Tractor
Starting at:$20,055.00
WADE Promotion – 0% for 84 months.
Save $2,000 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing Will Change as Implements are Added
- Standard 4wd for Maximum Traction
- Heavy duty drive train with a gear drive transmission 8F/8R
- On-board diagnostics including Service Advisor
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | 18.2 kW<br> 24.4 hp |
| Power take-off (PTO) power | 15.4 kW<br> 20.7 hp |
| Steering hydraulics | 14.4 L/min<br> 3.8 gpm |
| Implement hydraulics | 19.2 L/min<br> 5.1 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 944 kg<br> 2081.2 lb |
| Standard transmission; forward/reverse | 8F/8R synchromesh shuttle shift gear transmission |
| Cruise control | No |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1260 kg<br> 2778 lb<br> Cab: Not applicable |
| Wheelbase | 1574 mm<br> 62 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV88F-EPJPT |
| Engine power (gross) | 18.2 kW<br> 24.4 hp |
| Power take-off (PTO) power | 15.4 kW<br> 20.7 hp |
| Rated engine speed | 2400 rpm |
| Injection pump type | Direct injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 3 / 1.64 L<br> 3 / 100.2 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 88 x 90 mm<br> 3.46 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed | 72.4 Nm<br> 53.4 lb-ft |
| Fuel tank capacity | 36.7 L<br> 9.7 U.S. gal. |
| Battery size | 600 CCA |
| Alternator (12-V) | 55 amp |
| Starter size | 1.4 kW<br> 1.9 hp |
| Type | Direct injection |
| Fuel consumption | <br> |
| Standard transmission; forward/reverse | 8F/8R synchromesh shuttle shift gear transmission |
| Left-hand reverser | Yes |
| Transmission gear ranges | Four gears and two ranges |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Power steering |
| Axle capacity | Front<br> 880 kg<br> 1940 lb<br> Rear<br> 1600 kg<br> 3527 lb<br> |
| Creeper | No |
| Cruise control | No |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 14.4 L/min<br> 3.8 gpm<br> Implement<br> 19.2 L/min<br> 5.1 gpm<br> 33.6 L/min<br> 8.9 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 172 bar<br> 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to two (optional) |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms | 944 kg<br> 2081.2 lb |
| Standard | At 2400 rpm: 540 rpm |
| Control | Mechanical |
| Clutch | Transmission |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 4.5 L<br> 4.8 qt |
| Transmission and hydraulic system | 33 L<br> 34.8 qt |
| Type | Spur gear |
| Rollover protective structure | Type<br> Foldable<br> ASABE S478 |
| Platform - flat/straddle | Straddle |
| Gear shift location - console/floor | Right-hand side |
| Wheelbase | 1574 mm<br> 62 in. |
| Front axle clearance | Minimum: 331 mm<br> 13 in.<br> Maximum: 353 mm<br> 13.9 in. |
| Turning radius with brakes | 1.63 m<br> 5.3 ft |
| Approximate shipping weight (open-station; cab) | OOS: 1260 kg<br> 2778 lb<br> Cab: Not applicable |
| Front | R1 Bar: 7-14<br> R3 Turf: 27x8.5-15<br> R4 Industrial: 25x8.5-14 |
| Rear | R1 Bar: 11.2-24<br> R3 Turf: 41x14-20<br> R4 Industrial: 15-19.5 |
| Toolbox | Yes |
| Tilt steering wheel | No |
| 12-V Outlet | No |
