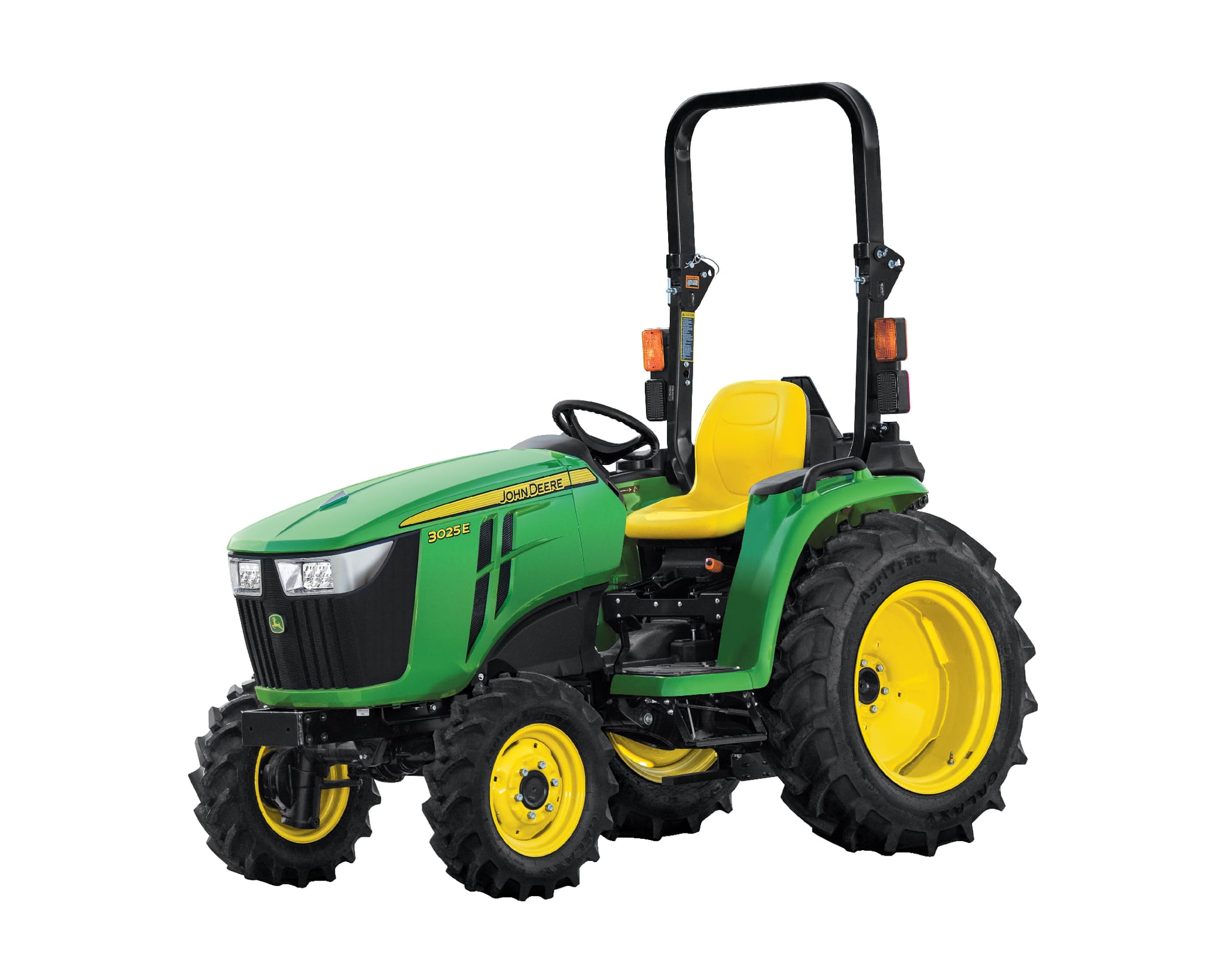

3025E Compact Utility Tractor
Starting at:$21,913.00
WADE Promotion – 0% for 84 months.
Save $2,000 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing Will Change as Implements are Added
- Standard four-wheel drive (4WD) for maximum traction
- Tightest turning radius in its horsepower class
- Hydro transmission with Twin Touch™ pedals for ease of use
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | 18.2 kW<br> 24.7 hp |
| Power take-off (PTO) power | 14.4 kW<br> 19.4 hp |
| Steering hydraulics | 15 L/min<br> 4 gpm |
| Implement hydraulics | 20.2 L/min<br> 5.3 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615.1 kg<br> 1356 lb |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Cruise control | Optional |
| Approximate shipping weight (open-station; cab) | 1007.9 kg<br> 2222 lb |
| Wheelbase | 159.5 cm<br> 62.8 in. |
| Family | EYDXL1.64NDA<br> FYDXL1.64NDA<br> GYDXL1.64NDA |
| Manufacturer | Yanmar |
| Engine model | 3TNV88F-EPJT2 |
| Engine power (gross) | 18.2 kW<br> 24.7 hp |
| Power take-off (PTO) power | 14.4 kW<br> 19.4 hp |
| Rated engine speed | 2400 rpm |
| Type | Diesel |
| Injection pump type | Direct injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 3 / 1.64 L<br> 3 / 100.2 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 88 x 90 mm<br> 3.46 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 72.4 Nm<br> 53.4 lb-ft |
| Fuel tank capacity | 28.5 L<br> 7.5 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 55 amp |
| Starter size | 1.4 kW<br> 1.9 hp |
| Type | Direct injection |
| Fuel consumption | <br> |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Left-hand reverser | No |
| Final drive | Bull Gear |
| Brakes | Wet disc |
| Steering | Power steering |
| Axle capacity | Front<br> 798 kg<br> 1760 lb<br> Rear<br> 1197 kg<br> 2640 lb<br> |
| Creeper | No |
| Cruise control | Optional |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 15 L/min<br> 4 gpm<br> Implement<br> 20.2 L/min<br> 5.3 gpm<br> 35.2 L/min<br> 9.3 gpm |
| Pump type | Dual gear |
| Maximum operating pressure | 172.4 bar<br> 2500 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to two (optional) |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615.1 kg<br> 1356 lb |
| Standard | Rear - 540 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 4.5 L<br> 4.8 qt |
| Transmission and hydraulic system | 22 L<br> 23.2 qt |
| Type | Bull Gear |
| Rollover protective structure | Type<br> Foldable<br> ASABE S478 |
| Platform - flat/straddle | Semi-flat |
| Gear shift location - console/floor | Left-hand side |
| Wheelbase | 159.5 cm<br> 62.8 in. |
| Front axle clearance | 36.3 cm<br> 14.3 in. |
| Turning radius without brakes | 2.9 m<br> 9.4 ft |
| Approximate shipping weight (open-station; cab) | 1007.9 kg<br> 2222 lb |
| Front | Farm - 7-14<br> Turf - 27x8.5-15<br> R4 - 25x8.5-14<br> R4 - 27x8.5-15 |
| Rear | Farm - 11.2-24<br> Turf - 41x14-20<br> R4 - 15-19.5<br> R4 - 43x16-20 |
Similar Products

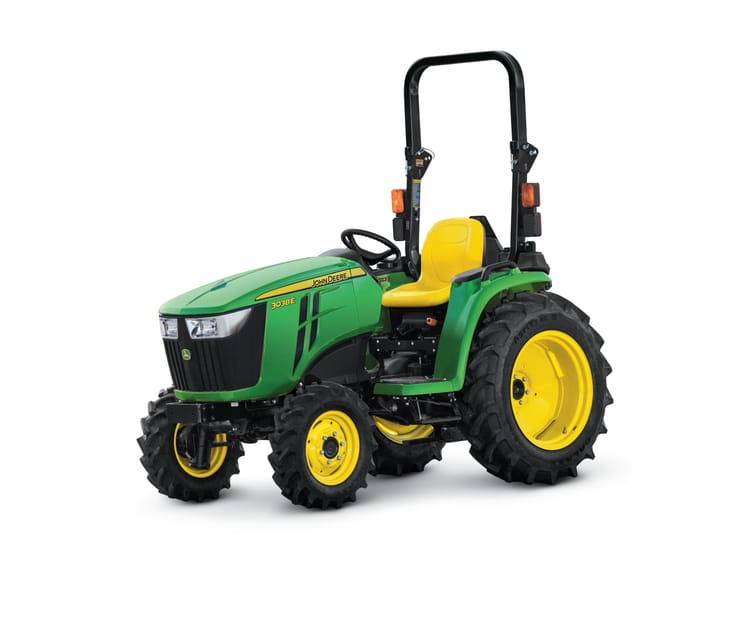

3032E Compact Utility Tractor
WADE Promotion – 0% for 84 months.
Save $2,000 with cash purchase.
Off...

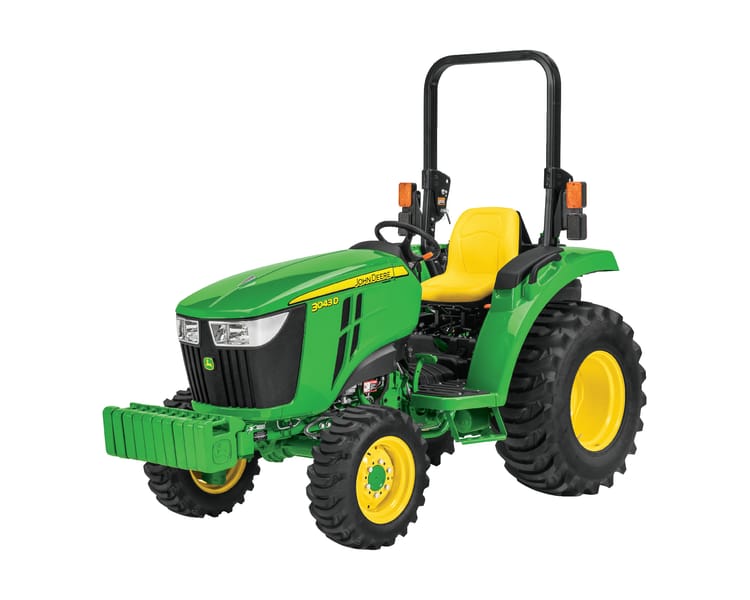

3043D Compact Tractor
WADE Promotion – 0% for 84 months.
Save $2,500 with cash purchase.
Off...

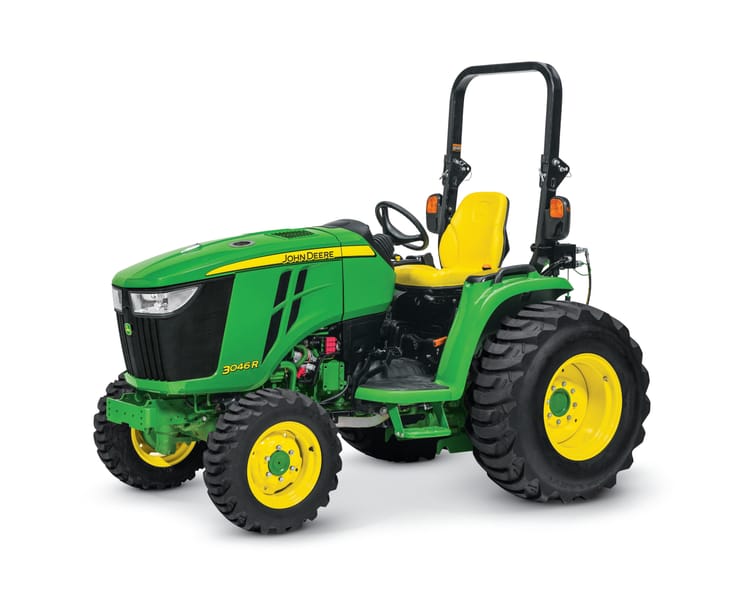

3046R Compact Utility Tractor
WADE Promotion – 0% for 60 months.
Save $1,250 with cash purchase.
Off...

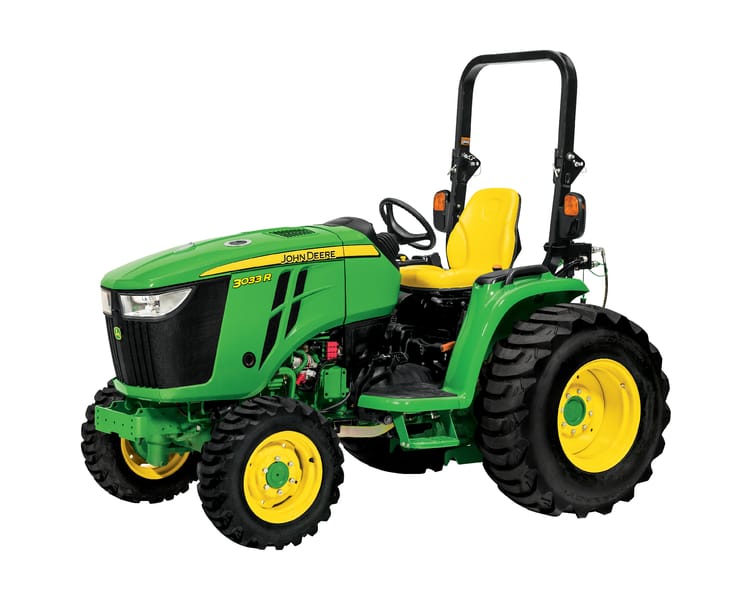

3033R Compact Utility Tractor
WADE Promotion – 0% for 60 months.
Save $1,250 with cash purchase.
Off...
3038E Compact Utility Tractor
WADE Promotion – 0% for 84 months.
Save $2,500 with cash purchase.
Off...
3025D Compact Utility Tractor
WADE Promotion – 0% for 84 months.
Save $2,000 with cash purchase.
Off...

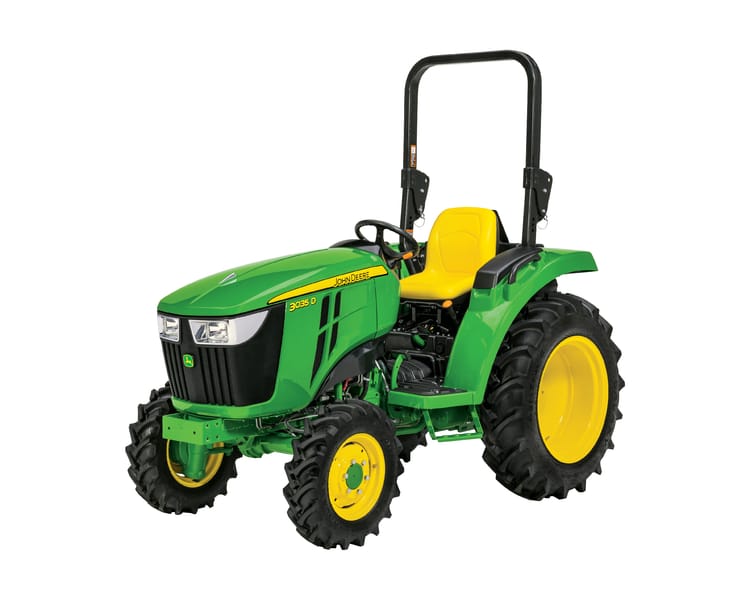

3035D Compact Tractor
WADE Promotion – 0% for 84 months.
Save $2,000 with cash purchase.
Off...

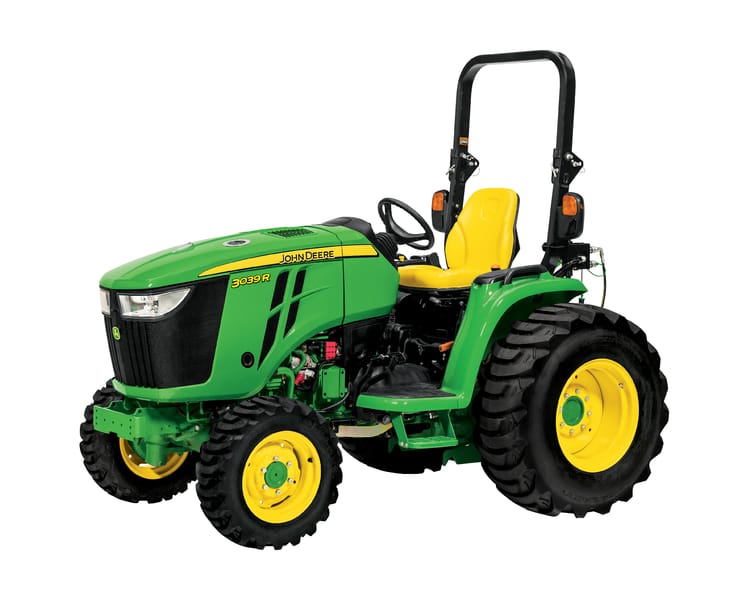

3039R Compact Utility Tractor
