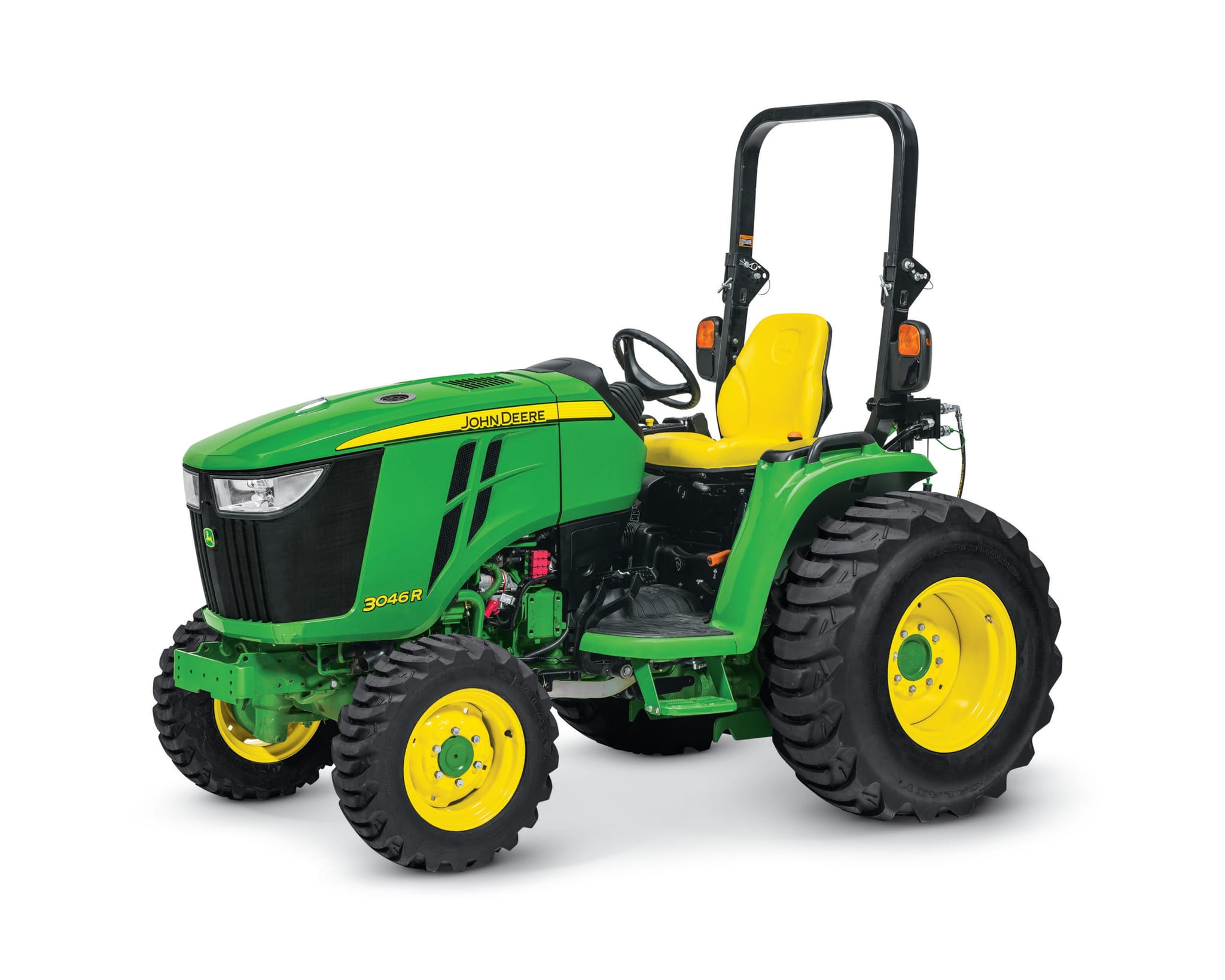

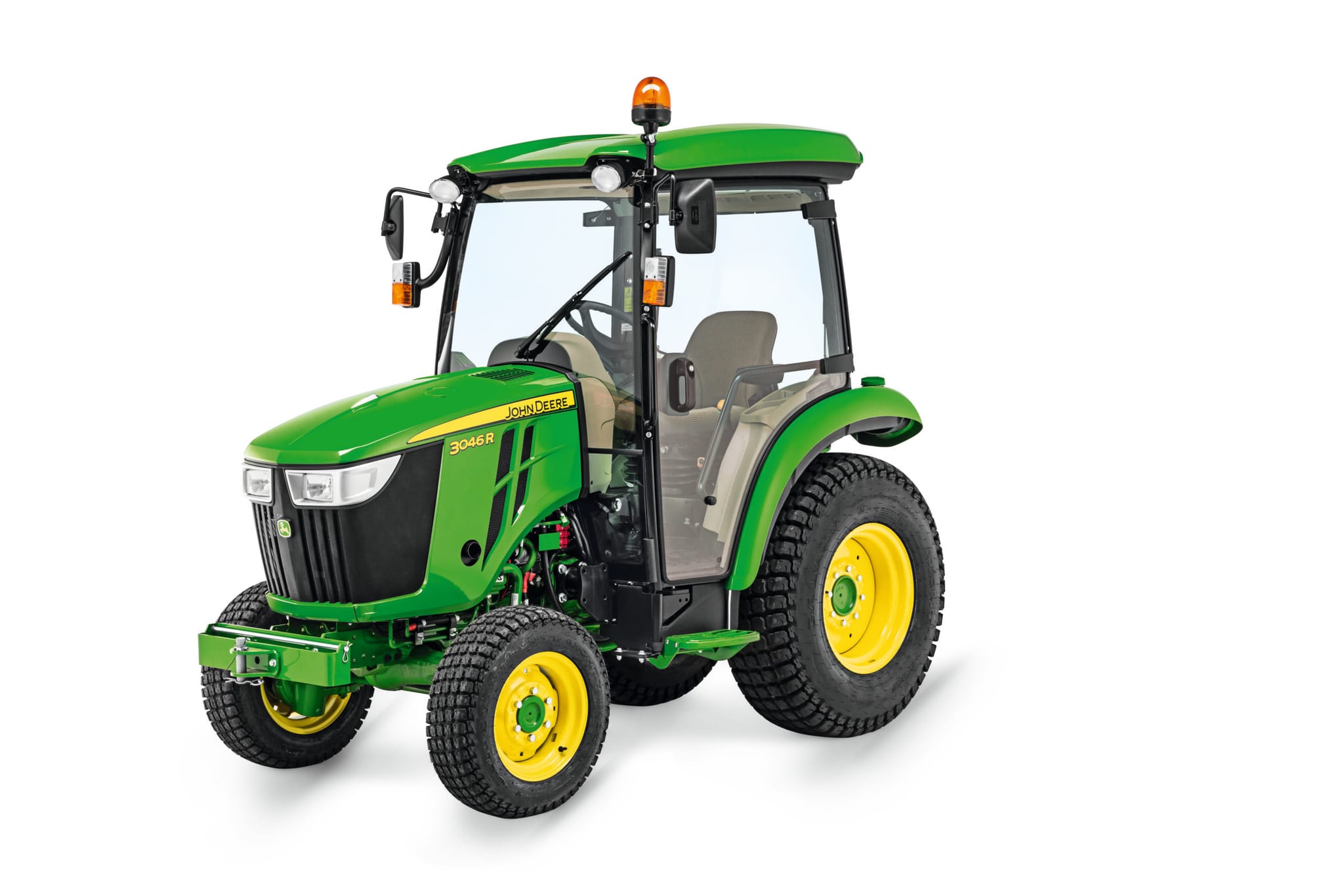

3046R Compact Utility Tractor
Starting at:$39,208.00
WADE Promotion – 0% for 60 months.
Save $1,250 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing will Change as Implements are Added
- AutoConnect™ deck compatible for deck attach/detach in seconds
- Cab or Open Station configuration available
- Standard hydrostatic transmission with Twin Touch™ pedals
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | SAE J1995 rated power: 33.3 kW<br> 44.7 hp<br> 45.3 PS |
| Power take-off (PTO) power | Per SAE J1995: 25.3 kW<br> 33.9 hp |
| Steering hydraulics | 23.5 L/min<br> 6.2 gpm |
| Implement hydraulics | 34.3 L/min<br> 9.1 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 995 kg<br> 2194 lb |
| Standard transmission; forward/reverse | eHydro transmission |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1391 kg<br> 3066 lb<br> Cab: 1818 kg<br> 4008 lb |
| Wheelbase | 1727 mm<br> 68 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV86CHT-MJTV |
| Engine power (gross) | SAE J1995 rated power: 33.3 kW<br> 44.7 hp<br> 45.3 PS |
| Power take-off (PTO) power | Per SAE J1995: 25.3 kW<br> 33.9 hp |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged and intercooled |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.57 L<br> 95.7 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm<br> 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed | 112.3 Nm<br> 90 lb-ft |
| Fuel tank capacity | OOS: 37.4 L<br> 10 U.S. gal.<br> Cab only: 47.6 L<br> 12.6 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 1.4 kW<br> 1.9 hp |
| Type | High pressure common rail direct injection |
| Standard transmission; forward/reverse | eHydro transmission |
| Transmission gear ranges | Three-range, infinitely variable |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Hydrostatic power steering |
| Axle capacity | Front<br> 1450 kg<br> 3197 lb<br> Rear<br> 1850 kg<br> 4079 lb<br> |
| Cruise control | Standard |
| Type | Open center |
| Pump rated output | Steering<br> 23.5 L/min<br> 6.2 gpm<br> Implement<br> 34.3 L/min<br> 9.1 gpm<br> 57.8 L/min<br> 15.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 172 bar<br> 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to six rear remotes |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms | 995 kg<br> 2194 lb |
| Standard | Independent rear: 540 rpm |
| Optional | Mid: 2100 rpm |
| Control | Lever and switch |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 5.7 L<br> 6 qt |
| Transmission and hydraulic system | 26.5 L<br> 7 U.S. gal. |
| Type | Spur gear |
| Rollover protective structure | Type<br> Foldable<br> |
| Platform - flat/straddle | One-piece semi flat |
| Compliance | Complies with OSHA, SAE, and CSA standards for rollover protection |
| Visibility | 360 degree (angle) |
| Doors | Two |
| Noise rating | 80 dBA |
| Seat equipment | Scissor-link |
| Wheelbase | 1727 mm<br> 68 in. |
| Front axle clearance | Minimum: 171 mm<br> 6.7 in.<br> Maximum: 299 mm<br> 11.8 in. |
| Turning radius with brakes | 2.7 m<br> 8.8 ft |
| Turning radius without brakes | 2.8 m<br> 9.2 ft |
| Approximate shipping weight (open-station; cab) | OOS: 1391 kg<br> 3066 lb<br> Cab: 1818 kg<br> 4008 lb |
| Front | R1 Bar: 7-14<br> R3 Turf : 27x8.50-15<br> R3 Turf Special: 25/10.5LLx15<br> R4 Industrial: 25x8.5-14 or 27x8.5-15 |
| Rear | R1 Bar: 11.2-24<br> R3 Turf: 41x14-20<br> R3 Turf Special: 41x18LL-16.1<br> R4 Industrial: 15-19.5 or 43x16-20 |
| Front tread range | 1117 mm<br> 44 in. |
| Rear tread spacing | 1031 mm<br> 40.6 in. |
