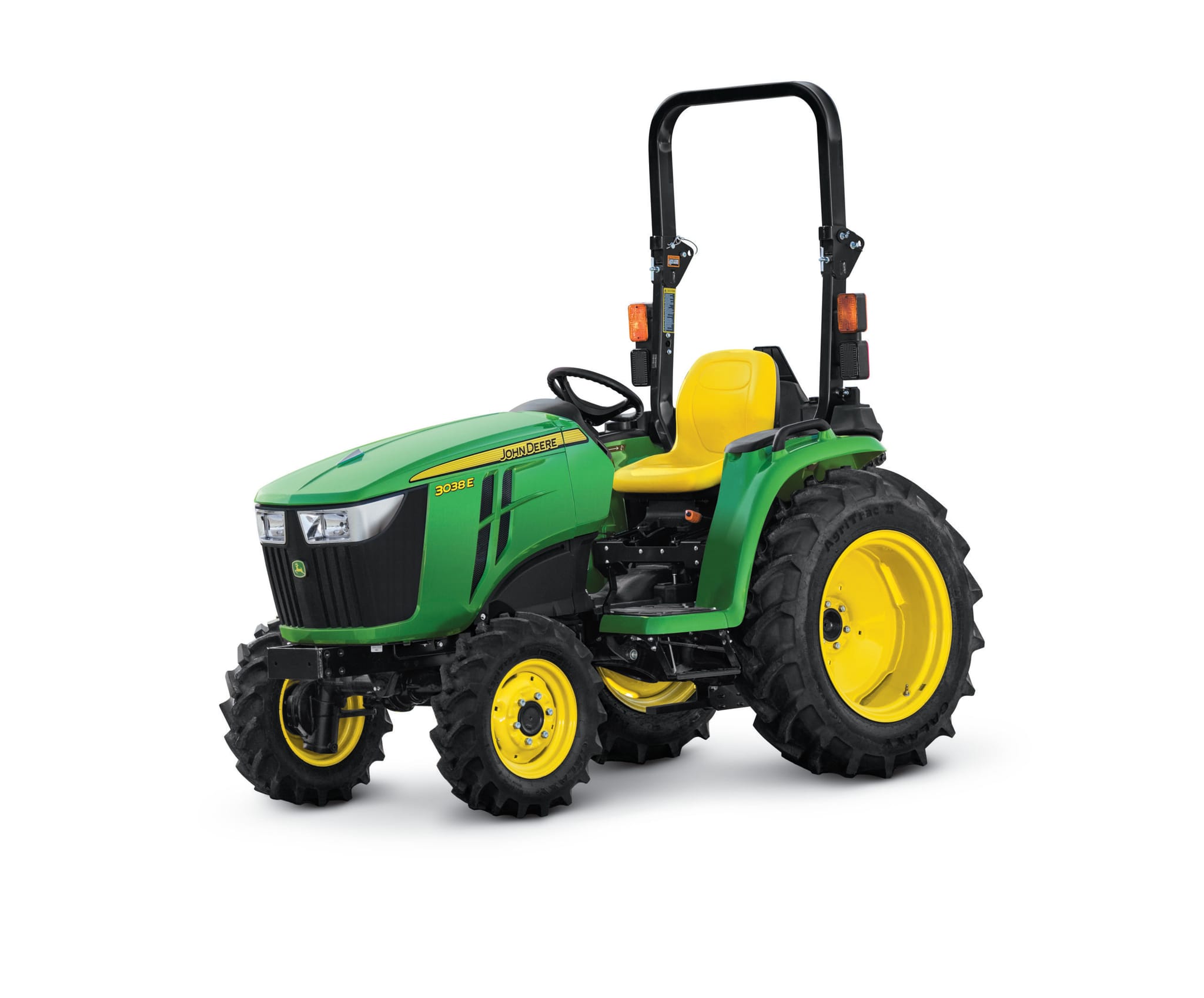

3038E Compact Utility Tractor
Starting at:$27,625.00
WADE Promotion – 0% for 84 months or UP TO $4,500 for cash
Offer expires October 27,2023.
Tractor Only, Pricing Will Change as Implements are Added
- Standard four-wheel drive(4WD) for maximum traction
- Hydro transmission with Twin Touch™ pedals for ease of use
- Category 1 3-pt hitch compatible with dozens of implements
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | 27.4 kW<br> 36.7 hp |
| Power take-off (PTO) power | 22.4 kW<br> 30 hp |
| Steering hydraulics | 15 L/min<br> 4 gpm |
| Implement hydraulics | 20.2 L/min<br> 5.3 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615 kg<br> 1356 lb |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Cruise control | Optional |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1210 kg<br> 2668 lb<br> Cab: Not applicable |
| Wheelbase | 1593 mm<br> 62.7 in. |
| Family | FYDXL1.57TDA<br> EYDXL1.57TDA<br> GYDXL1.57TDA |
| Manufacturer | Yanmar |
| Engine model | 3TNV86CT-NJT2 |
| Engine power (gross) | 27.4 kW<br> 36.7 hp |
| Power take-off (PTO) power | 22.4 kW<br> 30 hp |
| Rated engine speed | 2500 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 3 / 1.57 L<br> 3 / 95.7 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 m<br> 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Water Pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 104.7 Nm<br> 77.2 lb-ft |
| Fuel tank capacity | 28.5 L<br> 7.5 gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 55 amp |
| Starter size | 1.4 kW<br> 1.9 hp |
| Type | High pressure common rail direct injection |
| Fuel consumption | <br> |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Left-hand reverser | No |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Power steering |
| Axle capacity | Front<br> 880 kg<br> 1940 lb<br> Rear<br> 1200 kg<br> 2645 lb<br> |
| Creeper | No |
| Cruise control | Optional |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 15 L/min<br> 4 gpm<br> Implement<br> 20.2 L/min<br> 5.3 gpm<br> 35.2 L/min<br> 9.3 gpm |
| Pump type | Dual gear |
| Maximum operating pressure | 172 bar<br> 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to two (optional) |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615 kg<br> 1356 lb |
| Standard | Rear - 540 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 4.5 L<br> 4.8 qt |
| Transmission and hydraulic system | 20.8 L<br> 22 qt |
| Type | Spur gear |
| Differential lock | Yes |
| Rollover protective structure | Type<br> Foldable<br> |
| Platform - flat/straddle | Straddle |
| Gear shift location - console/floor | Left-hand side |
| Wheelbase | 1593 mm<br> 62.7 in. |
| Front axle clearance | Minimum: 299 mm<br> 11.8 in.<br> Maximum: 333 mm<br> 13.1 in. |
| Turning radius without brakes | 2.9 m<br> 9.4 ft |
| Approximate shipping weight (open-station; cab) | OOS: 1210 kg<br> 2668 lb<br> Cab: Not applicable |
| Front | R1 Bar: 7-14<br> R3 Turf: 27x8.5-15<br> R4 Industrial: 25x8.5-14<br> R4 Industrial: 27x8.5-15 |
| Rear | R1 Bar: 11.2-24<br> R3 Turf: 41x14-20<br> R4 Industrial: 15-19.5<br> R4 Industrial: 43x16-20 |
