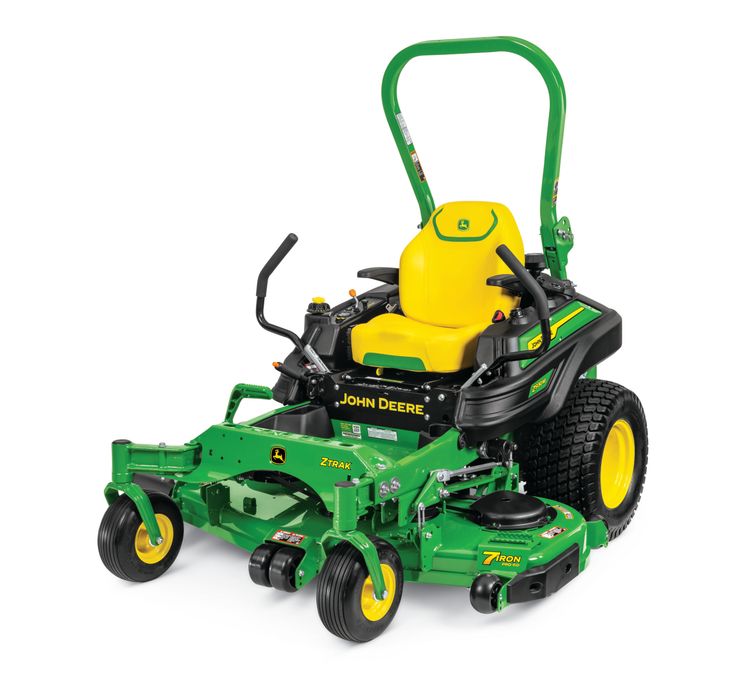

Z994R Diesel ZTrak™ Zero-Turn Mower
- 24.7 hp (18.4 kW) liquid-cooled diesel engine
- ComfortGlide™ Suspension on all seat options
- 11.5 U.S. gallon fuel tank (43.5 L)
- 7-Iron PRO Deck
- Rear Discharge Deck
- Mulch On Demand™ Available
Specifications | |
---|---|
Engine Manufacturer/model | 3TNV80F |
Engine Power | Gross at 3,200 rpm, PS: 24.7 hp<br> 18.4 kW |
Fuel tank capacity | 11.5 U.S. gal.<br> 43.5 L |
Mower deck Size | Side discharge, 54 in.<br> 137 cm<br> Side discharge, 60 in.<br> 152 cm<br> Side discharge, Mulch On Demand™, 60 in.<br> Side discharge, 72 in.<br> 183 cm |
Blade tip speed | Approximately 16,000 fpm<br> 4,877 m/min |
Transmission | Dual hydrostatic wheel drive TuffTorq™ heavy-duty ground drive with cross porting for improved cooling |
Speed range | 0-11.4 mph<br> 0-18.3 km/h |
Drive wheels | 24x12.00-12 4-ply turf, optional 24x12-12 Michelin Tweel™ turf tires |
Caster wheels | 13x5.0-6 flat free |
Warranty | 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months. |
Manufacturer/Model | 3TNV80F |
Power | Gross at 3,200 rpm, PS: 24.7 hp<br> 18.4 kW |
Displacement | 77.3 cu in.<br> 1.27 L |
Cylinders | Three |
Crankcase capacity | 3.6 U.S. qt<br> 3.4 L |
Oil filter | Full flow, replaceable, spin-on type |
Lubrication | Full pressure |
Cooling | Liquid |
Air cleaner | Pre-cleaner<br> Yes<br> Heavy-duty canister, dry type with safety element and air-restriction indicator |
Fuel type | Diesel or Biodiesel (up to B20) |
Fuel tank capacity | 11.5 U.S. gal.<br> 43.5 L |
Fuel tank switch/shut-off valve | Yes |
Charge system | 75 amp |
Battery voltage | 12 V |
Cold cranking amp | At 18 degrees C, 600 amp |
Hour meter | Digital multi-function display |
Operator presence starting system | Standard |
Transmission | Dual hydrostatic wheel drive TuffTorq heavy-duty ground drive with cross porting for improved cooling |
Travel speed | Speed range<br> 0-11.4 mph<br> 0-18.3 km/h<br> Forward<br> 0-11.4 mph<br> 0-18.3 km/h<br> Reverse<br> 0-4.5 mph<br> 0-7.2 km/h<br> |
Speed and direction control | Zero turn |
Hydraulic capacity | 5.9 U.S. gal.<br> 5.6 L |
Hydraulic oil cooler | Fins and fan |
Filter | Internal, replaceable |
Drive wheels | 24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires |
Rear tires | 24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires |
Load rating | 4PR |
Dynamic braking | Twin motion control levers |
Park brake | Internal wet disk integrated in the transmission |
Park brake actuation | Foot brake engagement also brings steering levers to the neutral position |
Type | Electric clutch |
Drive | V-belt |
Size | Side discharge, 54 in.<br> 137 cm<br> Side discharge, 60 in.<br> 152 cm<br> Side discharge, Mulch On Demand, 60 in.<br> Side discharge, 72 in.<br> 183 cm |
Deck construction | One-piece stamped steel with reinforcements |
Deck thickness | 7 gauge<br> 0.18 in.<br> 4.6 mm |
Discharge | Side-discharge, Side-discharge, Mulch On Demand |
Height-of-cut range | Increments<br> 0.25 in.<br> 0.64 cm<br> 1-5.5 in.<br> 2.54-14 cm |
Cutting width | 54, 60, 72 in.<br> 137, 152, 183 cm |
Length | Varies by deck size |
Thickness | 0.25 in.<br> 0.64 cm |
Blade tip speed | Approximately 16,000 fpm<br> 4,877 m/min |
Number | Three |
Caster wheel type | Flat free |
Caster wheels | 13x5.0-6 |
Front anti-scalp rollers | LH, RH, Center |
Rear anti-scalp rollers | Standard |
Length | 88.6 in.<br> 225 cm |
Width | With 54-in. side-discharge mower 68 in.<br> 172.7 cm<br> With 60-in. side-discharge mower 74 in.<br> 188 cm<br> With 60-in. Mulch On Demand side-discharge mower 74 in.<br> With 72-in. side-discharge mower 86 in.<br> 218.4 cm |
Height | With ROPS up 73 in.<br> 185 cm<br> With ROPS down 47 in.<br> 119 cm |
Weight | 54-in. side discharge 1,660 lb<br> 753 kg<br> 60-in. side discharge 1,700 lb<br> 771 kg<br> 60-in. Mulch On Demand 1,720 lb<br> 780 kg<br> 72-in. side discharge 1,760 lb<br> 798 kg |
