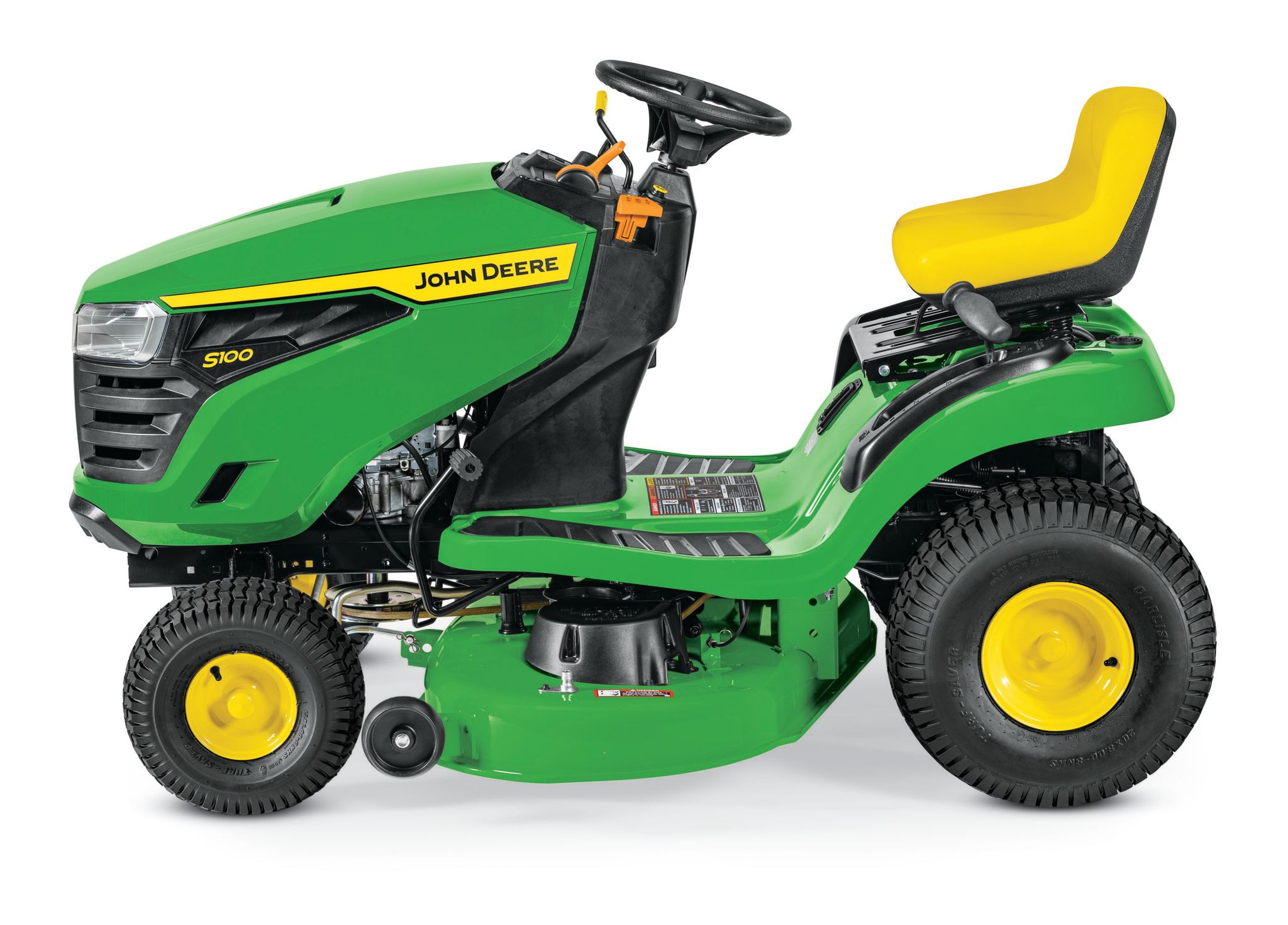

S100 Lawn Tractor
$2,499.00
- 17.5 hp (13 kW)* Engine
- 42-in. Edge™ Mower Deck
- Hydrostatic Transmission w/side-by-side pedals
- Spring-assisted hand grip lever raises and lowers deck easily
- Operator station is wide and comfortable
- 2 year/120 hour bumper-to-bumper warranty
***Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Specifications | |
---|---|
Engine power | 17.5 hp<br> 13 kW |
Oil change | No-tools oil drain with replaceable filter |
Engine manufacturer/model | 31R977 (M31) |
Transaxle type | TLT200 hydrostatic, two-wheel drive |
Transaxle control | Side-by-side pedals |
Rear tires | 20x8-8 |
Lift system type | Spring-assisted hand-grip lever |
Cutting width | Edge™ mower deck, 42 in.<br> 107 cm |
U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Power | 17.5 hp<br> 13 kW |
Displacement | 30.5 cu in.<br> 500 cc |
Manufacturer/model | 31R977 (M31) |
Type | Overhead valve, full-pressure lube, oil filter |
Cylinders | One |
Governor | Mechanical |
Choke/speed control | Single lever with spring-return on choke |
Cooling method | Air |
Air cleaner | Cartridge |
Oil change | No-tools oil drain with replaceable filter |
Type | Gasoline |
Fuel delivery | Pulse pump and carburetor |
Fuel gauge | Mechanical, viewable from seat |
Fuel tank location | Rear |
Fuel fill opening | Center, 1.75 in.<br> 4.45 cm |
Fuel tank capacity | 2.4 U.S. gal.<br> 9.1 L |
Battery | 12 V<br> 300 CCA |
Charging system | Regulated, 8 amp |
Engine starter | Bendix type |
Hourmeter | Yes |
Headlights | Two standard, incandescent |
Taillights or reflector | No |
Backup lights | No |
Rear work lights | No |
12-V outlet | No |
Type | Hydrostatic, 2-wheel drive |
Control | Side-by-side pedals |
Cruise control | No |
Oil cooler | Fins and fan on transaxle |
Oil filter | Yes, not serviceable |
Differential lock | No |
Forward speed | 0-5.5 mph<br> 0-8.9 km/h |
Reverse speed | 0-3.2 mph<br> 0-5.2 km/h |
Brakes | Internal wet disk |
Frame | Full-length welded steel |
Primer/paint | E-coat/powder |
Weight bracket | Optional rear |
Receiver hitch | No |
Front axle | Cast-iron front axle, powdered-metal front wheel bushings |
Spindle bushings | No |
Front tires | 15x6-6 |
Rear tires | 20x8-8 |
Hood material | Molded-in color material reduces sound, will not rust or dent |
Fender deck material | Stamped steel |
Floor mats | Yes, with debris removing channels |
Storage | Storage tray with optional cover |
Service interval decal | Yes |
Fender handles/grips | No |
Cup holder | Yes |
Equipment mounting | CargO Mount™ system |
Type | Sector and pinion with single drag link and tie rod |
Four-wheel steer | Not available on this model |
Steering wheel | Standard, diameter - 12 in.<br> 30.5 cm |
Tilt steering wheel | No |
Turning radius | 18 in.<br> 45.7 cm |
Uncut circle radius | 25 in.<br> 63.5 cm |
Type | One piece |
Seat back height | 11 in.<br> 28 cm |
Armrests | No |
Fore-aft adjustment | While seated, 5.5 in.<br> 14 cm |
Seat suspension | Tilt, two coil springs |
Type | Spring-assisted hand-grip lever |
Hydraulic outlets | No |
Mower cut height | 13 positions, 1-4 in.<br> 2.5-10.2 cm |
Cut height increments | 0.25 in.<br> 0.64 cm |
Preset cut height | No |
Type | Side discharge |
Cutting width | Edge™ mower deck, 42 in.<br> 107 cm |
Construction | Stamped steel deck shell |
Mower deck material | Steel, 13 gauge<br> 0.09 in.<br> 2.3 mm |
Mower wash port | Yes |
Mower drive system | Manual power take-off (PTO) |
Mower wheels | Two |
Mower wheel adjustment | One bolt |
Mower level adjustment | Easy-level deck |
Type | Slide under tractor |
Front draft arms | One spring clip |
Rear draft arms | Two spring clips |
Mower wheels rotate | No |
Drive system | Single belt |
Meets ANSI standard | Yes |
