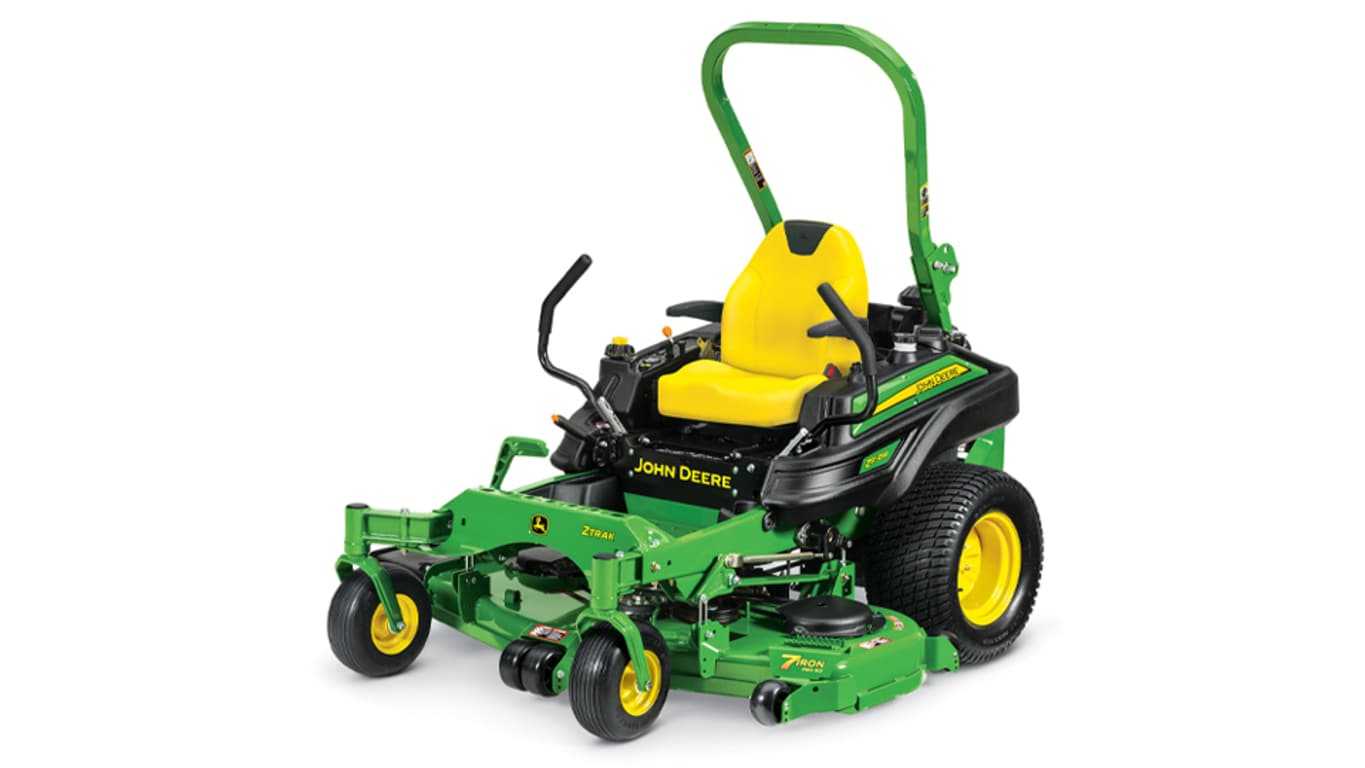

Z950M ZTrak™ Zero-Turn Mower
- 7-Iron™ PRO Mowing Deck
- Propane Option Available
- Gasoline Engine
- Rear Discharge Deck
| Specifications | |
|---|---|
| Engine Manufacturer/model | FX850V |
| Engine Power | Gross at 3,600 rpm: 27 hp<br> 20.1 kW |
| Fuel tank capacity | 11.5 U.S. gal.<br> 43.5 L |
| Mower deck Size | 60, 72 in.<br> 152, 183 cm |
| Blade tip speed | Approximately 18,000 fpm<br> 4,486 m/min |
| Transmission | Hydrostatic |
| Speed range | 0-10 mph<br> 0-16.1 km/h |
| Drive wheels | 24x12-12 |
| Caster wheels | 13x6.5-6 |
| Warranty | 36 months or 1200 hours, whichever comes first<br> First 24 months, no hour limitation |
| Manufacturer/Model | FX850V |
| Power | Gross at 3,600 rpm: 27 hp<br> 20.1 kW |
| Displacement | 52 cu in.<br> 852 cc |
| Cylinders | Two |
| Crankcase capacity | With filter, 2 U.S. qt<br> 1.9 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Air |
| Air cleaner | Pre-cleaner<br> Yes<br> Heavy-duty canister type with safety element |
| Fuel type | Gasoline |
| Fuel consumption | Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr<br> 4.2-7.2 L/hr |
| Fuel tank capacity | 11.5 U.S. gal.<br> 43.5 L |
| Fuel tank switch/shut-off valve | Yes |
| Charge system | 20 amp |
| Battery voltage | 12 V |
| Cold cranking amp | 300 amp |
| Hour meter | Standard, digital |
| Operator presence starting system | Brake-N-Go (hand) |
| Transmission | Hydrostatic |
| Wheel motors | Tuff Torq heavy-duty integrated piston wheel motor |
| Travel speed | Speed range<br> 0-10 mph<br> 0-16.1 km/h<br> Forward<br> 0-10 mph<br> 0-16.1 km/h<br> Reverse<br> 0-4.5 mph<br> 0-7.2 km/h<br> |
| Speed and direction control | Twin levers |
| Hydraulic capacity | 5.9 U.S. qt<br> 5.6 L |
| Filter | Internal, replaceable |
| Drive wheels | 24x12-12 |
| Load rating | 4 PR |
| Dynamic braking | Twin levers |
| Park brake | Internal wet disk integrated in the transmission |
| Park brake actuation | Hand brake |
| Type | Electro-magnetic, 225 lb-ft<br> 305 Nm |
| Drive | V-belt |
| Size | 60, 72 in.<br> 152, 183 cm |
| Deck construction | 7-Iron PRO, one-piece stamped steel with reinforcements |
| Deck thickness | 7 gauge<br> 0.18 in.<br> 4.6 mm |
| Discharge | Side, MOD |
| Height-of-cut range | Increments<br> 0.25 in.<br> 0.64 cm<br> 1-5.5 in.<br> 2.54-14 cm |
| Cutting width | 60, 72 in.<br> 152, 183 cm |
| Length | Varies by deck size |
| Thickness | 0.25 in.<br> 0.64 cm |
| Blade tip speed | Approximately 18,000 fpm<br> 5,486 m/min |
| Number | Three |
| Caster wheel type | Flat free |
| Caster wheels | 13x6.5-6 |
| Front anti-scalp rollers | RH, center, LH |
| Rear anti-scalp rollers | Optional |
| Length | 84 in.<br> 213 cm |
| Width | With chute down, 74, 86 in.<br> 188, 218 cm |
| Height | With ROPS up, 73 in.<br> 185 cm<br> With ROPS down, 47 in.<br> 119 cm |
| Weight | 1,275 to1,365 lb<br> 578 to 619 kg |
