MyDealer

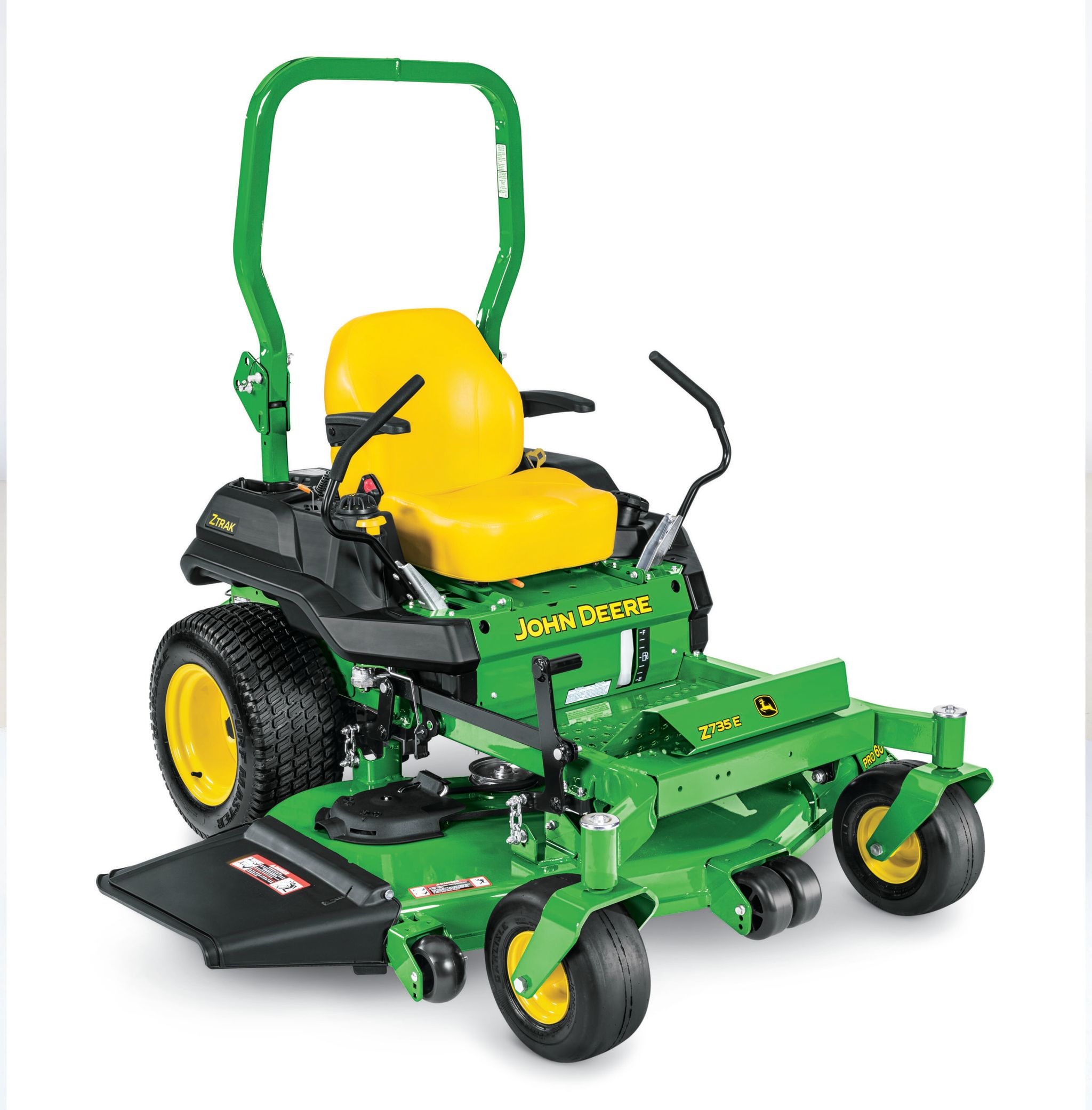

John Deere Z735E

Z735E ZTrak™ Zero Turn Mower with 60-in.deck

$9,119.00

  • 25-hp (18.6 kW)*, 810 cc engine
  • 60-in. High-capacity PRO mower deck with welded deck reinforcements
  • 21-in. seat with adjustable springs for extra comfort
  • Adjustable, 3-position foot platform

** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.

Specifications
[Key Specs] Engine power25 hp<br>18.6 kW
[Key Specs] Engine model numberM49 810CC SSC
[Key Specs] Forward speed0-8 mph<br>0-12.8 km/h
[Key Specs] Front caster tires13x6.5-6
[Key Specs] Drive tires23X10.5-12 (60-in. decks)
[Key Specs] Seat back heightHigh back with adjustable armrests, 21 in.<br>53 cm
[Key Specs] Width of cut60 in.<br>152 cm
[Key Specs] Mulching systemOptional MulchControl™ attachment
[Key Specs] U.S. warranty4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
[Engine] Power25 hp<br>18.6 kW
[Engine] Model numberM49 810CC SSC
[Engine] Displacement49.4 cu in.<br>810 cc
[Engine] CylindersV-twin
[Engine] LubricationFull pressure with replaceable filter, capacity, 2 U.S. qt<br>1.9 L
[Engine] TypeOverhead valve
[Engine] Battery12 V<br>340 CCA
[Engine] Choke/speed controlSeparate control levers
[Engine] Cooling methodAir
[Engine] Fuel tank capacity8 U.S. gal.<br>30.2 L
[Engine] Fuel gaugeFuel level sight line
[Drive train] Dual hydrosHydro-gear ZT3100 with 1-in. (2.54-cm) axles
[Travel speed] Forward speed0-8 mph<br>0-12.8 km/h
[Travel speed] Reverse speed0-4 mph<br>0-6.4 km/h
[Travel speed] Speed and direction controlTwin standard levers
[Travel speed] Control adjustment2-height/18 positions
[Chassis] FrameHeavy-duty frame tubing
[Chassis] Primer/paintE-coat/powder
[Chassis] Front caster tires13x6.5-6
[Chassis] Front caster bearingsSealed ball bearings
[Chassis] Drive tires23X10.5-12 (60-in. decks)
[Chassis] HourmeterYes
[Chassis] Service interval decalYes
[Chassis] Storage compartmentYes
[Chassis] Cup holderYes
[Seat] Seat back heightHigh back with adjustable armrests, 21 in.<br>53 cm
[Seat] Fore-aft adjustmentWhile seated, 4 in.<br>10.2 cm
[Seat] Seat suspensionTwo four-position springs
[Lift system] TypeSpring assisted foot lift
[Lift system] Mower cut height1.5-5 in.<br>3.8-12.7 cm
[Lift system] Cut height increments0.25 in.<br>0.64 cm
[Lift system] Preset cut heightYes
[Mower deck] Width of cut60 in.<br>152 cm
[Mower deck] TypeHigh-capacity (HC) PRO side discharge
[Mower deck] Mower deck material9 gauge<br>0.15 in.<br>3.8 mm
[Mower deck] Mower drive systemV-belt
[PTO] TypeElectric, 125 lb-ft<br>169 Nm
[PTO] DriveV-belt
[Dimensions] Wheelbase49.9 in.<br>126.7 cm
[Dimensions] Overall length80.6 in.<br>204.6 cm
[Dimensions] Width without mower50.6 in.<br>128.4 cm
[Dimensions] Width with mower60 HC, 73.3 in.<br>186.1 cm
[Dimensions] Width with mower (deflector raised for storage)60 HC, 64.8 in.<br>164.5 cm
[Dimensions] HeightROPS up - 71.1 in.<br>182.2 cm<br>ROPS down - 47.4 in.<br>120.3 cm
[Dimensions] WeightWith mower and fuel, 60 HC, 990 lb<br>449 kg
[Safety] Operator presence systemYes
[Safety] Park brake interlockYes
[Safety] Safety videoYes
[Buyer's notes] Note 1Flip-up and adjustable foot platform for easy service access
[Buyer's notes] U.S. warranty4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
[Optional attachments] Mulching systemOptional MulchControl attachment
[Optional attachments] Rubber floor matOptional
[Optional attachments] Light kitLED - fender mounted
[Optional attachments] Material collection system60 HC PRO Power Flow™ rear bagger, 6.5 bu<br>229.1 L

Similar Products

John Deere Z740R

Z740R ZTrak™ Zero Turn Mower with 54-in. HC PRO deck

$11,249.00
23.5-hp (17.5 kW)* FX series engine 48-, 54-, or 60-in. High-capacity...
John Deere Z740R

Z740R ZTrak™ Zero Turn Mower with 48-in. HC PRO deck

$10,919.00
23.5-hp (17.5 kW)* FX series engine 48-, 54-, or 60-in. High-capacity...

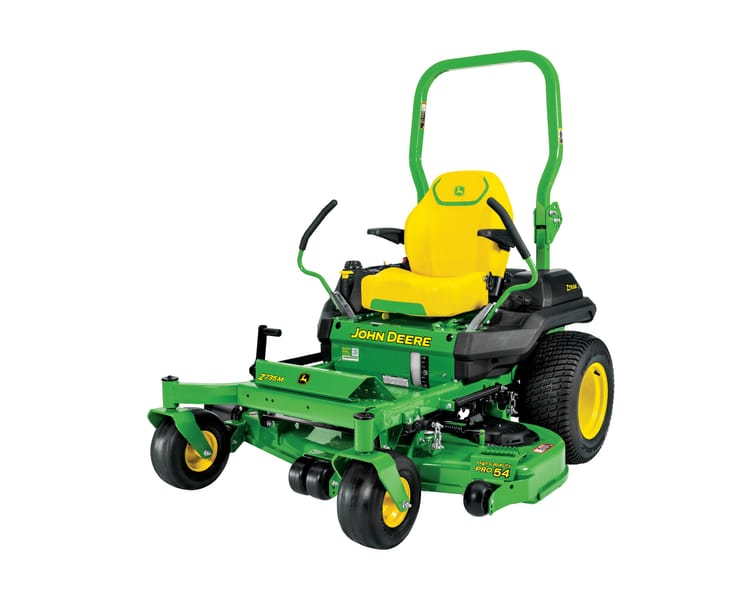

John Deere Z735M

Z735M ZTrak™ Zero Turn Mower with 54-in. deck

$9,739.00
25-hp (18.6 kW)*, 810 cc engine 48-, 54-, or 60-in. High-capacity PRO...
John Deere Z735M

Z735M ZTrak™ Zero Turn Mower with 48-in. deck

$9,209.00
25-hp (18.6 kW)*, 810 cc engine 48-, 54-, or 60-in. High-capacity PRO...

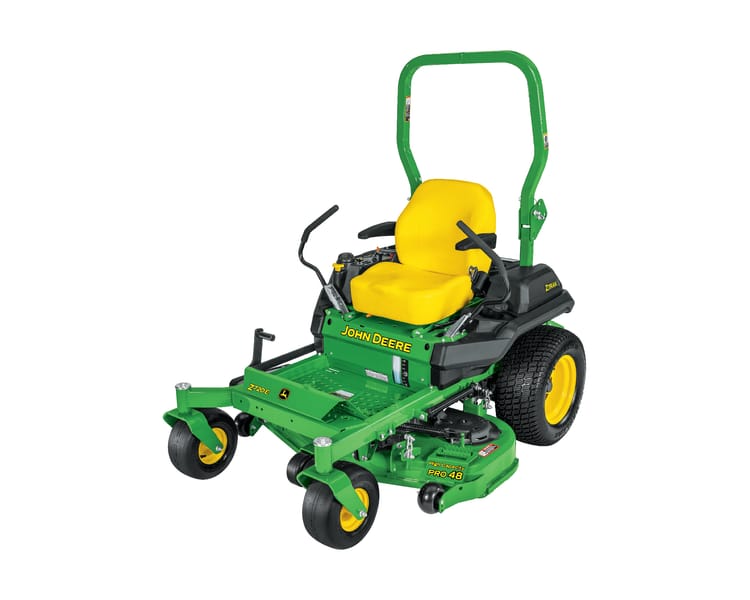

John Deere Z720E
