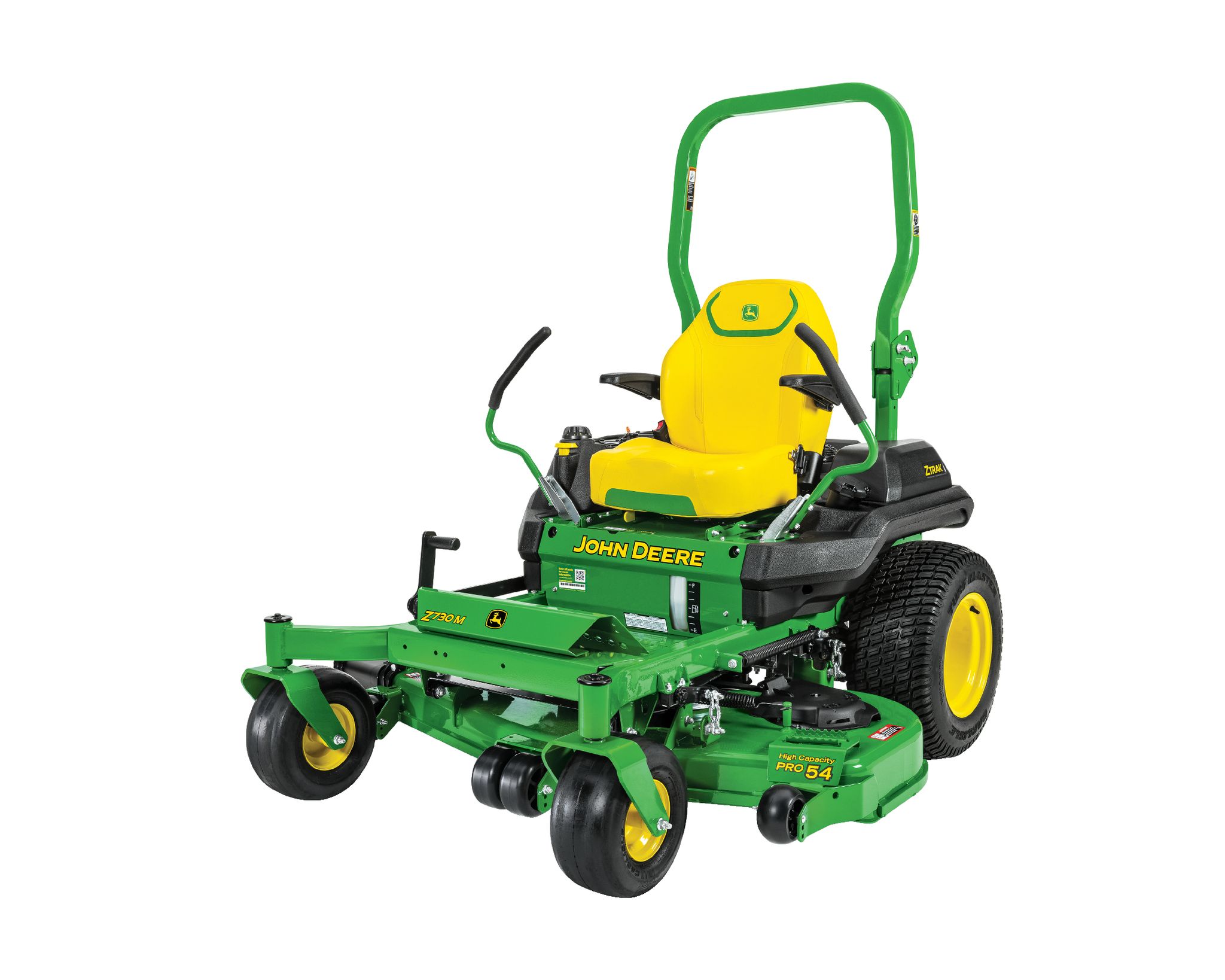

Z730M ZTrak™ Zero Turn Mower with 54-in. deck
$9,929.00
- 24-hp (17.9 kW)* FS series engine
- 54- or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension
- Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 – 5 inches
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
| Specifications | |
|---|---|
| Engine power | 24 hp<br> 17.9 kW |
| Engine model number | FS730V |
| Forward speed | 0-9.5 mph<br> 0-15.3 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 23X10.5-12 (54- and 60-in. decks) |
| Seat back height | High back with adjustable armrests, 22.5 in.<br> 57.1 cm |
| Width of cut | 54 in.<br> 137 cm<br> 60 in.<br> 152 cm |
| Mulching system | Optional MulchControl™ attachment |
| U.S. warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 24 hp<br> 17.9 kW |
| Model number | FS730V |
| Displacement | 44.3 cu in.<br> 726 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt<br> 1.9 L |
| Type | Overhead valve |
| Battery | 12 V<br> 340 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 8 U.S. gal.<br> 30.2 L |
| Fuel gauge | Fuel level sight line |
| Dual hydros | Hydro-gear ZT3200 with 1-in. (2.54-cm) axles |
| Forward speed | 0-9.5 mph<br> 0-15.3 km/h |
| Reverse speed | 0-4 mph<br> 0-6.4 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/18 positions |
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x6.5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires | 23X10.5-12 (54- and 60-in. decks) |
| Hourmeter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
| Seat back height | High back with adjustable armrests, 22.5 in.<br> 57.1 cm |
| Fore-aft adjustment | While seated, +/- 2 in.<br> 5.08 cm |
| Seat suspension | Two four-position springs with ComfortGlide™ fore/aft suspension |
| Type | Spring assisted foot lift |
| Mower cut height | 1.5-5 in.<br> 3.8-12.7 cm |
| Cut height increments | 0.25 in.<br> 0.64 cm |
| Preset cut height | Yes |
| Width of cut | 54 in.<br> 137 cm<br> 60 in.<br> 152 cm |
| Type | High-capacity (HC) PRO side discharge |
| Mower deck material | 9 gauge<br> 0.15 in.<br> 3.8 mm |
| Mower drive system | V-belt |
| Type | Electric, 125 lb-ft<br> 169 Nm |
| Drive | V-belt |
| Wheelbase | 49.9 in.<br> 126.7 cm |
| Overall length | 82 in.<br> 208.4 cm |
| Width without mower | 50.6 in.<br> 128.4 cm |
| Width with mower | 54 HC, 68.2 in.<br> 173.2 cm<br> 60 HC, 73.3 in.<br> 186.1 cm |
| Width with mower (deflector raised for storage) | 54 HC, 59.4 in.<br> 151 cm<br> 60 HC, 64.8 in.<br> 164.5 cm |
| Height | ROPS up - 71.1 in.<br> 182.2 cm<br> ROPS down - 49.7 in.<br> 126.2 cm |
| Weight | With mower and fuel, 54 HC, 965 lb<br> 437 kg<br> With mower and fuel, 60 HC, 995 lb<br> 451 kg |
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Safety video | Yes |
| Note 1 | Flip-up and adjustable foot platform for easy service access |
| U.S. warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mulching system | Optional MulchControl attachment |
| Rubber floor mat | Optional |
| Light kit | LED - fender mounted |
| Material collection system | 54 HC PRO and 60 HC PRO Power Flow™ rear bagger, 6.5 bu<br> 229.1 L |
