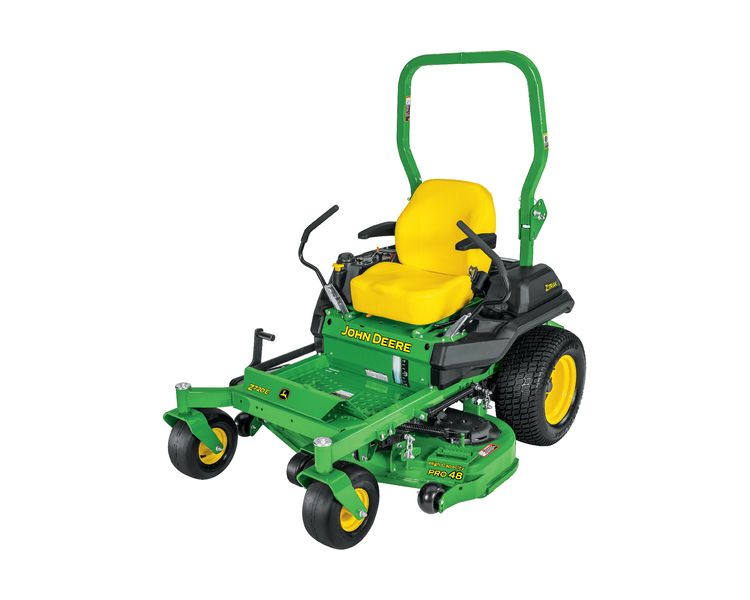

Z720E ZTrak™ Zero Turn Mower with 48-in. deck

$8,279.00

23-hp (17.2 kW)* FR series engine
48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
21-in. seat with adjustable springs for extra comfort
Adjustable, 3-position foot platform

** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.

Specifications
Engine power	23 hp<br> 17.2 kW
Engine model number	FR691V
Forward speed	0-8 mph<br> 0-12.8 km/h
Front caster tires	13x6.5-6
Drive tires	23x9.5-12 (48-in. decks)<br> 23X10.5-12 (54- and 60-in. decks)
Seat back height	High back with adjustable armrests, 21 in.<br> 53 cm
Width of cut	48 in.<br> 122 cm<br> 54 in.<br> 137 cm<br> 60 in.<br> 152 cm
Mulching system	Optional MulchControl™ attachment
U.S. warranty	4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Power	23 hp<br> 17.2 kW
Model number	FR691V
Displacement	44.3 cu in.<br> 726 cc
Cylinders	V-twin
Lubrication	Full pressure with replaceable filter, capacity, 2 U.S. qt<br> 1.9 L
Type	Overhead valve
Battery	12 V<br> 340 CCA
Choke/speed control	Separate control levers
Cooling method	Air
Fuel tank capacity	8 U.S. gal.<br> 30.2 L
Fuel gauge	Fuel level sight line
Dual hydros	Hydro-gear ZT3100 with 1-in. (2.54-cm) axles
Forward speed	0-8 mph<br> 0-12.8 km/h
Reverse speed	0-4 mph<br> 0-6.4 km/h
Speed and direction control	Twin standard levers
Control adjustment	2-height/18 positions
Frame	Heavy-duty frame tubing
Primer/paint	E-coat/powder
Front caster tires	13x6.5-6
Front caster bearings	Sealed ball bearings
Drive tires	23x9.5-12 (48-in. decks)<br> 23X10.5-12 (54- and 60-in. decks)
Hourmeter	Yes
Service interval decal	Yes
Storage compartment	Yes
Cup holder	Yes
Seat back height	High back with adjustable armrests, 21 in.<br> 53 cm
Fore-aft adjustment	While seated, 4 in.<br> 10.2 cm
Seat suspension	Two four-position springs
Type	Spring assisted foot lift
Mower cut height	1.5-5 in.<br> 3.8-12.7 cm
Cut height increments	0.25 in.<br> 0.64 cm
Preset cut height	Yes
Width of cut	48 in.<br> 122 cm<br> 54 in.<br> 137 cm<br> 60 in.<br> 152 cm
Type	High-capacity (HC) PRO side discharge
Mower deck material	9 gauge<br> 0.15 in.<br> 3.8 mm
Mower drive system	V-belt
Type	Electric, 125 lb-ft<br> 169 Nm
Drive	V-belt
Wheelbase	49.9 in.<br> 126.7 cm
Overall length	80.6 in.<br> 204.6 cm
Width without mower	48.6 in.<br> 123.5 cm
Width with mower	48 HC, 62.3 in.<br> 158.2 cm<br> 54 HC, 68.2 in.<br> 173.2 cm<br> 60 HC, 73.3 in.<br> 186.1 cm
Width with mower (deflector raised for storage)	48 HC, 53.2 in.<br> 135.1 cm<br> 54 HC, 59.4 in.<br> 151 cm<br> 60 HC, 64.8 in.<br> 164.5 cm
Height	ROPS up - 71.1 in.<br> 182.2 cm<br> ROPS down - 47.4 in.<br> 120.3 cm
Weight	With mower and fuel, 48 HC, 950 lb<br> 431 kg<br> With mower and fuel, 54 HC, 965 lb<br> 437 kg<br> With mower and fuel, 60 HC, 995 lb<br> 451 kg
Operator presence system	Yes
Park brake interlock	Yes
Safety video	Yes
Note 1	Flip-up and adjustable foot platform for easy service access
U.S. warranty	4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Mulching system	Optional MulchControl attachment
Rubber floor mat	Optional
Light kit	LED - fender mounted
Material collection system	48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu<br> 229.1 L
