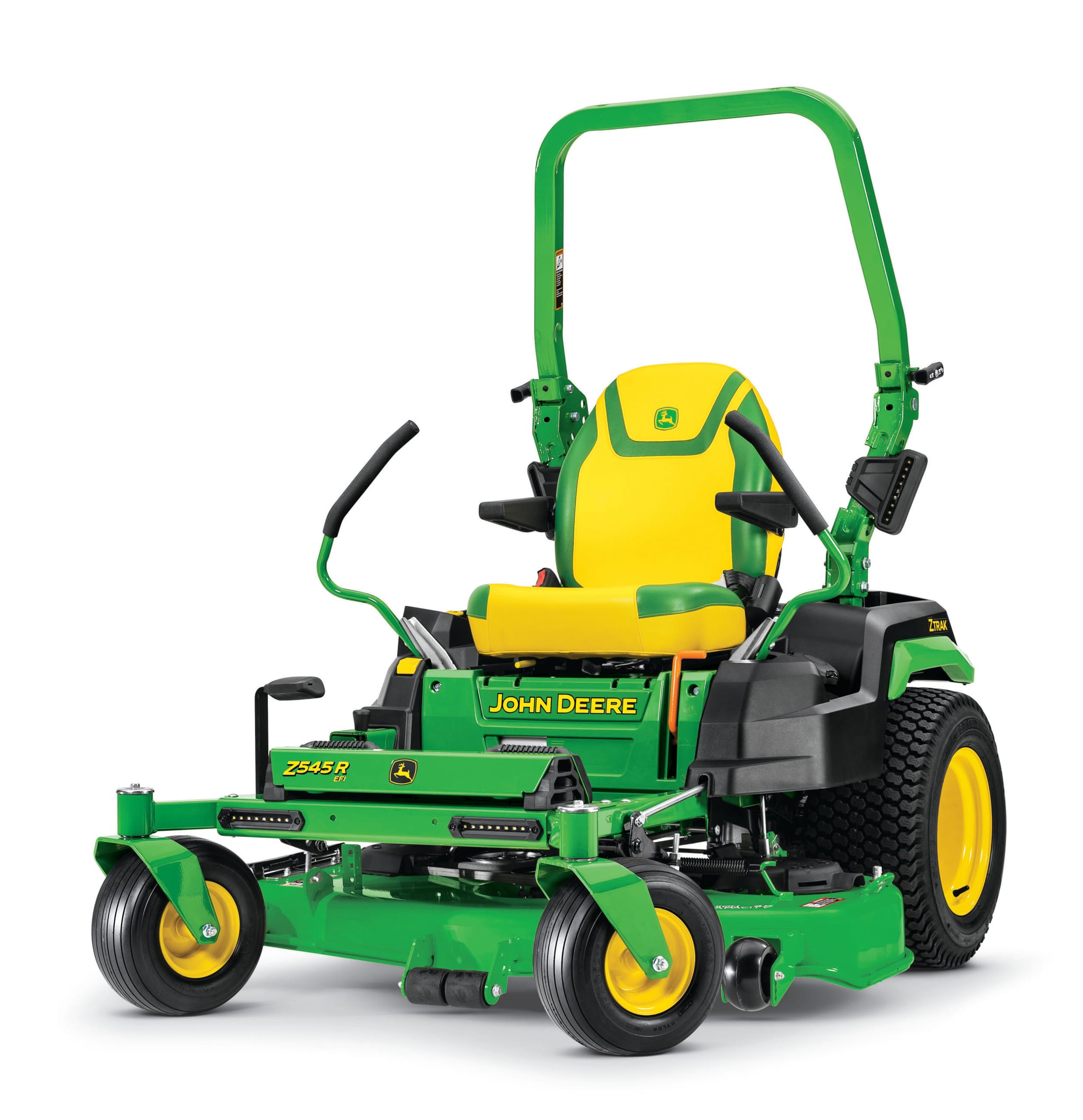

Z545R ZTrak™ Mower with 48-in. Deck

$6,799.00

25 hp* (18.6 kW) EFI engine with Electronic Throttle Control
48-in (122 cm) High Capacity mower deck, compatible with optional MulchControl™ kit
22.5-in seat with armrests and ComfortGlide™ suspension
Folding Rollover Protective Structure (ROPS)
Rubber floor mats, toe board mat, foot lift, premium control levers, LED lights, and rear hitch come standard
4-year/500-hour bumper-to-bumper warranty

** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.

Specifications
[Key Specs] Engine power	25 hp<br>18.6 kW
[Key Specs] Engine model number	HTR EFI/ETC
[Key Specs] Forward speed	0-9 mph<br>0-14.5 km/h
[Key Specs] Front caster tires	13x6.5-6
[Key Specs] Drive tires	23x10.5-12
[Key Specs] Seat back height	High back with armrests and ComfortGlide™, 22.5 in.<br>57.1 cm
[Key Specs] Width of cut	High capacity mower deck, 48 in.<br>122 cm<br>High capacity mower deck, 54 in.<br>137 cm<br>High capacity mower deck, 60 in.<br>152 cm
[Key Specs] Mulching system	Optional MulchControl™ attachment, 48 in.<br>122 cm<br>Optional MulchControl attachment, 54 in.<br>137 cm<br>Optional MulchControl kit, 60 in.<br>152 cm
[Key Specs] U.S. warranty	4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
[Engine] Power	25 hp<br>18.6 kW
[Engine] Model number	HTR EFI/ETC
[Engine] Displacement	44.2 cu in.<br>724 cc
[Engine] Cylinders	V-twin
[Engine] Lubrication	Full pressure with replaceable filter, capacity, 2 U.S. qt<br>1.9 L
[Engine] Type	Overhead valve
[Engine] Battery	12 V<br>300 CCA
[Engine] Choke/speed control	Separate control levers
[Engine] Cooling method	Air
[Engine] Fuel tank capacity	4.5 U.S. gal.<br>17 L
[Engine] Fuel gauge	Electric gauge and fuel level sight line
[Drive train] Dual hydros	Tuff Torq TZT7-M with 1-in. (2.5-cm) axles
[Travel speed] Forward speed	0-9 mph<br>0-14.5 km/h
[Travel speed] Reverse speed	0-4.5 mph<br>0-7.2 km/h
[Travel speed] Speed and direction control	Twin premium levers
[Travel speed] Control adjustment	2-height/9-fore-aft, 18 positions
[Chassis] Frame	Heavy-duty frame tubing
[Chassis] Primer/paint	E-coat/powder
[Chassis] Front caster tires	13x6.5-6
[Chassis] Front caster bearings	Sealed ball bearings
[Chassis] Drive tires	23x10.5-12
[Chassis] Hourmeter	Yes
[Chassis] Service interval decal	Yes
[Chassis] Storage compartment	Yes and covered
[Chassis] Cup holder	Yes
[Seat] Seat back height	High back with armrests and ComfortGlide, 22.5 in.<br>57.1 cm
[Seat] Fore-aft adjustment	While seated, 3 in.<br>7.6 cm
[Seat] Seat suspension	Two springs and ComfortGlide
[Lift system] Type	Foot lift
[Lift system] Mower cut height	1-4 in.<br>2.5-10.2 cm
[Lift system] Cut height increments	0.25 in.<br>0.64 cm
[Lift system] Preset cut height	Yes
[Mower deck] Width of cut	High capacity mower deck, 48 in.<br>122 cm<br>High capacity mower deck, 54 in.<br>137 cm<br>High capacity mower deck, 60 in.<br>152 cm
[Mower deck] Type	High-capacity side discharge
[Mower deck] Mower deck material	9 gauge<br>0.15 in.<br>3.8 mm
[Mower deck] Mower drive system	V-belt
[PTO] Type	Electric, 125 lb-ft<br>169.5 Nm
[PTO] Drive	V-belt
[Dimensions] Wheelbase	49.2 in.<br>125 cm
[Dimensions] Overall length	81.9 in.<br>208 cm
[Dimensions] Width without mower	48.7 in.<br>123.7 cm
[Dimensions] Width with mower	48HC - 62.4 in.<br>158.5 cm<br>54HC - 68.3 in.<br>173.5 cm<br>60HC - 73.5 in.<br>186.7 cm
[Dimensions] Width with mower (deflector raised for storage)	48HC - 53.6 in.<br>136.1 cm<br>54HC - 59.6 in.<br>151 cm<br>60HC - 65.6 in.<br>167 cm
[Dimensions] Height	48.3 in.<br>122.8 cm<br>With rollover protective structure (ROPS) up position - 70.7 in.<br>179.6 cm
[Dimensions] Weight	With mower and fuel, 48HC, 826 lb<br>375 kg<br>With mower and fuel, 54HC, 832 lb<br>378 kg<br>With mower and fuel, 60HC, 840 lb<br>382 kg
[Operation] Rollover protective structure (ROPS)	Yes
[Operation] Slope operating limit	15 degrees, 10 degrees with an MCS
[Operation] Operator presence system	Yes
[Operation] Park brake interlock	Yes
[Operation] Operator video	Yes
[Buyer's notes] Note 1	Mower wash port makes cleaning the deck easier
[Buyer's notes] Note 2	Flip-up foot platform for easy service access
[Buyer's notes] Note 3	18-position adjustable motion-control levers
[Buyer's notes] U.S. warranty	4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
[Optional attachments] Mulching system	Optional MulchControl attachment, 54 in.<br>137 cm<br>Optional MulchControl kit, 60 in.<br>152 cm
[Optional attachments] Rubber floor mat	Foot platform and toe board
[Optional attachments] Sun shade	Optional
[Optional attachments] Mounted sprayer	No
[Optional attachments] Storage cover	Yes
[Optional attachments] Light kit	4-point LED Light kit
[Optional attachments] Material collection system	Power Flow rear bagger, 6.5 bu<br>230 L<br>Not available on 60HC

View Product Brochure

Z545R ZTrak™ Mower with 48-in. Deck

$6,799.00

Comfortable ride delivered by an operator station with premium controls and ComfortGlide™ suspension

Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls

Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks

Quick starts and top performance from 44.2-cu in. (724-cc) V-twin engine with electronic fuel injection (EFI) and electronic throttle control (ETC)

Protective zone around the operator is provided by the rollover protective structure (ROPS)

Great looks, reliability, and performance delivered by a heavy-duty design with extra appearance features
