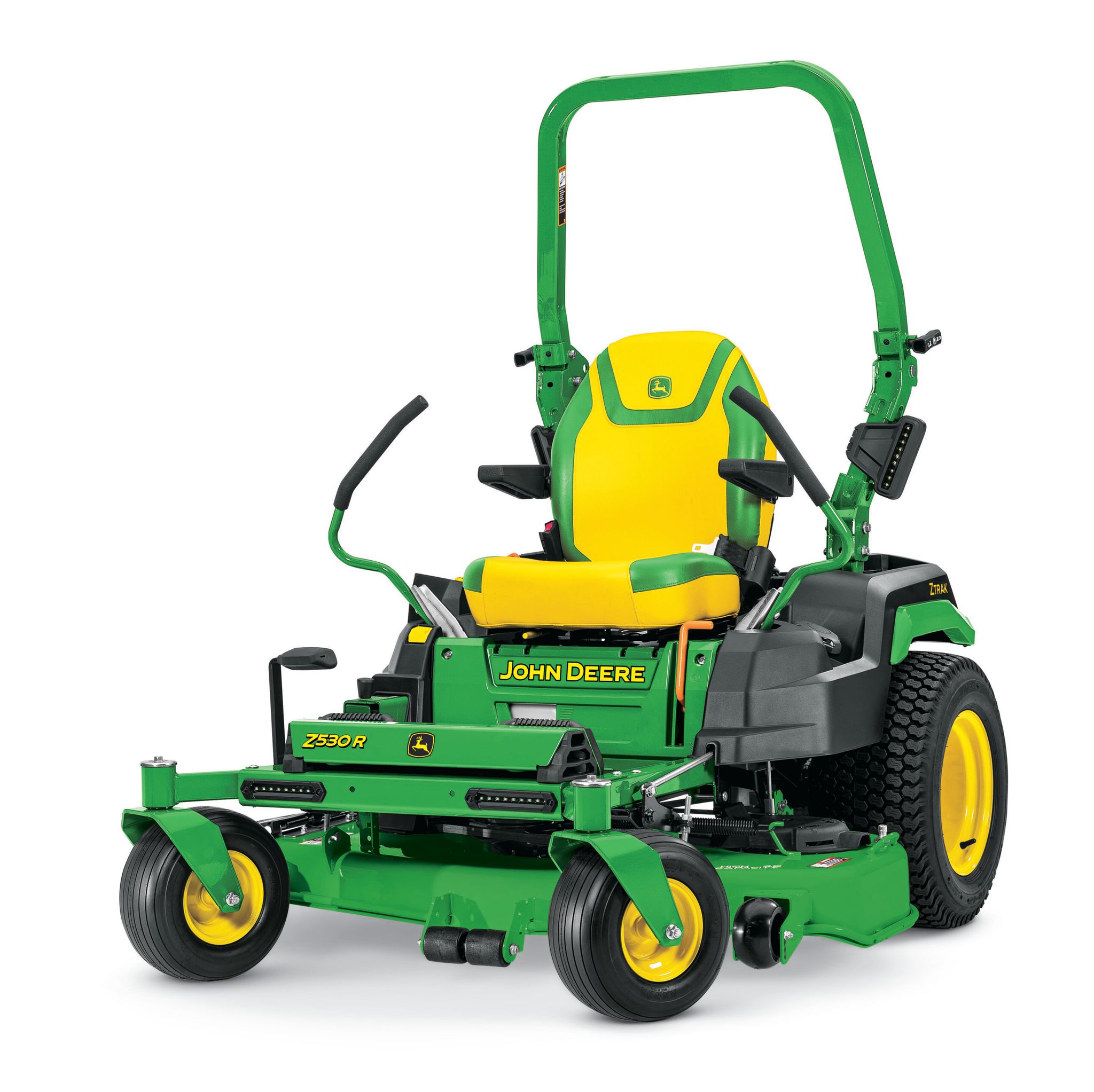

Z530R ZTrak™ Mower with 54-in. Deck

John Deere

Z740R

Z740R ZTrak™ Zero Turn Mower with 54-in. HC PRO deck

<ul>
<li>23.5-hp (17.5 kW)* FX series engine</li>
<li>48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements</li>
<li>24-in. seat with fully adjustable mechanical suspension</li>
<li>Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 &#8211; 5 inches</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


Z740R ZTrak™ Zero Turn Mower with 48-in. HC PRO deck

Z735M

Z735M ZTrak™ Zero Turn Mower with 54-in. deck

<ul>
<li>25-hp (18.6 kW)*, 810 cc engine</li>
<li>48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements</li>
<li>22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension</li>
<li>Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 &#8211; 5 inches</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


Z735M ZTrak™ Zero Turn Mower with 48-in. deck

Z720E

Z720E ZTrak™ Zero Turn Mower with 48-in. deck

<ul>
<li>23-hp (17.2 kW)* FR series engine</li>
<li>48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements</li>
<li>21-in. seat with adjustable springs for extra comfort</li>
<li>Adjustable, 3-position foot platform</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


Z720E ZTrak™ Zero Turn Mower with 54-in. deck

Z730M

Z730M ZTrak™ Zero Turn Mower with 54-in. deck

<ul>
<li>24-hp (17.9 kW)* FS series engine</li>
<li>54- or 60-in. High-capacity PRO mower deck with welded deck reinforcements</li>
<li>22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension</li>
<li>Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 &#8211; 5 inches</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>

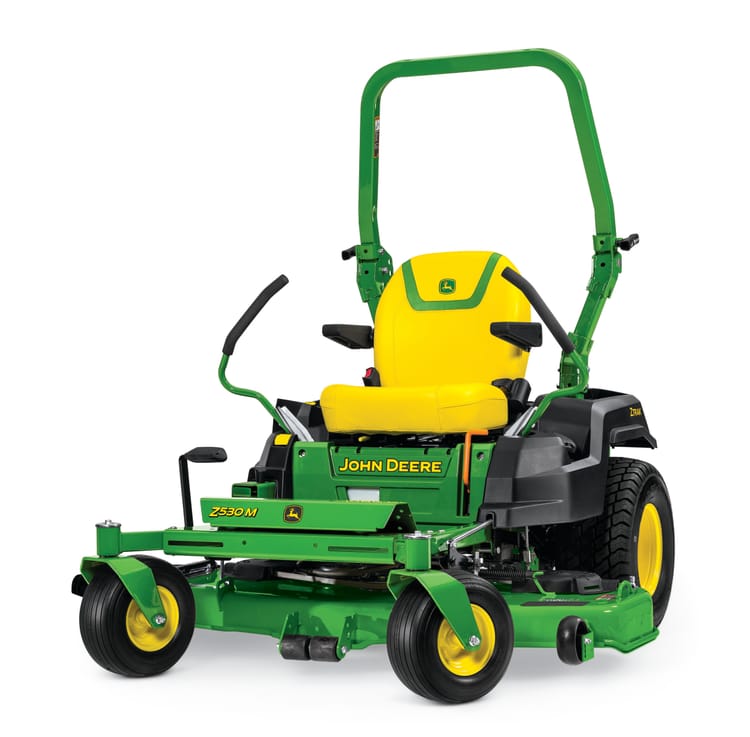

Z530M ZTrak™ Mower with 60-in. Deck

<ul>
<li>24 hp* (17.9 kW) V-Twin engine</li>
<li>60-in (152 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit</li>
<li>20-in. cut and sewn seat with ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, foot lift, and premium control levers come standard</li>
<li>4-year/300-hour bumper-to-bumper warranty</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>

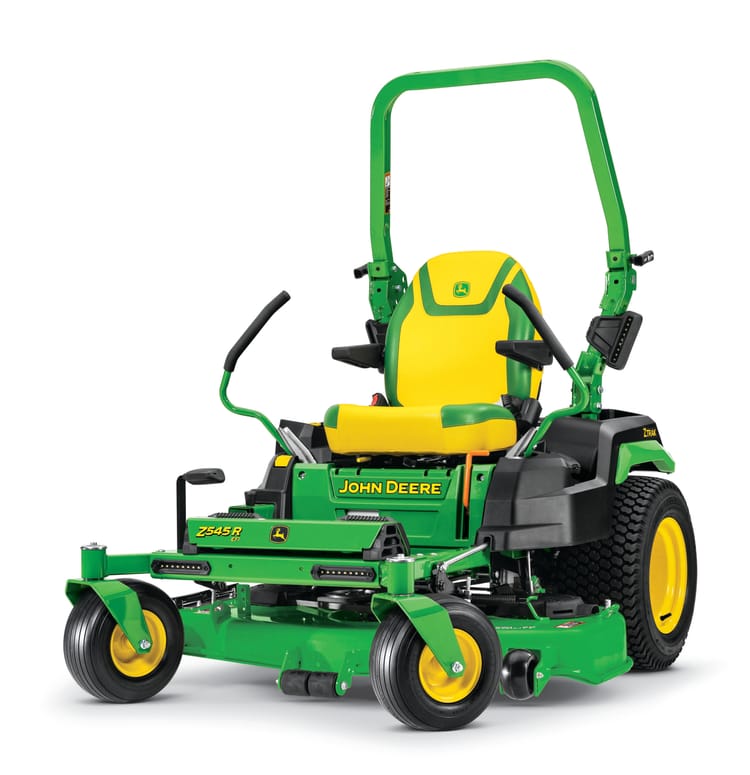

Z545R ZTrak™ Mower with 48-in. Deck

<ul>
<li>25 hp* (18.6 kW) EFI engine with Electronic Throttle Control</li>
<li>48-in (122 cm) High Capacity mower deck, compatible with optional MulchControl™ kit</li>
<li>22.5-in seat with armrests and ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, toe board mat, foot lift, premium control levers, LED lights, and rear hitch come standard</li>
<li>4-year/500-hour bumper-to-bumper warranty</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>

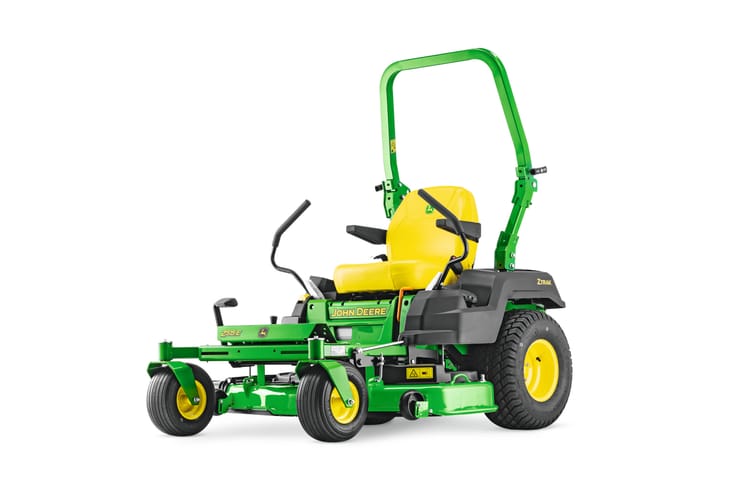

Z515E ZTrak™ Mower with 54-in. Deck

<ul>
<li>24 hp* (17.9 kW) V-Twin engine</li>
<li>54-in (137 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>18-in. cut and sewn seat with armrests and easy to read fuel gauge</li>
<li>4-year/300-hour bumper-to-bumper warranty</li>
<li>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</li>
</ul>


Lawn and Garden

Mowers

Z500 Series Zero-Turn Mowers

Z530M ZTrak™ Mower with 48-in. Deck

<ul>
<li>24 hp* (17.9 kW) V-Twin engine</li>
<li>48-in (122 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit</li>
<li>20-in. cut and sewn seat with ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, foot lift, and premium control levers come standard</li>
<li>4-year/300-hour bumper-to-bumper warranty</li>
<li>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</li>
</ul>


Z530M ZTrak™ Mower with 54-in. Deck

<ul>
<li>24 hp* (17.9 kW) V-Twin engine</li>
<li>54-in (137 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit</li>
<li>20-in. cut and sewn seat with ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, foot lift, and premium control levers come standard</li>
<li>4-year/300-hour bumper-to-bumper warranty</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


Z545R ZTrak™ Mower with 54-in. Deck

<ul>
<li>25 hp* (18.6 kW) EFI engine with Electronic Throttle Control</li>
<li>54-in (137 cm) High Capacity mower deck, compatible with optional MulchControl™ kit</li>
<li>22.5-in seat with armrests and ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, toe board mat, foot lift, premium control levers, LED lights, and rear hitch come standard</li>
<li>4-year/500-hour bumper-to-bumper warranty</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


<ul>
<li>24 hp* (17.9 kW) V-Twin engine</li>
<li>54-in (137 cm) High Capacity mower deck, compatible with optional MulchControl™ kit</li>
<li>22.5-in seat with armrests and ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, foot lift, and premium control levers come standard</li>
<li>4-year/500-hour bumper-to-bumper warranty</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


Z545R ZTrak™ Mower with 60-in. Deck

<ul>
<li>25 hp* (18.6 kW) EFI engine with Electronic Throttle Control</li>
<li>60-in (152 cm) High Capacity mower deck, compatible with optional MulchControl™ kit</li>
<li>22.5-in seat with armrests and ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, toe board mat, foot lift, premium control levers, LED lights, and rear hitch come standard</li>
<li>4-year/500-hour bumper-to-bumper warranty</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


Z530R ZTrak™ Mower with 60-in. Deck

<ul>
<li>24 hp* (17.9 kW) V-Twin engine</li>
<li>60-in (152 cm) High Capacity mower deck, compatible with optional MulchControl™ kit</li>
<li>22.5-in seat with armrests and ComfortGlide™ suspension</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>Rubber floor mats, foot lift, and premium control levers come standard</li>
<li>4-year/500-hour bumper-to-bumper warranty</li>
</ul>
<p>** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing.  Pricing and specifications subject to change without notice.</p>


Z515E ZTrak™ Mower with 60-in. Deck

<ul>
<li>24 hp* (17.9 kW) V-Twin engine</li>
<li>60-in (152 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit</li>
<li>Folding Rollover Protective Structure (ROPS)</li>
<li>18-in. cut and sewn seat with armrests and easy to read fuel gauge</li>
<li>4-year/300-hour bumper-to-bumper warranty</li>
</ul>


Zero-Turn Mowers

View Product Brochure

<div class="col-md-12">

The operator station is designed to provide superior operator comfort for many different operators:
<ul>
 	<li>Large, comfortable foot platform
<ul>
 	<li>Plenty of legroom for comfortable operation</li>
 	<li>Isolated with thick rubber spacers to minimize vibration</li>
 	<li>Standard rubber floor mat for extra foot comfort</li>
 	<li>Standard rubber toe board mat to stretch your legs in comfort</li>
 	<li>Standard foot pegs allow various comfortable positions for your feet</li>
</ul>
</li>
 	<li>Adjustable seat position, armrests, and spring suspension to suit each operator
<ul>
 	<li>Control panel conveniently located to the right of the seat</li>
</ul>
</li>
 	<li>Adjustable premium motion-control levers
<ul>
 	<li>Premium motion control levers have extra bends and material for greater operator comfort</li>
 	<li>Upper and lower positioning combined with forward and rearward tilt offers more legroom and hand positions</li>
</ul>
</li>
</ul>
<h5>Comfortable seat</h5>
The comfortable seat has two suspension springs, fore-aft seat adjustment and ComfortGlide suspension:
<ul>
 	<li>A high-back, 22.5-in. (57.1-cm) seat with thick foam padding for good support and comfort</li>
 	<li>Armrests for extra support</li>
 	<li>3-in. (7.6-cm) no-tools, fore-aft adjustment</li>
</ul>
<h5>Seat suspension</h5>
<ul>
 	<li>Two long, steel springs to absorb shocks when traveling over rougher areas</li>
 	<li>ComfortGlide is an additional system that allows a controlled fore and aft movement of the seat when experiencing undulations in uneven terrain. (M and R Series only)
<ul>
 	<li>Dramatically reduces horizontal vibrations and reduces jarring</li>
 	<li>Feel of ride is as if the operator is floating over the ground</li>
 	<li>Makes a big improvement to operator ride comfort</li>
 	<li>Allows front to rear movement, 1-in. (2.5-cm) forward and 1-in. (2.5-cm) rearward, to be absorbed</li>
 	<li>One lever with three positions
<ul>
 	<li>Slide seat fore/aft up to 3 in. (7.6 cm)</li>
 	<li>Engage isolator function to allow movement up to 1 in. (2.5 cm) fore and aft</li>
 	<li>Disengage isolator function to lock seat in position</li>
</ul>
</li>
</ul>
</li>
</ul>
<h5>Foot pegs (standard on R Series, optional on E and M Series)</h5>
Foot pegs (standard on the Z530R and Z545R and available as an extra-cost kit on the Z515E and Z530M) provide you with different foot placement options.

Foot pegs are secured to the toe board in the horizontal position to provide more variability for foot placement. The pegs also act as handles to remove and replace the foot platform.

<em>NOTE: Toe-board mat shown in photo is standard equipment on the Z530R and Z545R and can be ordered through Parts for the Z515E and Z530M.</em>
<h5>Cup holder and storage compartment</h5>
The dual beverage holder on the left fender and storage compartment on the right fender add convenience for the operator:
<ul>
 	<li>Room for two drink containers of various sizes for longer mowing jobs</li>
 	<li>Storage compartment provides a safe and convenient location to store tools and supplies</li>
</ul>
<em>NOTE: A storage compartment cover is standard on the Z530R and Z545R.</em>
<h5>12-V charge port</h5>
12-V outlet is located within the storage compartment for the convenience of connecting a variety of electrical and electronic equipment.

</div>

Comfortable ride delivered by an operator station with premium controls and ComfortGlide&trade; suspension

<div class="col-md-12">
<h5>Control console includes an easy-to-read fuel gauge</h5>
The control console is located to the right of the operator station and includes the following:
<ul>
 	<li>Ignition switch</li>
 	<li>Power take-off (PTO) control (yellow)</li>
 	<li>Engine speed control (orange)</li>
 	<li>Spring-loaded engine choke control so it is not inadvertently left on</li>
 	<li>Light switch</li>
 	<li>Space for an additional electric control switch</li>
</ul>
The advanced instrument display has the look and feel of a modern automobile with a power-up sequence that cycles lights and gauges to indicate they are working:
<ul>
 	<li>Display features a dark cockpit design to minimize operator distractions.</li>
 	<li>Display is backlit for night visibility.</li>
 	<li>Hour meter makes it easy to tell when oil changes and other maintenance should be performed.</li>
 	<li>Electronic fuel gauge provides real-time fuel level information.</li>
 	<li>A tachometer graphically displays engine speed.
<ul>
 	<li>Target-zone graphics inform the operator of the engine speed range to use for best cut quality.</li>
</ul>
</li>
 	<li>An indicator tells the operator when the PTO is operating.</li>
 	<li>Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
<ul>
 	<li>Damage can be prevented and repair costs can be reduced by addressing problems early.</li>
</ul>
</li>
 	<li>Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
<ul>
 	<li>The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.</li>
</ul>
</li>
 	<li>Operators are advised if battery voltage is low, normal, or excessive.</li>
 	<li>The service indicator light illuminates to indicate a diagnostic error code is stored.
<ul>
 	<li>On-board diagnostics provides trouble codes for use by trained technicians.
<ul>
 	<li>For example, a technician can test switch functionality and circuit continuity without tools.</li>
</ul>
</li>
</ul>
</li>
</ul>
<h5>Fuel sight widow and fill cap</h5>
A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:
<ul>
 	<li>Semi-clear material makes seeing how much fuel is in the tank quick and easy.</li>
 	<li>Large, 3-in. (7.6-cm) diameter fuel-fill opening reduces the chance of spilling when adding fuel.
<ul>
 	<li>Fuel-fill opening is low and angled to make adding fuel easy.</li>
</ul>
</li>
 	<li>Cap is tethered to the fuel tank.
<ul>
 	<li>Less chance of fuel cap getting lost</li>
</ul>
</li>
</ul>
<h5>Mower deck lift and cut height</h5>
Mower deck cutting height can be adjusted from 1 in. (2.5 cm) to 4 in. (10.2 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:
<ul>
 	<li>A convenient foot-lift pedal is used to raise the mower deck for setting cut height or locking mower in the raised or transport position.</li>
 	<li>A lift-assist spring is provided to optimize the effort it takes to raise the mower deck.</li>
</ul>
<h5>Cut-height adjustment and transport lock</h5>
<ul>
 	<li>To adjust cut height, simply push down on the foot-lift pedal, place the cut-height pin in the desired location, and release the foot-lift pedal to lower the deck to the chosen height.</li>
 	<li>Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.</li>
 	<li>To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever, and release the foot-lift pedal to lower the deck to the chosen height.</li>
</ul>
<h5>Premium steering levers</h5>
Motion control levers are shaped and located for operator comfort and ease of control.

Premium control levers on the Z530R and Z545R are painted green and have a unique shape and size for more comfortable operation.

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:
<ul>
 	<li>Combined height and fore/aft adjustments provide 18 positions</li>
 	<li>Increased operator comfort with more leg room and more hand positions</li>
 	<li>Adjustable for most precise control of the machine</li>
</ul>
<h5>Tracking adjustment</h5>
Tracking adjustment can be made from the operator seat with the provided tool.
<h5>Park brake</h5>
The park brake is conveniently located:
<ul>
 	<li>Large lever is easy to use.</li>
 	<li>Park brake effectively holds the machine in the parked position.</li>
 	<li>Park brake must be engaged (in the upper position) to start the engine.</li>
 	<li>Once the engine is started, the park brake must be disengaged before operating the motion-control levers.</li>
</ul>
Brake-and-go logic:
<ul>
 	<li>Park brake must be engaged for the engine to crank.</li>
 	<li>Motion-control levers must be in the outward position for the engine to crank.</li>
 	<li>Park brake must be disengaged before operating the motion-control levers or the engine will stall.</li>
</ul>
<h5>Safety interlock system</h5>
Safety interlocks help prevent operating in an unsafe way:
<ul>
 	<li>The parking brake must be engaged for the engine to crank.
<ul>
 	<li>Parking brake is set when motion-control levers are in the outward position.</li>
</ul>
</li>
 	<li>The operator presence system requires the operator to be in the seat to operate the PTO.</li>
 	<li>The key switch interlock prevents bypass starting.</li>
 	<li>If the operator leaves the seat when the PTO is engaged, the controls are in the operating position, or the parking brake is not set, the engine will shut down.</li>
 	<li>The seat interlock switch disengages the mower when the operator leaves the seat.</li>
 	<li>The engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the parking brake set.</li>
</ul>
</div>

Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls

<div class="col-md-12">

High Capacity Mower Decks are a heavy-duty, 9-gauge, 0.15-in. (3.8-mm), stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Experience optimal performance and dispersion of clippings, even at faster mowing speeds:
<ul>
 	<li>Deep-deck design throughout the entire deck shell provides optimum mowing, mulching, and bagging performance.
<ul>
 	<li>Optional MulchControl™ attachment provides superior mulching performance and versatility (not available on 48HC decks).</li>
</ul>
</li>
 	<li>Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.</li>
 	<li>Mower deck is suspended from the vehicle for a smooth and level cut.
<ul>
 	<li>Adjustable mower wheels positioned just above ground level help smooth out the mowing job.</li>
</ul>
</li>
</ul>
Z530R and Z545R ZTrak™ Mowers are equipped with a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) High Capacity Mower Deck.
<h5>Compatibility</h5>
<table border="1" cellspacing="1" cellpadding="1">
<tbody>
<tr>
<td><strong>High Capacity Mower Deck size</strong></td>
<td><strong>Model</strong></td>
<td><strong>Mulching (optional)</strong></td>
<td><strong>Material collection (optional)</strong></td>
</tr>
<tr>
<td>48 in. (122 cm)</td>
<td>Z545R</td>
<td>Dedicated mulching system</td>
<td>6.5-bu (230-L) two-bag Power Flow™ system</td>
</tr>
<tr>
<td>54 in. (137 cm)</td>
<td>Z530R, Z545R</td>
<td>MulchControl system</td>
<td>6.5-bu (230-L) two-bag Power Flow system</td>
</tr>
<tr>
<td>60 in. (152 cm)</td>
<td>Z530R, Z545R</td>
<td>MulchControl system</td>
<td>Not available</td>
</tr>
</tbody>
</table>
<h5>Deep deck design</h5>
The mower deck has a deep-deck design:
<ul>
 	<li>Constructed from heavy, 9-gauge, 0.15-in. (3.8-mm) steel
<ul>
 	<li>Minimizes the number of welds required</li>
 	<li>Has a smooth underside for reduced material buildup</li>
</ul>
</li>
 	<li>Deep-deck design delivers excellent airflow so large volumes of material can be processed quickly and efficiently.</li>
 	<li>A wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.</li>
 	<li>A durable, plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.</li>
 	<li>1-in. (25.4-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings.</li>
 	<li>Standard front rollers and two double-captured wheels provide a more even mowing job and reduce the chance of scalping.
<ul>
 	<li>Adjustable for different mowing heights</li>
</ul>
</li>
 	<li>The front edge is raised above the blade plane to allow for even cutting of tall grass.</li>
 	<li>Blade overlap is greater than many conventional decks for a clean cut.</li>
 	<li>The mower can side-discharge, mulch, or collect material.</li>
</ul>
<h5>Mower level adjustment</h5>
<ul>
 	<li>Deck leveling and rake angle adjustment is provided at all four mower mounting points.</li>
</ul>
<h5>Reinforced leading edge</h5>
Steel reinforcing bars are welded to the front edge and trim side of the mower deck:
<ul>
 	<li>Strengthens the deck to reduce chance of damage from obstructions</li>
 	<li>Increased material thickness for longer deck life</li>
</ul>
<h5>Superior durability is designed in</h5>
The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:
<ul>
 	<li>Ribs formed in the deck shell add strength where needed.</li>
 	<li>The aluminum spindle housing has an 8-in. (20-cm) base for extra strength.</li>
</ul>
Flip-up spindle covers make cleaning the spindle area convenient.
<h5>Wheels and rollers</h5>
Dual-captured side anti-scalp wheels and front rollers:
<ul>
 	<li>Give a more even mowing job and reduce the chance of scalping</li>
 	<li>Wheels are adjustable for different mowing heights</li>
</ul>
<h5>MulchControl limitations</h5>
While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps reduce the amount of material being discharged. Other times this could work as a disadvantage:
<ul>
 	<li>When cutting strong southern grasses, such as Zoysia and Bermuda</li>
 	<li>When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States</li>
 	<li>When optimum bagging and lawn cleanup is desired</li>
</ul>
<h5>Optional MulchControl™ attachment</h5>
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
<ul>
 	<li>A beautiful looking lawn</li>
 	<li>Grass clippings not blown onto the operator, driveways, or flower beds</li>
 	<li>Less fertilizer required</li>
 	<li>Elimination of the effort needed to dispose of clippings</li>
</ul>
MulchControl is an innovative, simple design that is easy to use and maintain:
<ul>
 	<li>The MulchControl attachment includes baffles to control the flow of material under the deck.</li>
 	<li>Mulching blades to give a more complete mulching job are included.</li>
 	<li>The left mower blade area is completely enclosed and optimized for mulching and will mulch even when the mower is in the side-discharge mode.</li>
 	<li>Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.</li>
 	<li>A MulchControl kit is not available for 48HC mower decks.</li>
</ul>
<h5>MulchControl operation</h5>
The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:
<ul>
 	<li>The operator is required to get off of the machine in order to engage or disengage mulch mode.</li>
 	<li>Changing from mulching to side discharge or vice versa with the hand lever takes only a few seconds.</li>
</ul>
MulchControl is well-suited to the following mowing situations:
<ul>
 	<li>Usually mulch, but side discharge when grass gets too long</li>
 	<li>Usually side discharge, but would like to be able to close the chute to control clippings</li>
 	<li>Always mulch a main lawn, but often side discharge secondary lawns</li>
 	<li>Bag clippings, but want to go farther before emptying bags</li>
</ul>
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
<h5>Specifications</h5>
<table border="1" cellspacing="1" cellpadding="1">
<tbody>
<tr>
<td><strong>Capacity</strong></td>
<td>6.5 bu (230 L)</td>
</tr>
<tr>
<td><strong>Material:</strong></td>
<td></td>
</tr>
<tr>
<td>   Hopper top</td>
<td>High impact polypropylene</td>
</tr>
<tr>
<td>   Chute</td>
<td>Polyethylene</td>
</tr>
<tr>
<td>   Blower housing</td>
<td>Nylon</td>
</tr>
<tr>
<td>   Fan</td>
<td>Ultra-high molecular weight (UHMW) polyethylene</td>
</tr>
<tr>
<td>   Bags</td>
<td>Polyester</td>
</tr>
<tr>
<td><strong>Filling</strong></td>
<td>Directly into bags for emptying on ground or in trailer or into plastic liners</td>
</tr>
<tr>
<td><strong>Fan diameter</strong></td>
<td>13 in. (33 cm)</td>
</tr>
<tr>
<td><strong>Fan width</strong></td>
<td>2.75 in. (7 cm)</td>
</tr>
<tr>
<td><strong>Number of fan blades</strong></td>
<td>Four</td>
</tr>
</tbody>
</table>
<em>NOTE: MulchControl attachments and MCS components are not included in base equipment for a Z500 Series machine and must be ordered separately.</em>
<h5>Optional 6.5-bu (229-L) ZTrak Z500 Series material collection system (MCS) (not available for 60-in. [152-cm] High Capacity Mower Deck)</h5>
The 6.5-bu (230-L) rear bagger efficiently collects material from a 48- or 54-in. (122- or 137-cm) Mower Deck:
<ul>
 	<li>Hopper and included attachment bar/bumper, Power Flow blower, and chute components are ordered separately to make a complete MCS.</li>
 	<li>A weight bracket is included for installation on the front of the vehicle to help counterbalance the weight of the hopper. For proper ballast with complete MCS:
<ul>
 	<li>Four weights are required on a ZTrak Z500 Series equipped with a 48-in. (122-cm) Mower Deck.</li>
 	<li>Three weights are required on a ZTrak Z500 Series equipped with a 54-in. (137-cm) Mower Deck.</li>
</ul>
</li>
</ul>
The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:
<ul>
 	<li>Two durable bags give a generous, 6.5-bu (230-L) capacity.</li>
 	<li>The bags lift out for easy emptying.</li>
 	<li>An efficient chute provides a smooth flow of material to reduce the chance of plugging.
<ul>
 	<li>The chute and Power Flow blower must be ordered separately.</li>
</ul>
</li>
 	<li>Standard mower blades are used for bagging.</li>
 	<li>The air exhaust duct directs air from the hopper back and toward the ground for clean operation.</li>
 	<li>Convenient latch makes opening and closing the hopper easy.</li>
</ul>
<em>NOTE: Appropriate hopper with included attachment bar, Power Flow blower, chute and weights are required and ordered separately.</em>

</div>

Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks

<div class="col-md-12">

The Z530M and Z530R have a large 44.3-cu in. (726-cc) displacement engine with premium features that provide superior performance and reliability.
<ul>
 	<li>Easy inspection and removal of any debris that may have collected using two large cleanout ports that are integrated into the engine shroud over the cylinder heads.</li>
 	<li>Engine service times, reliability, and life are increased with the use of premium engine oil and air filtering systems, as well as the cooling design.</li>
</ul>
Experience plenty of power and torque to handle tough mulching, mowing, and bagging conditions with the 24-hp (17.9-kW) V-twin engine:
<ul>
 	<li>Greater torque, lower vibration, and improved sound quality from the V-twin cylinder design</li>
 	<li>Fast starts with electronic ignition</li>
 	<li>Long engine life with cast-iron cylinder liners</li>
 	<li>Excellent power and fuel economy with overhead valves</li>
 	<li>Reliable operation with in-line fuel filter</li>
</ul>
The engine speed lever and choke control lever are separate controls:
<ul>
 	<li>The engine speed lever is easy to use - there is no need to worry about pushing too far and engaging the choke like on single throttle/choke lever systems.</li>
</ul>
The engine area is open for visibility to important service points, making it easy to inspect and clean the engine.
<h5>4.5-gal. (17-L) fuel capacity for extended mowing times</h5>
The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight-level window and dash-mounted gauge:
<ul>
 	<li>Longer times between refills with the large tank</li>
 	<li>Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine</li>
 	<li>Easy filling and minimum chance of spills with a large, 3-in. (7.6-cm) diameter fuel opening that is low and angled</li>
</ul>
John Deere recommends the use of fuel stabilizer in gasoline. See <a href="https://www.wadeincorporated.com/docs/sales/salesmanual/en_NA/lawn_equipment/attachments/ty27534_fuel_protect_gas_engines.html">Fuel-Protect for gasoline engines (8 oz [237 mL])</a> for more information.

</div>

Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine

<div class="col-md-12">

The spacious operator station has been designed for comfort, visibility, and ease of use:
<ul>
 	<li>Getting on and off easy with the flat operator platform.</li>
 	<li>Convenient-to-use controls are located close to the operator.</li>
 	<li>Operator controls are color coded and designed for easy identification and operation.</li>
</ul>
The ROPS and seat belt work in conjunction to provide a protective zone around the operator:
<ul>
 	<li>It reduces the operator’s risk of being crushed under the vehicle should it overturn.</li>
 	<li>In most situations, the ROPS limits the overturn to little more than 90 degrees.</li>
 	<li>When used with a seatbelt, the ROPS is very effective in preventing deaths and serious injuries.
<ul>
 	<li>Use of the seat belt is recommended when operating with ROPS in the upright position.</li>
</ul>
</li>
</ul>
Foldable ROPS and retractable seat belt are standard equipment:
<ul>
 	<li>Handles on the position pins provide a good grip and make changing the angle of the ROPS easier.</li>
 	<li>The door height of most garages will accommodate the machine with ROPS in the fully raised position.
<ul>
 	<li>Easy-fold ROPS improves the ability to store the ZTrak™ mower in structures with a lower door opening.</li>
</ul>
</li>
</ul>
<table border="1" cellspacing="1" cellpadding="1">
<tbody>
<tr>
<td><strong>Model</strong></td>
<td><strong>Height at top of ROPS in fully raised position</strong></td>
</tr>
<tr>
<td>Z515E, Z530R</td>
<td>70.1 in. (178 cm)</td>
</tr>
<tr>
<td>Z530R, Z545R</td>
<td>70.7 in. (179.6 cm)</td>
</tr>
</tbody>
</table>
</div>

Protective zone around the operator is provided by the rollover protective structure (ROPS)

<div class="col-md-12">
<h5>Extra, top-of-the-line appearance features make the Z530R and Z545R look as good as they are</h5>
Green seat accents and the John Deere logo visually communicate a premium offering and give a distinctive appearance.

Green painted motion-control levers (versus black on the Z515E) blend with seat design.
<ul>
 	<li>Premium motion-control levers have additional material and bends to enhance steering comfort and control.</li>
</ul>
Green fender trim adds style and keeps the machine cleaner by blocking some of the material thrown by the tire.

Rear wheel rims have an automotive look for overall enhanced machine appearance.

Left and right tunnel supports enhance the appearance of the Z530R and Z545R and work in conjunction with the rubber-isolated floor platform to provide extra support and rattle-free operation.
<h5>Front and side lights</h5>
The attractive design includes a provision for light-emitting diode (LED) lighting:
<ul>
 	<li>Two front lights face forward for front visibility.</li>
 	<li>Side lights are positioned to provide excellent visibility of the mower deck.</li>
</ul>
<em>NOTE: Lights are standard on the Z530R and Z545R and optional on the Z515E and Z530M.</em>
<h5>Formed and welded steel frame</h5>
A strong, welded steel frame provides solid, reliable support for the machine components and operator:
<ul>
 	<li>Heavy-duty 1.5- x 2-in. (38- x 51-mm) frame tubing for durability</li>
 	<li>Rear frame provides solid support and protection for the engine</li>
</ul>
<h5>Rear hitch</h5>
Strong frame is designed to accommodate a rear hitch that can be used to pull a variety of lawn equipment:
<ul>
 	<li>Can support up to 100 lb (45.4 kg) of tongue weight</li>
 	<li>Can pull equipment weighing up to 250 lb (113.4 kg)</li>
</ul>
<em>NOTE: The rear hitch is standard on the Z530R and Z545R and optional on the Z515E and Z530M.</em>
<h5>Large, smooth-riding front caster wheels</h5>
Large front caster wheels provide a smooth ride and level cut:
<ul>
 	<li>Large, 13x5.0-6 tires travel over bumps more smoothly</li>
 	<li>Pneumatic tires for the smoothest ride</li>
 	<li>Better performance on slopes</li>
</ul>
Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles:
<ul>
 	<li>Long, trouble-free life</li>
 	<li>Designed to give smooth turns without damage to the turf</li>
 	<li>Large rear drive wheels for a smooth ride and level cut</li>
</ul>
<h5>Large rear tires</h5>
Rear tires have high-quality tread and optimum size for superior traction and smooth ride:
<ul>
 	<li>Tire size is 23x10.5-12.</li>
 	<li>Tread pattern is optimized for excellent traction and minimum turf damage.</li>
 	<li>Special wheel design gives an enhanced appearance to the machine.</li>
</ul>
</div>

Z530R ZTrak™ Mower with 54-in. Deck

$6,499.00

Comfortable ride delivered by an operator station with premium controls and ComfortGlide™ suspension

Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls

Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks

Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine

Protective zone around the operator is provided by the rollover protective structure (ROPS)

Great looks, reliability, and performance delivered by a heavy-duty design with extra appearance features

Similar Products

Z530M ZTrak™ Mower with 60-in. Deck

Z545R ZTrak™ Mower with 48-in. Deck

Z515E ZTrak™ Mower with 54-in. Deck

Z530M ZTrak™ Mower with 48-in. Deck

Z530M ZTrak™ Mower with 54-in. Deck

Z545R ZTrak™ Mower with 54-in. Deck

Z545R ZTrak™ Mower with 60-in. Deck

Z530R ZTrak™ Mower with 60-in. Deck

Z530R ZTrak™ Mower with 54-in. Deck

$6,499.00

Comfortable ride delivered by an operator station with premium controls and ComfortGlide&trade; suspension

Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls

Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks

Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine

Protective zone around the operator is provided by the rollover protective structure (ROPS)

Great looks, reliability, and performance delivered by a heavy-duty design with extra appearance features

Similar Products

Z530M ZTrak™ Mower with 60-in. Deck

Z545R ZTrak™ Mower with 48-in. Deck

Z515E ZTrak™ Mower with 54-in. Deck

Z530M ZTrak™ Mower with 48-in. Deck

Z530M ZTrak™ Mower with 54-in. Deck

Z545R ZTrak™ Mower with 54-in. Deck

Z545R ZTrak™ Mower with 60-in. Deck

Z530R ZTrak™ Mower with 60-in. Deck

Comfortable ride delivered by an operator station with premium controls and ComfortGlide™ suspension
