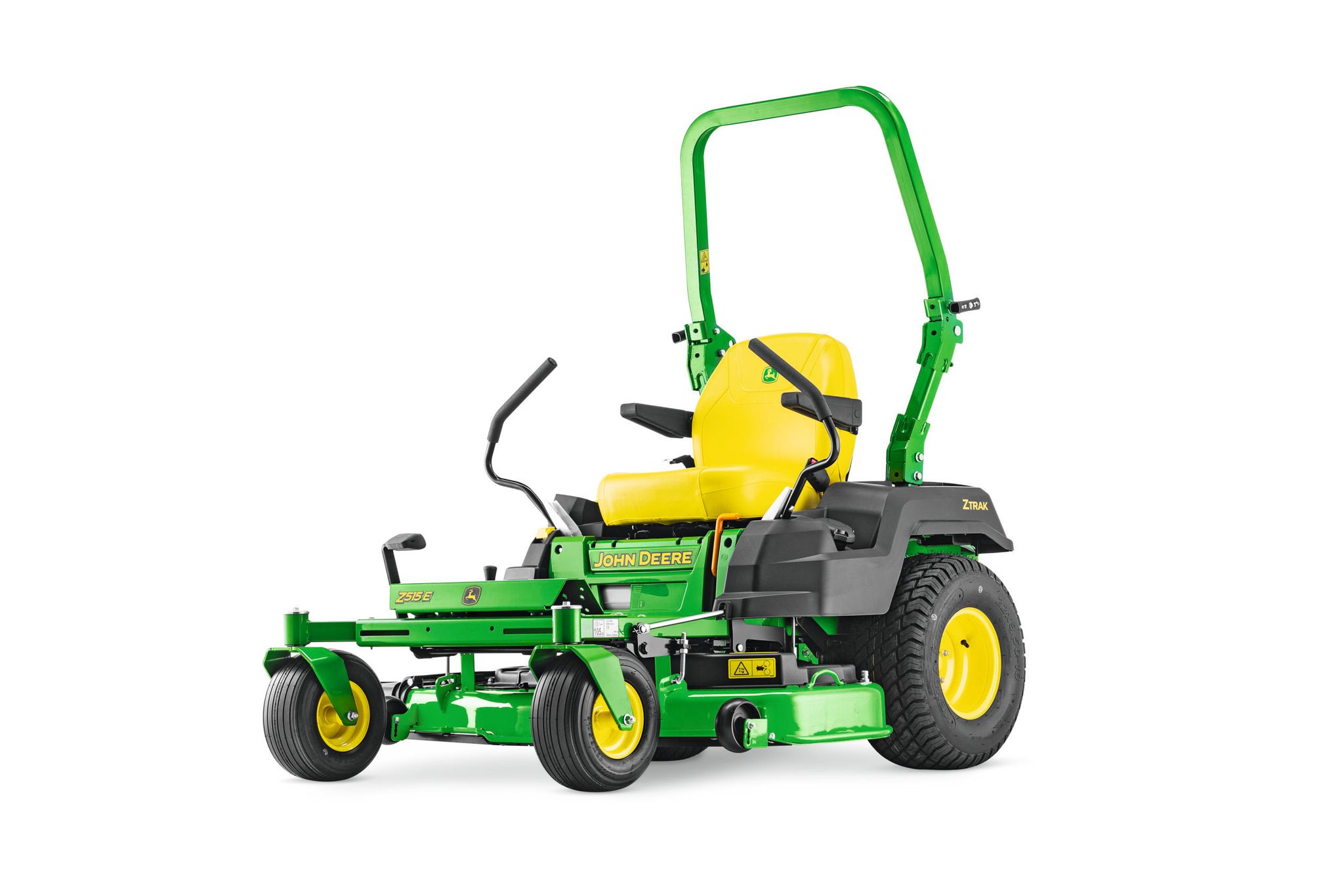

Z515E ZTrak™ Mower with 54-in. Deck
$5,099.00
- 24 hp* (17.9 kW) V-Twin engine
- 54-in (137 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit
- Folding Rollover Protective Structure (ROPS)
- 18-in. cut and sewn seat with armrests and easy to read fuel gauge
- 4-year/300-hour bumper-to-bumper warranty
- ** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
| Specifications | |
|---|---|
| Engine power | 24 hp<br> 17.9 kW |
| Engine model number | M44 Extended Life Series (ELS) |
| Forward speed | 0-8 mph<br> 0-12.9 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 22x9.5-10 |
| Seat back height | Medium back with armrests, 18 in.<br> 45.7 cm |
| Width of cut | Accel Deep™ mower deck, 48 in.<br> 122 cm<br> Accel Deep mower deck, 54 in.<br> 137 cm<br> Accel Deep mower deck, 60 in.<br> 152 cm |
| Mulching system | Optional MulchControl™ attachment, 48 in.<br> 122 cm<br> Optional MulchControl attachment, 54 in.<br> 137 cm<br> Optional MulchControl attachment, 60 in.<br> 152 cm |
| U.S. warranty | 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 24 hp<br> 17.9 kW |
| Model number | M44 Extended Life Series (ELS) |
| Displacement | 44.2 cu in.<br> 724 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt<br> 1.9 L |
| Type | Overhead valve |
| Battery | 12 V<br> 300 CCA |
| Choke/speed control | Separate levers |
| Cooling method | Air |
| Fuel tank capacity | 4.5 U.S. gal.<br> 17 L |
| Fuel gauge | Electric gauge and fuel level sight line |
| Dual hydros | Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles |
| Forward speed | 0-8 mph<br> 0-12.9 km/h |
| Reverse speed | 0-4 mph<br> 0-6.4 km/h |
| Speed and direction control | Twin levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x6.5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires | 22x9.5-10 |
| Hourmeter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
| Seat back height | Medium back with armrests, 18 in.<br> 45.7 cm |
| Fore-aft adjustment | While seated, 3 in.<br> 7.6 cm |
| Seat suspension | Two springs |
| Type | Foot lift |
| Mower cut height | 1-4 in.<br> 2.5-10.2 cm |
| Cut height increments | 0.25 in.<br> 0.64 cm |
| Preset cut height | Yes |
| Width of cut | Accel Deep mower deck, 48 in.<br> 122 cm<br> Accel Deep mower deck, 54 in.<br> 137 cm<br> Accel Deep mower deck, 60 in.<br> 152 cm |
| Type | Side discharge |
| Mower deck material | 10 gauge<br> 0.135 in.<br> 3.4 mm |
| Mower drive system | V-belt |
| Type | Electric, 105 lb-ft<br> 142.4 Nm |
| Drive | V-belt |
| Wheelbase | 49.2 in.<br> 125 cm |
| Overall length | 76.9 in.<br> 195.3 cm |
| Width without mower | 46.6 in.<br> 118.4 cm |
| Width with mower | 48A - 62.8 in.<br> 159.5 cm<br> 54A - 68.6 in.<br> 174.2 cm<br> 60A - 73.4 in.<br> 186.4 cm |
| Width with mower (deflector raised for storage) | 48A - 54 in.<br> 137 cm<br> 54A - 59.7 in.<br> 152 cm<br> 60A - 65.6 in.<br> 167 cm |
| Height | 47.6 in.<br> 121 cm<br> With rollover protective structure (ROPS) up position - 70.1 in.<br> 178 cm |
| Weight | With mower and fuel, 48A, 768 lb<br> 349 kg<br> With mower and fuel, 54A, 776 lb<br> 353 kg<br> With mower and fuel, 60A, 784 lb<br> 356 kg |
| Rollover protective structure (ROPS) | Yes |
| Slope operating limit | 15 degrees, 10 degrees with an MCS |
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Operator video | Yes |
| Note 1 | Mower wash port makes cleaning the deck easier |
| Note 2 | Flip-up foot platform for easy service access |
| Note 3 | 18-position adjustable motion-control levers |
| U.S. warranty | 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mulching system | Optional MulchControl attachment, 48 in.<br> 122 cm<br> Optional MulchControl attachment, 54 in.<br> 137 cm<br> Optional MulchControl attachment, 60 in.<br> 152 cm |
| Rubber floor mat | Optional |
| Sun shade | Optional |
| Mounted sprayer | No |
| Storage cover | No |
| Light kit | Optional 4-point LED Light kit |
| Material collection system | Power Flow rear bagger, 6.5 bu<br> 230 L<br> Not available on 60A |
