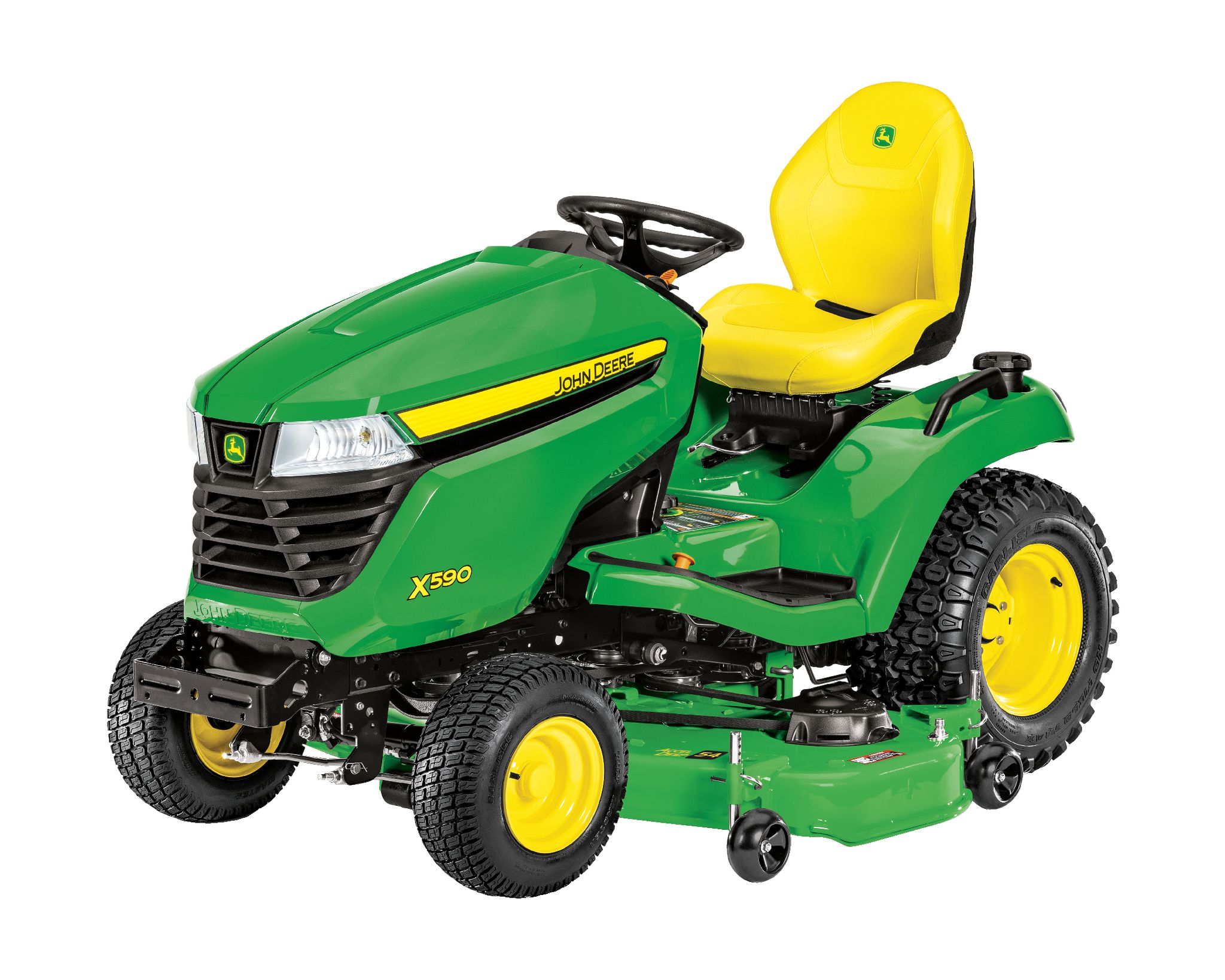

X590 Lawn Tractor with 54-in. Deck
$9,999.00
- 25.5-hp (19.0 kW)* iTorque™ Power System
- 54-in. (137 cm) Accel Deep™ Deck, compatible with optional MulchControl™ kit with one-touch technology
- Electronic throttle control and power two-wheel steer
- 4 year/500 hour bumper-to-bumper warranty
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
| Specifications | |
|---|---|
| Engine power | 25.5 hp<br> 19 kW |
| Oil change | No-tools oil drain with replaceable filter |
| Engine manufacturer/model | FS730 EFI |
| Transaxle type | K72 hydrostatic integrated with transaxle |
| Transaxle control | Twin Touch™ pedals |
| Rear tires | 24x12-12 HDAP |
| Lift system type | Hydraulic |
| Cutting width | Accel Deep™ mower deck, 54 in.<br> 137 cm |
| U.S. warranty | 4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 25.5 hp<br> 19 kW |
| Displacement | 44.3 cu in.<br> 726 cc |
| Manufacturer/model | FS730 EFI |
| Type | Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Constant-speed electronic throttle control |
| Choke/speed control | No choke required |
| Cooling method | Air |
| Air cleaner | Dry, replaceable with foam precleaner |
| Oil change | No-tools oil drain with replaceable filter |
| Type | Gasoline |
| Fuel delivery | Open-loop electronic fuel injection (EFI) |
| Fuel gauge | Gauge on dash |
| Fuel tank location | Rear |
| Fuel fill opening | On left fender, 3 in.<br> 7.6 cm |
| Fuel tank capacity | 4.4 U.S. gal.<br> 16.7 L |
| Battery | 12 V<br> 500 CCA |
| Charging system | Flywheel alternator, regulated, 15 amp |
| Engine starter | Solenoid shift |
| Hourmeter | Yes |
| Headlights | Two standard, incandescent, 27 W |
| Taillights or reflector | Reflectors |
| Backup lights | No |
| Rear work lights | No |
| 12-V outlet | Yes |
| Type | K72 hydrostatic integrated with transaxle |
| Control | Twin Touch™ pedals |
| Cruise control | Yes, button on dash |
| Oil cooler | Fins and fan on transaxle |
| Oil filter | Yes, replaceable |
| Differential lock | Standard |
| Forward speed | 0-7.2 mph<br> 0-11.6 km/h |
| Reverse speed | 0-5.2 mph<br> 0-8.4 km/h |
| Brakes | Internal wet disc |
| Frame | Welded heavy-duty |
| Primer/paint | E-coat/powder |
| Weight bracket | Standard front and rear - each holds up to four Quik-Tatch weights, 42 lb<br> 19 kg |
| Receiver hitch | No |
| Front axle | Cast iron front axle, front wheel ball bearings |
| Spindle bushings | Metal, replaceable |
| Front tires | 16x6.5-8 turf |
| Rear tires | 24x12-12 HDAP |
| Hood material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Fender deck material | Stamped steel |
| Floor mats | Sure-grip rubber |
| Storage | Yes, under seat and covered toolbox |
| Service interval decal | Yes |
| Fender handles/grips | Handles |
| Cup holder | Yes |
| Equipment mounting | Yes, heavy duty |
| Type | Power, hydraulic |
| Four-wheel steer | Not available on this model |
| Steering wheel | 14 in.<br> 35.6 cm |
| Tilt steering wheel | Standard, five position |
| Turning radius | 22 in.<br> 55.9 cm |
| Uncut circle radius | 24 in.<br> 61 cm |
| Type | Cut-and-sewn high-back |
| Seat back height | 21 in.<br> 53 cm |
| Armrests | Optional |
| Fore-aft adjustment | While seated, slide rail, 15-position, 6.6 in.<br> 17 cm |
| Seat suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
| Type | Hydraulic |
| Hydraulic outlets | No |
| Mower cut height | 13 positions, 1-4 in.<br> 2.5-10.2 cm |
| Cut height increments | 0.25 in.<br> 0.64 cm |
| Preset cut height | Yes |
| Type | Side discharge |
| Cutting width | Accel Deep™ mower deck, 54 in.<br> 137 cm |
| Construction | Stamped steel deck shell |
| Mower deck material | 10 gauge<br> 0.135 in.<br> 3.4 mm |
| Mower wash port | Yes |
| Mower drive system | Electric power take-off (PTO) clutch, in-line belt |
| Mower wheels | Four |
| Mower wheel adjustment | Seven-position, spring-loaded pin |
| Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
| Type | Roll under tractor |
| Front draft arms | Attached with spring pins at two points |
| Rear draft arms | Quick-pull pins |
| Mower wheels rotate | Yes, 90 degrees for easy mower removal |
| Drive system | Dual belt |
| Meets ANSI standard | Yes |
Similar Products

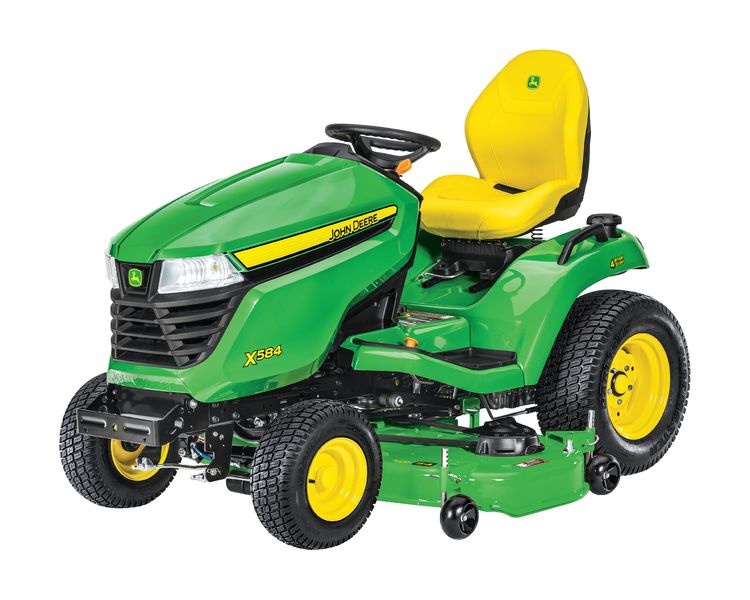

X584 Lawn Tractor with 48-in. Deck
$9,749.00
24 hp (17.9 kW)* iTorque™ Power System
48-in. Accel Deep™ Mower Deck,...

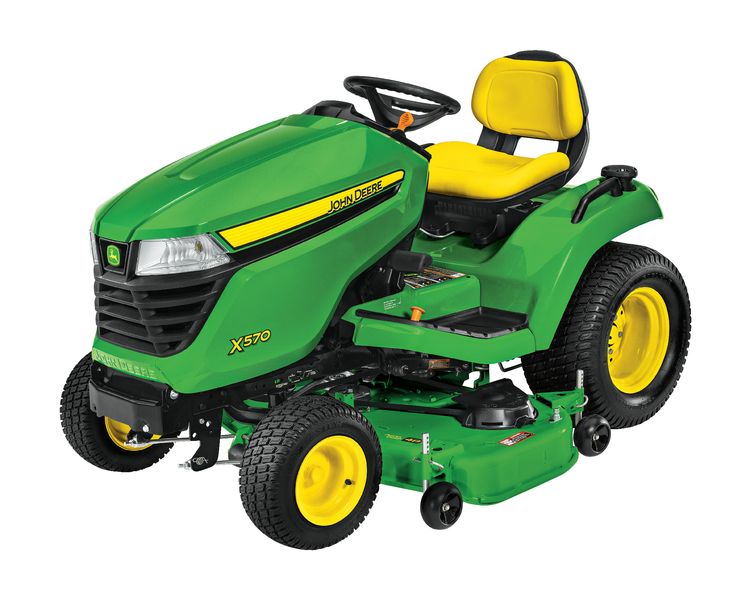

X570 Lawn Tractor with 54-in. Deck
$8,099.00
24 hp (17.9 kW)* iTorque™ Power System
54-in. (137 cm) Accel Deep™ Mo...
X584 Lawn Tractor with 54-in. Deck
$10,199.00
24 hp (17.9 kW)* iTorque™ Power System
54-in. (137 mm) Accel Deep™ Mo...

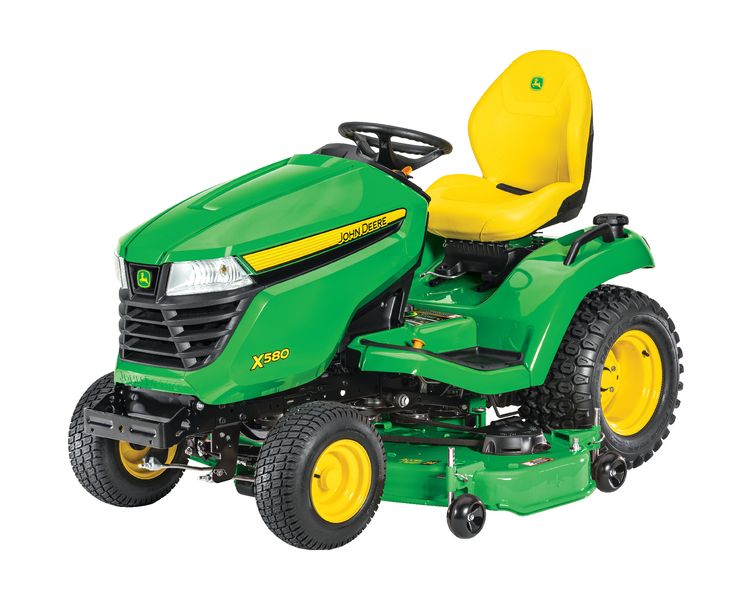

X580 Lawn Tractor with 54-in. Deck
