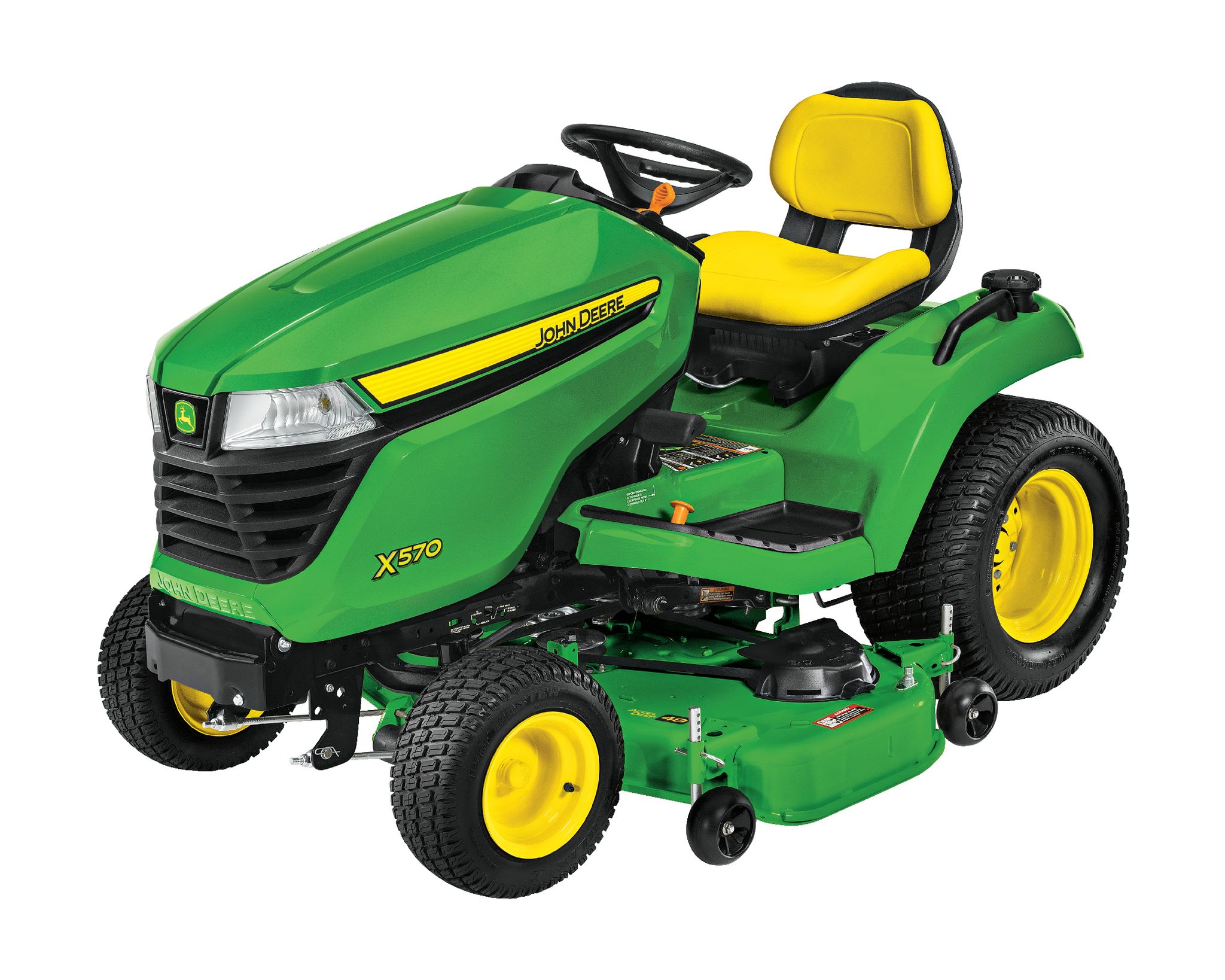

X570 Lawn Tractor with 48-in. Deck
$7,799.00
- 24 hp (17.9 kW)* iTorque™ Power System
- 48-in. (122 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit with one-touch technology
- Twin Touch™ forward and reverse foot pedals
- 4 year/500 hour bumper-to-bumper warranty
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
| Specifications | |
|---|---|
| Engine power | 24 hp<br> 17.9 kW |
| Oil change | No-tools oil drain with replaceable filter |
| Engine manufacturer/model | FS730V |
| Transaxle type | K72 hydrostatic integrated with transaxle |
| Transaxle control | Twin Touch™ pedals |
| Rear tires | 24x12-12 turf |
| Lift system type | Foot pedal with adjustable spring assist |
| Cutting width | Accel Deep™ mower deck, 48 in.<br> 122 cm |
| U.S. warranty | 4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 24 hp<br> 17.9 kW |
| Displacement | 44.3 cu in.<br> 726 cc |
| Manufacturer/model | FS730V |
| Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/speed control | Separate levers, automatic choke return |
| Cooling method | Air |
| Air cleaner | Dry, replaceable with foam precleaner |
| Oil change | No-tools oil drain with replaceable filter |
| Type | Gasoline |
| Fuel delivery | Pulse pump and carburetor |
| Fuel gauge | Gauge on dash |
| Fuel tank location | Rear |
| Fuel fill opening | On left fender, 3 in.<br> 7.6 cm |
| Fuel tank capacity | 4.4 U.S. gal.<br> 16.7 L |
| Battery | 12 V<br> 500 CCA |
| Charging system | Flywheel alternator, regulated, 15 amp |
| Engine starter | Solenoid shift |
| Hourmeter | Yes |
| Headlights | Two standard, incandescent, 27 W |
| Taillights or reflector | Reflectors |
| Backup lights | No |
| Rear work lights | No |
| 12-V outlet | Yes |
| Type | K72 hydrostatic integrated with transaxle |
| Control | Twin Touch™ pedals |
| Cruise control | Yes, button on dash |
| Oil cooler | Fins and fan on transaxle |
| Oil filter | Yes |
| Differential lock | Standard |
| Forward speed | 0-7.2 mph<br> 0-11.6 km/h |
| Reverse speed | 0-5.2 mph<br> 0-8.4 km/h |
| Brakes | Internal wet disc |
| Frame | Welded heavy-duty |
| Primer/paint | E-coat/powder |
| Weight bracket | Standard rear, optional front - each holds up to four Quik-Tatch weights, 42 lb<br> 19 kg |
| Receiver hitch | No |
| Front axle | Cast iron front axle, front wheel ball bearings |
| Spindle bushings | Metal, replaceable |
| Front tires | 15x6.5-8 |
| Rear tires | 24x12-12 turf |
| Hood material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Fender deck material | Stamped steel |
| Floor mats | Sure-grip rubber |
| Storage | Yes, under seat and covered toolbox |
| Service interval decal | Yes |
| Fender handles/grips | Handles |
| Cup holder | Yes |
| Equipment mounting | Yes, heavy duty |
| Type | Manual, sector and pinion |
| Four-wheel steer | Not available on this model |
| Steering wheel | 14 in.<br> 35.6 cm |
| Tilt steering wheel | No |
| Turning radius | 16 in.<br> 40.6 cm |
| Uncut circle radius | 23 in.<br> 58 cm |
| Type | Open-back design with grasp |
| Seat back height | 15 in.<br> 38 cm |
| Armrests | No |
| Fore-aft adjustment | While seated, slide rail, 15-position, 6.6 in.<br> 17 cm |
| Seat suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
| Type | Foot pedal with adjustable spring assist |
| Hydraulic outlets | No |
| Mower cut height | 13 positions, 1-4 in.<br> 2.5-10.2 cm |
| Cut height increments | 0.25 in.<br> 0.64 cm |
| Preset cut height | Yes |
| Type | Side discharge |
| Cutting width | Accel Deep™ mower deck, 48 in.<br> 122 cm |
| Construction | Stamped steel deck shell |
| Mower deck material | 10 gauge<br> 0.135 in.<br> 3.4 mm |
| Mower wash port | Yes |
| Mower drive system | Electric power take-off (PTO) clutch, in-line belt |
| Mower wheels | Four |
| Mower wheel adjustment | Seven-position, spring-loaded pin |
| Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
| Type | Roll under tractor |
| Front draft arms | Attached with spring pins at two points |
| Rear draft arms | Quick-pull pins |
| Mower wheels rotate | Yes, 90 degrees for easy mower removal |
| Drive system | Dual belts |
| Meets ANSI standard | Yes |
