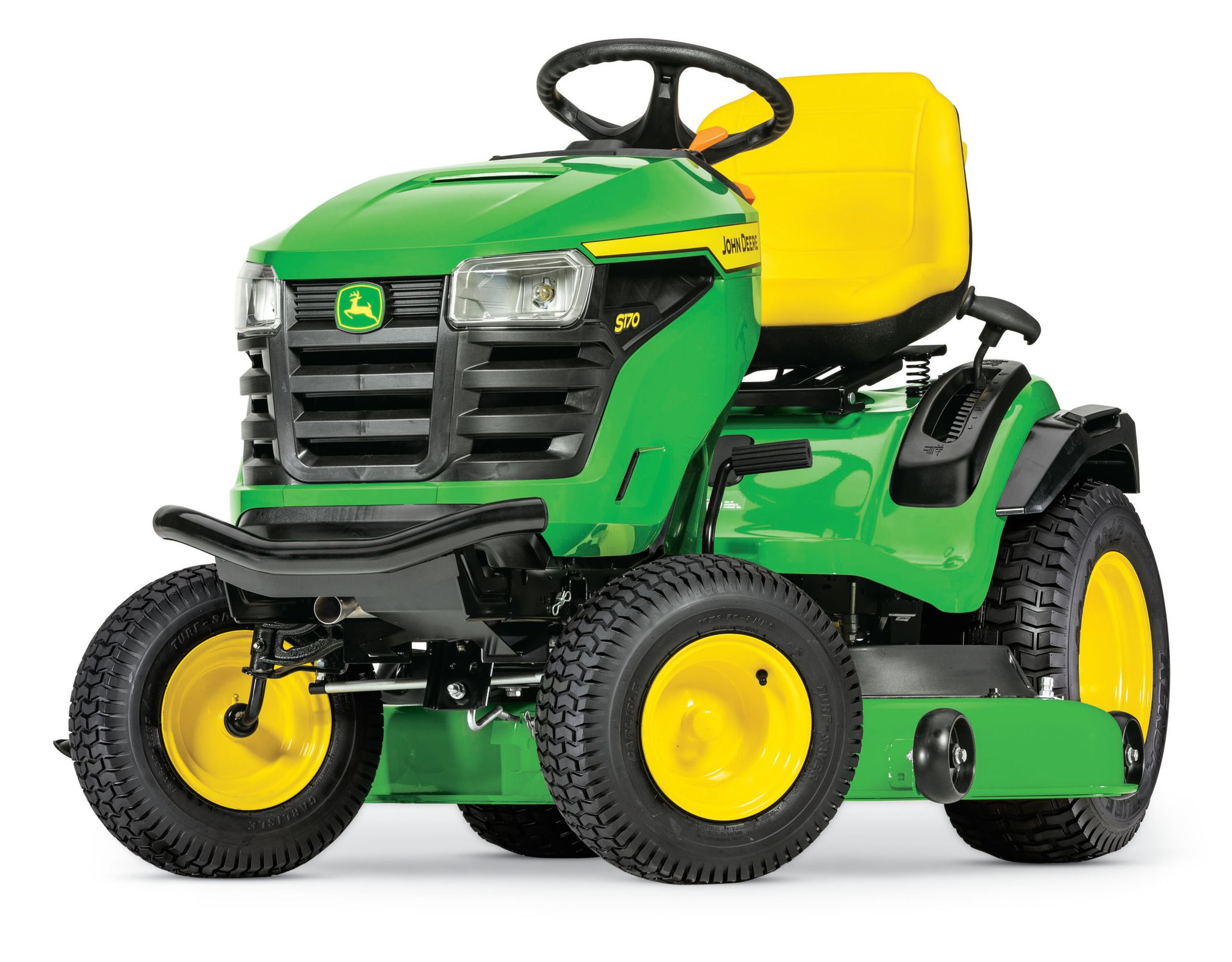

S170 Lawn Tractor
$3,299.00
- 24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
- 48-in. Edge™ Mower Deck
- Electric PTO, Heavy Duty Hydrostatic Transmission w/side-by-side pedals
- Easy Change™ 30-Second Oil Change System
- Adjustable lumbar seat and standard front bumper
- Easy to read fuel gauge
- 2 year/120 hour bumper-to-bumper warranty
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Specifications | |
---|---|
Engine power | 24 hp<br> 17.9 kW |
Oil change | John Deere Easy Change™ 30-second oil change system |
Engine manufacturer/model | 44U877 (M44) |
Transaxle type | K46 heavy-duty hydrostatic, two-wheel drive |
Transaxle control | Side-by-side pedals |
Rear tires | 22x9.5-12 |
Lift system type | Spring-assisted hand-grip lever |
Cutting width | Edge™ mower deck, 48 in.<br> 122 cm |
U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Power | 24 hp<br> 17.9 kW |
Displacement | 44.2 cu in.<br> 724 cc |
Manufacturer/model | 44U877 (M44) |
Type | Overhead valve, full-pressure lube, oil filter |
Cylinders | V-twin - extended life series (ELS) |
Governor | Mechanical |
Choke/speed control | Single lever with spring-return on choke |
Cooling method | Air |
Air cleaner | Cartridge with prefilter |
Oil change | John Deere Easy Change 30-second oil change system |
Type | Gasoline |
Fuel delivery | Pulse pump and carburetor |
Fuel gauge | Easy-read on dash |
Fuel tank location | Rear |
Fuel fill opening | Center, 1.75 in.<br> 4.45 cm |
Fuel tank capacity | 2.4 U.S. gal.<br> 9.1 L |
Battery | 12 V<br> 300 CCA |
Charging system | Regulated, 14 amp |
Engine starter | Bendix type |
Hourmeter | Yes |
Headlights | Two standard, incandescent |
Taillights or reflector | Reflectors |
Backup lights | No |
Rear work lights | No |
12-V outlet | No |
Type | Hydrostatic, 2-wheel drive |
Control | Side-by-side pedals |
Cruise control | Standard |
Oil cooler | Fins and fan on transaxle |
Oil filter | Yes, not serviceable |
Differential lock | No |
Forward speed | 0-5.5 mph<br> 0-8.9 km/h |
Reverse speed | 0-3.2 mph<br> 0-5.2 km/h |
Brakes | Internal wet disk |
Frame | Full-length welded steel |
Primer/paint | E-coat/powder |
Weight bracket | Optional rear |
Receiver hitch | No |
Front axle | Cast-iron front axle, powdered-metal front wheel bushings |
Spindle bushings | No |
Front tires | 16x6.5-8 |
Rear tires | 22x9.5-12 |
Hood material | Molded-in color material reduces sound, will not rust or dent |
Fender deck material | Stamped steel |
Floor mats | Yes, with debris removing channels |
Storage | Storage tray with cover |
Service interval decal | Yes |
Fender handles/grips | Handgrips |
Cup holder | Yes |
Equipment mounting | CargO Mount™ system |
Type | Sector and pinion with single drag link and tie rod |
Four-wheel steer | Not available on this model |
Steering wheel | Deluxe, diameter - 14 in.<br> 35.6 cm |
Tilt steering wheel | No |
Turning radius | 18 in.<br> 45.7 cm |
Uncut circle radius | 20 in.<br> 50.8 cm |
Type | One piece with lumbar adjustment |
Seat back height | 15 in.<br> 38 cm |
Armrests | No |
Fore-aft adjustment | While seated, 5.5 in.<br> 14 cm |
Seat suspension | Tilt, two coil springs |
Type | Spring-assisted hand-grip lever |
Hydraulic outlets | No |
Mower cut height | 13 positions, 1-4 in.<br> 2.5-10.2 cm |
Cut height increments | 0.25 in.<br> 0.64 cm |
Preset cut height | No |
Type | Side discharge |
Cutting width | Edge™ mower deck, 48 in.<br> 122 cm |
Construction | Stamped steel deck shell |
Mower deck material | Steel, 12 gauge<br> 0.105 in.<br> 2.7 mm |
Mower wash port | Yes |
Mower drive system | Electric power take-off (PTO) clutch |
Mower wheels | Four |
Mower wheel adjustment | One bolt |
Mower level adjustment | Easy-level deck |
Type | Slide under tractor |
Front draft arms | One spring clip |
Rear draft arms | Two spring clips |
Mower wheels rotate | No |
Drive system | Single belt |
Meets ANSI standard | Yes |
