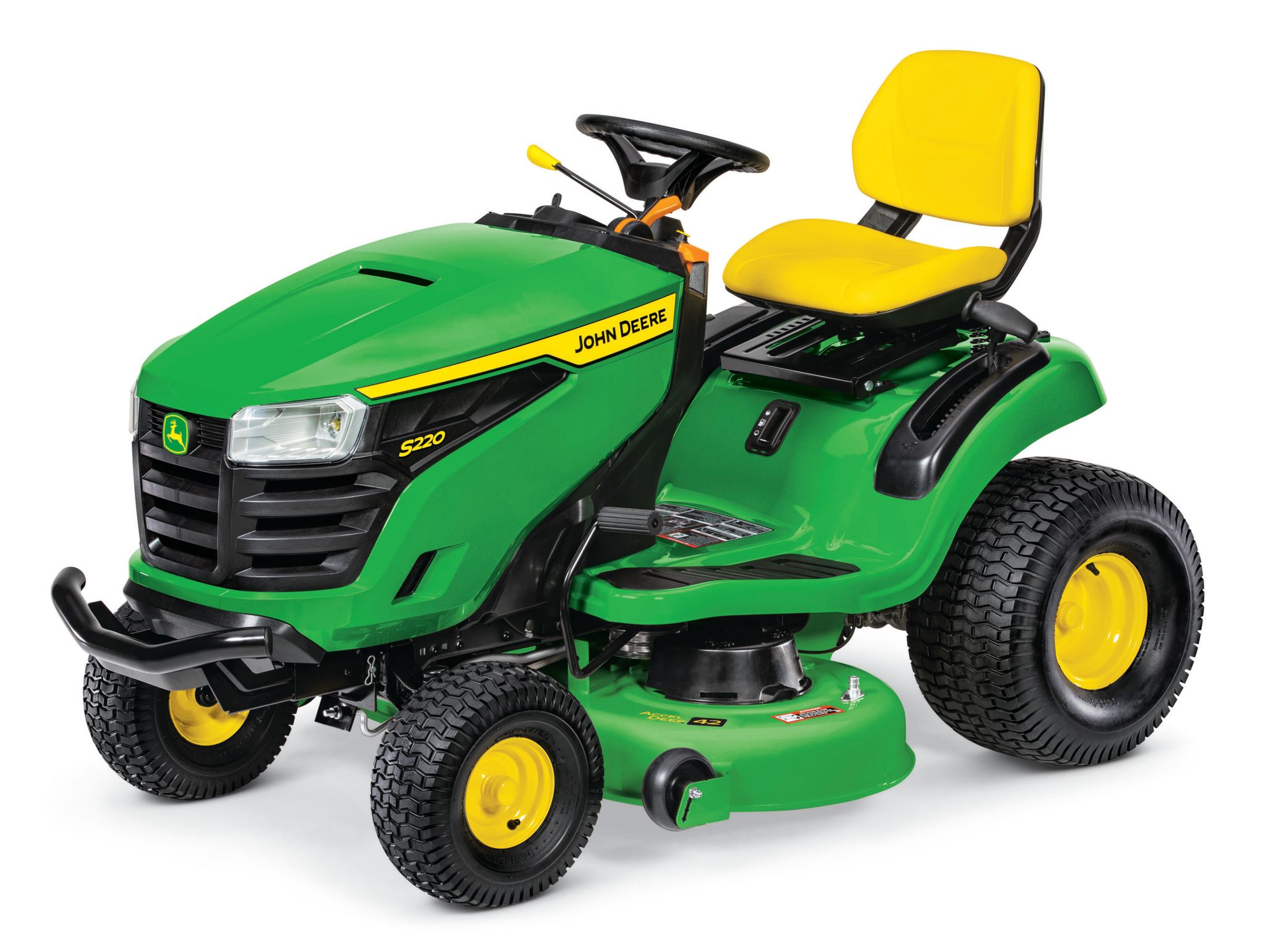

S220 Lawn Tractor with 42-in. Deck
$2,999.00
- 22 HP* Cyclonic V-Twin Engine
- 42-in. (107-cm) Accel Deep™ Deck, compatible with optional MulchControl™ kit
- Comfortable 15-in (38-cm) open-back seat
- Side-by-side forward and reverse pedals
- 3-year/200-hour bumper-to-bumper warranty
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
| Specifications | |
|---|---|
| Engine power | 22 hp<br> 16.4 kW |
| Oil change | No-tools oil drain with replaceable filter |
| Engine manufacturer/model | 44J6 Cyclonic |
| Transaxle type | TLT200 hydrostatic, two-wheel drive |
| Transaxle control | Side-by-side pedals |
| Rear tires | 20x10-8 |
| Lift system type | Spring-assisted hand-grip lever |
| Cutting width | Accel Deep™ mower deck, 42 in.<br> 107 in. |
| U.S. warranty | 3-year/200-hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 22 hp<br> 16.4 kW |
| Displacement | 44.2 cu in.<br> 724 cc |
| Manufacturer/model | 44J6 Cyclonic |
| Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/speed control | Separate levers, automatic choke return |
| Cooling method | Air |
| Air cleaner | Pleated paper cartridge filter with poly pre-filter |
| Oil change | No-tools oil drain with replaceable filter |
| Type | Gasoline |
| Fuel delivery | Pulse pump and carburetor |
| Fuel gauge | Mechanical, viewable from seat |
| Fuel tank location | Rear |
| Fuel fill opening | Center, 1.75 in.<br> 4.45 cm |
| Fuel tank capacity | 2.4 U.S. gal.<br> 9.1 L |
| Battery | 12 V<br> 300 CCA |
| Charging system | Flywheel alternator, regulated, 14 amp |
| Engine starter | Bendix type |
| Hourmeter | Yes |
| Headlights | Two standard, incandescent |
| Taillights or reflector | No |
| Backup lights | No |
| Rear work lights | No |
| 12-V outlet | No |
| Type | TLT200 hydrostatic, two-wheel drive |
| Control | Side-by-side pedals |
| Cruise control | Standard |
| Oil cooler | Fins and fan on transaxle |
| Oil filter | Internal, not replaceable |
| Differential lock | No |
| Forward speed | 0-5.5 mph<br> 0-8.9 km/h |
| Reverse speed | 0-3.2 mph<br> 0-5.2 km/h |
| Brakes | Internal wet disk |
| Frame | Full-length welded steel |
| Primer/paint | E-coat/powder |
| Weight bracket | Optional rear |
| Receiver hitch | No |
| Front axle | Cast iron front axle, front wheel sealed ball bearings |
| Spindle bushings | No |
| Front tires | 15x6-6 |
| Rear tires | 20x10-8 |
| Hood material | Molded-in color material reduces sound, will not rust or dent |
| Fender deck material | Stamped steel |
| Floor mats | Yes, with debris removing channels |
| Storage | Storage tray with cover |
| Service interval decal | Yes |
| Fender handles/grips | No |
| Cup holder | Yes |
| Equipment mounting | CargO Mount™ system |
| Type | Sector and pinion with single drag link and tie rod |
| Four-wheel steer | Not available on this model |
| Steering wheel | Standard design, diameter - 12 in.<br> 30.5 cm |
| Tilt steering wheel | No |
| Turning radius | 18 in.<br> 45.7 cm |
| Uncut circle radius | 24 in.<br> 61 cm |
| Type | Two piece with open-back |
| Seat back height | 15 in.<br> 38.1 cm |
| Armrests | No |
| Fore-aft adjustment | While seated, 5.5 in.<br> 14 cm |
| Seat suspension | Tilt, two rubber isolators |
| Type | Spring-assisted hand-grip lever |
| Hydraulic outlets | No |
| Mower cut height | 13 positions, 1-4 in.<br> 2.5-10.2 cm |
| Cut height increments | 0.25 in.<br> 0.64 cm |
| Preset cut height | No |
| Type | Side discharge |
| Cutting width | Accel Deep mower deck, 42 in.<br> 107 cm |
| Construction | Stamped steel deck shell |
| Mower deck material | Steel, 12 gauge<br> 0.105 in.<br> 2.6 mm |
| Mower wash port | Yes, with hose end |
| Mower drive system | Manual power take-off (PTO) clutch |
| Mower wheels | Two |
| Mower wheel adjustment | One bolt |
| Mower level adjustment | Easy-level deck |
| Type | Slide under tractor |
| Front draft arms | One spring clip |
| Rear draft arms | Two spring clips |
| Mower wheels rotate | No |
| Drive system | Single V-belt |
| Meets ANSI standard | Yes |
