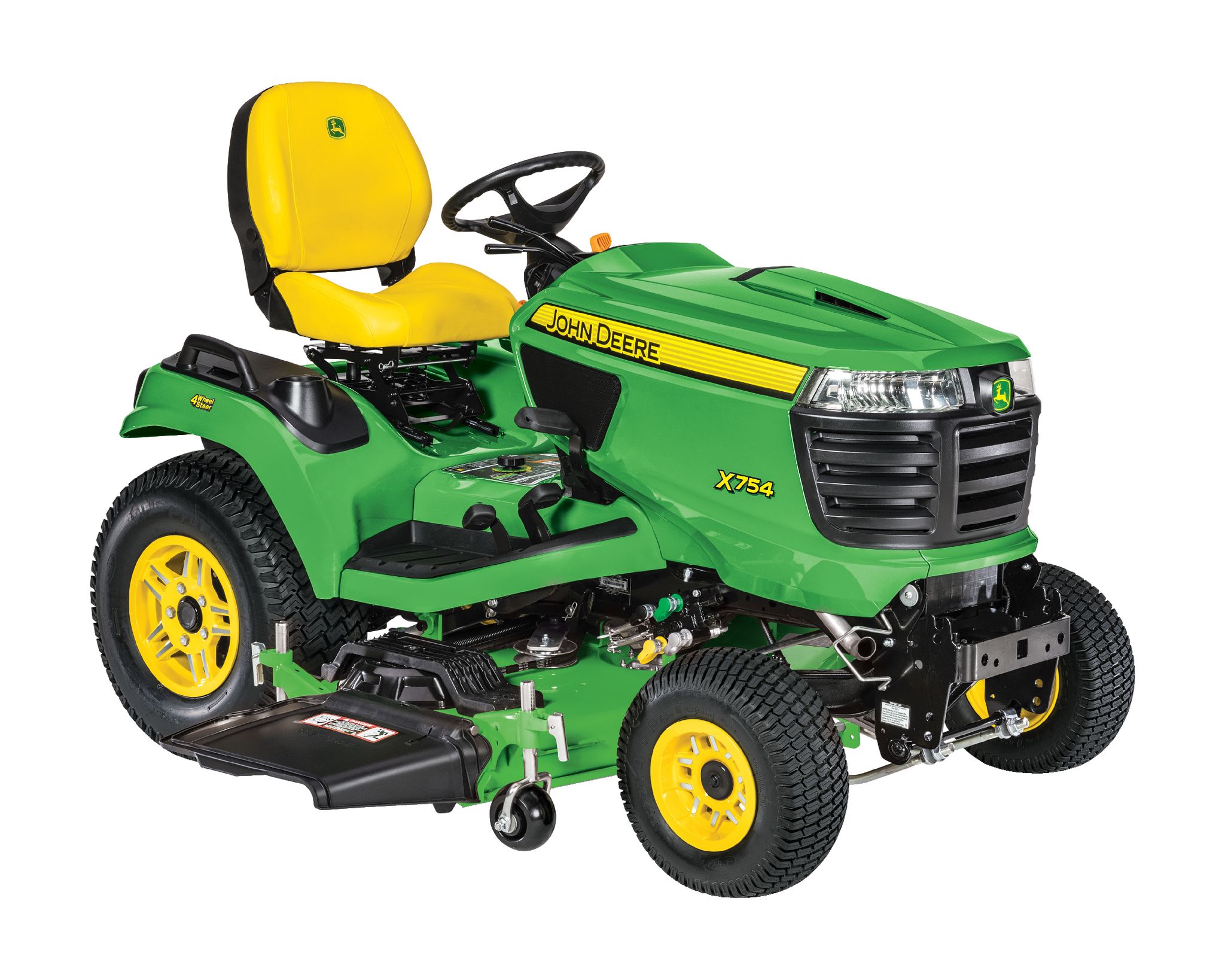

X754 Signature Series Lawn Tractor
$14,619.00
- 24-hp (17.9 kW) 3-cylinder diesel engine
- Power four-wheel steer, power lift system, Twin-Touch™ forward and reverse foot pedals
- 4-year/700-hour bumper-to-bumper warranty
- Available in 48-inch, 54-inch, and 60-inch mower deck sizes
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Specifications | |
---|---|
Engine power | 24 hp<br> 17.9 kW |
Engine manufacturer/model | 3TNM74F |
Transaxle type | K90 hydrostatic integrated with transaxle |
Transaxle control | Twin Touch™ pedals |
Rear tires | 26x10.5-12 turf |
Steering type | Hydraulic power |
Lift system type | Two-function hydraulic |
Cutting width | Accel Deep™ mower deck, 48 in.<br> 122 cm<br> High capacity mower deck, 54,60 in.<br> 137, 152 cm |
U.S. warranty | 4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Power | 24 hp<br> 17.9 kW |
Displacement | 60.6 cu in.<br> 993 cc |
Manufacturer/model | 3TNM74F |
Type | Diesel, overhead valve, full-pressure lube, oil filter |
Cylinders | Three, cast-iron liners |
Governor | Mechanical |
Choke/speed control | One lever |
Cooling method | Liquid |
Air cleaner | Paper dry-type with primary and secondary elements |
Oil drain | No tools |
Type | Diesel |
Fuel delivery | In-line indirect injection |
Fuel gauge | Gauge on dash |
Fuel tank location | Rear |
Fuel fill opening | On left fender, 3 in.<br> 7.6 cm |
Fuel tank capacity | 5.2 U.S. gal.<br> 19.7 L |
Battery | 12 V<br> 500 CCA |
Charging system | Engine-mounted alternator, regulated, 40 amp |
Engine starter | Solenoid shift |
Hourmeter | Yes |
Headlights | Two standard, halogen, 37 W |
Taillights or reflector | Taillights |
Backup lights | Yes |
Rear work lights | Yes |
12-V outlet | Yes |
Type | K90 hydrostatic integrated with transaxle |
Control | Twin Touch™ pedals |
Cruise control | Yes |
Oil cooler | Yes |
Oil filter | Replaceable suction side 10 micron |
Differential lock | Standard |
Forward speed | 0-8.5 mph<br> 0-13.7 km/h |
Reverse speed | 0-6 mph<br> 0-9.7 km/h |
Brakes | Internal wet disc |
Frame | Welded heavy-duty |
Primer/paint | E-coat/powder |
Weight bracket | Standard front - holds up to four Quik-Tatch weights, 42 lb<br> 19 kg |
Receiver hitch | Yes, front |
Front axle | JDM BA8 nodular iron casting |
Spindle bushings | Metal, replaceable |
Front tires | 18x7-8 turf |
Rear tires | 26x10.5-12 turf |
Hood material | Noryl GTX902, painted |
Fender deck material | RIM with in-mold paint |
Floor mats | Sure-grip rubber |
Storage | Covered toolbox |
Service interval decal | Yes |
Fender handles/grips | Handles |
Cup holder | Yes |
Equipment mounting | Optional category 1 3-point hitch |
Type | Hydraulic power |
Four-wheel steer | Yes |
Steering wheel | 14 in.<br> 35.6 cm |
Tilt steering wheel | Standard, six position |
Turning radius | 21 in.<br> 53.3 cm |
Uncut circle radius | 54 HC, 10 in.<br> 25.4 cm<br> 60 HC, 6 in.<br> 15.2 cm |
Type | Two-piece adjustable seat with brand embroidery |
Seat back height | 21 in.<br> 53.3 cm |
Armrests | Optional |
Fore-aft adjustment | While seated, slide rail, 14-position, 7 in.<br> 17.8 cm |
Seat suspension | Six-position parallel arm |
Type | Two-function hydraulic |
Hydraulic outlets | Four, standard |
Mower cut height | 1-5.25 in.<br> 2.5-13.3 cm |
Cut height increments | 0.25 in.<br> 0.64 cm |
Preset cut height | Yes |
Type | Side discharge |
Cutting width | Accel Deep™ mower deck, 48 in.<br> 122 cm<br> High capacity mower deck 54, 60 in.<br> 137, 152 cm |
Construction | Stamped steel deck shell |
Mower deck material | 48A, 10 gauge<br> 0.135 in.<br> 3.4 mm<br> 54 HC and 60 HC, 9 gauge<br> 0.15 in.<br> 3.8 mm |
Mower wash port | Yes |
Mower drive system | Hydraulic clutch, shaft |
Mower wheels | Four |
Mower wheel adjustment | Spring-loaded pin |
Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Type | Roll under tractor (48A)<br> Drive-over deck (54, 60 HC) |
Front draft arms | Overcenter |
Rear draft arms | V-align |
Mower wheels rotate | Yes, 90 degrees for easy mower removal (48X), N/A (54 HC, 60 HC) |
Drive system | Shaft or AutoConnect |
Meets ANSI standard | Yes |
