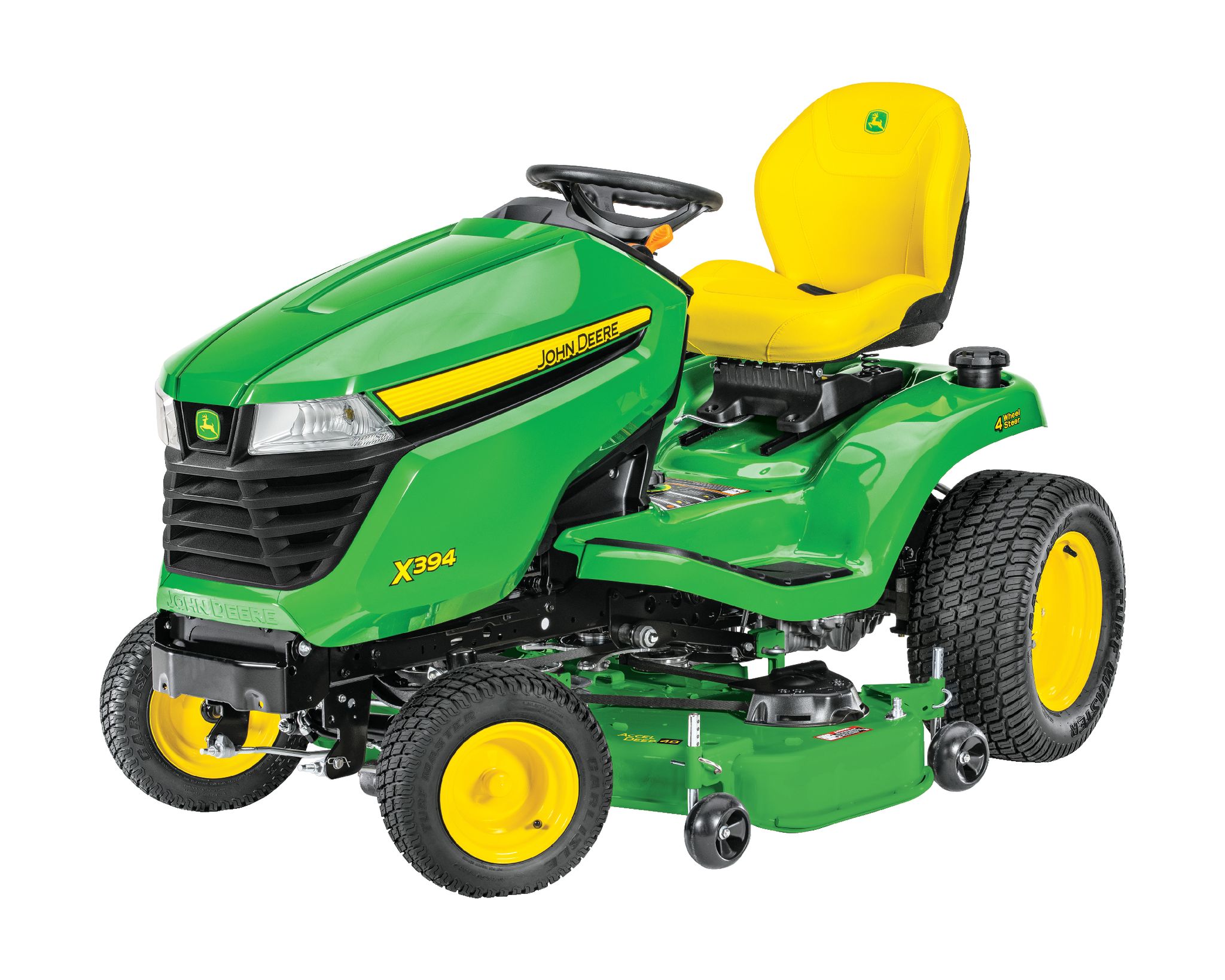

X394 Lawn Tractor with 48-inch Deck

$7,499.00

23-hp (17.2-kW)* iTorque™ Power System
48-in. (122 cm) Accel Deep™ mower deck, compatible with optional MulchControl™ kit with one-touch technology
Power four-wheel steer
4 year/300 hour bumper-to-bumper warranty

** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.

Specifications
Engine power	23 hp<br> 17.2 kW
Oil change	No-tools oil drain with replaceable filter
Engine manufacturer/model	FR691V
Transaxle type	K58 hydrostatic integrated with transaxle
Transaxle control	Twin Touch™ pedals
Rear tires	22x9.5-12
Lift system type	Hydraulic
Cutting width	Accel Deep™ mower deck, 48 in.<br> 122 cm
U.S. warranty	4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Power	23 hp<br> 17.2 kW
Displacement	44.3 cu in.<br> 726 cc
Manufacturer/model	FR691V
Type	Overhead valve, full-pressure lube, oil filter
Cylinders	V-twin, cast-iron liners
Governor	Mechanical
Choke/speed control	Separate levers, automatic choke return
Cooling method	Air
Air cleaner	Dry, replaceable
Oil change	No-tools oil drain with replaceable filter
Type	Gasoline
Fuel delivery	Pulse pump, carburetor
Fuel gauge	Gauge on dash
Fuel tank location	Rear
Fuel fill opening	On left fender, 3 in.<br> 7.6 cm
Fuel tank capacity	3.3 U.S. gal.<br> 12.5 L
Battery	12 V<br> 340 CCA
Charging system	Flywheel alternator, regulated, 12 amp
Engine starter	Bendix
Hourmeter	Yes
Headlights	Two standard, incandescent, 27 W
Taillights or reflector	No
Backup lights	No
Rear work lights	No
12-V outlet	Optional
Type	K58 hydrostatic integrated with transaxle
Control	Twin Touch™ pedals
Cruise control	Yes, button on dash
Oil cooler	Fins and fan on transaxle
Oil filter	Internal, not replaceable
Differential lock	No
Forward speed	0-6.2 mph<br> 0-10 km/h
Reverse speed	0-3.5 mph<br> 0-5.6 km/h
Brakes	Internal wet disc
Frame	Welded heavy-duty
Primer/paint	E-coat/powder
Weight bracket	Optional front and rear
Receiver hitch	No
Front axle	Cast iron front axle, front wheel ball bearings
Spindle bushings	Metal, replaceable
Front tires	15x6.5-8
Rear tires	22x9.5-12
Hood material	Fully enclosed, molded-in color material reduces sound, will not rust or dent
Fender deck material	Stamped steel
Floor mats	Sure-grip rubber
Storage	Yes, under seat and covered toolbox
Service interval decal	Yes
Fender handles/grips	No
Cup holder	Yes
Equipment mounting	Yes, heavy duty
Type	Power, hydraulic
Four-wheel steer	Yes
Steering wheel	Large, 14 in.<br> 35.6 cm
Tilt steering wheel	Standard, five position
Turning radius	19 in.<br> 48.3 cm
Uncut circle radius	15 in.<br> 38 cm
Type	Cut-and-sewn high-back
Seat back height	18 in.<br> 46 cm
Armrests	Optional
Fore-aft adjustment	While seated, slide rail, 15-position, 6.6 in.<br> 17 cm
Seat suspension	Tilt, two coil springs, three-position no-tools adjustment for operator weight
Type	Hydraulic
Hydraulic outlets	No
Mower cut height	13 positions, 1-4 in.<br> 2.5-10.2 cm
Cut height increments	0.25 in.<br> 0.64 cm
Preset cut height	Yes
Type	Side discharge
Cutting width	Accel Deep™ mower deck, 48 in.<br> 122 cm
Construction	Stamped steel deck shell
Mower deck material	10 gauge<br> 0.135 in.<br> 3.4 mm
Mower wash port	Yes
Mower drive system	Electric power take-off (PTO) clutch, in-line belt
Mower wheels	Four
Mower wheel adjustment	Seven-position, spring-loaded pin
Mower level adjustment	Exact Adjust ports and onboard deck-leveling gauge
Type	Roll under tractor
Front draft arms	Attached with spring pins at two points
Rear draft arms	Quick-pull pins
Mower wheels rotate	Yes, 90 degrees for easy mower removal
Drive system	Dual belt
Meets ANSI standard	Yes
