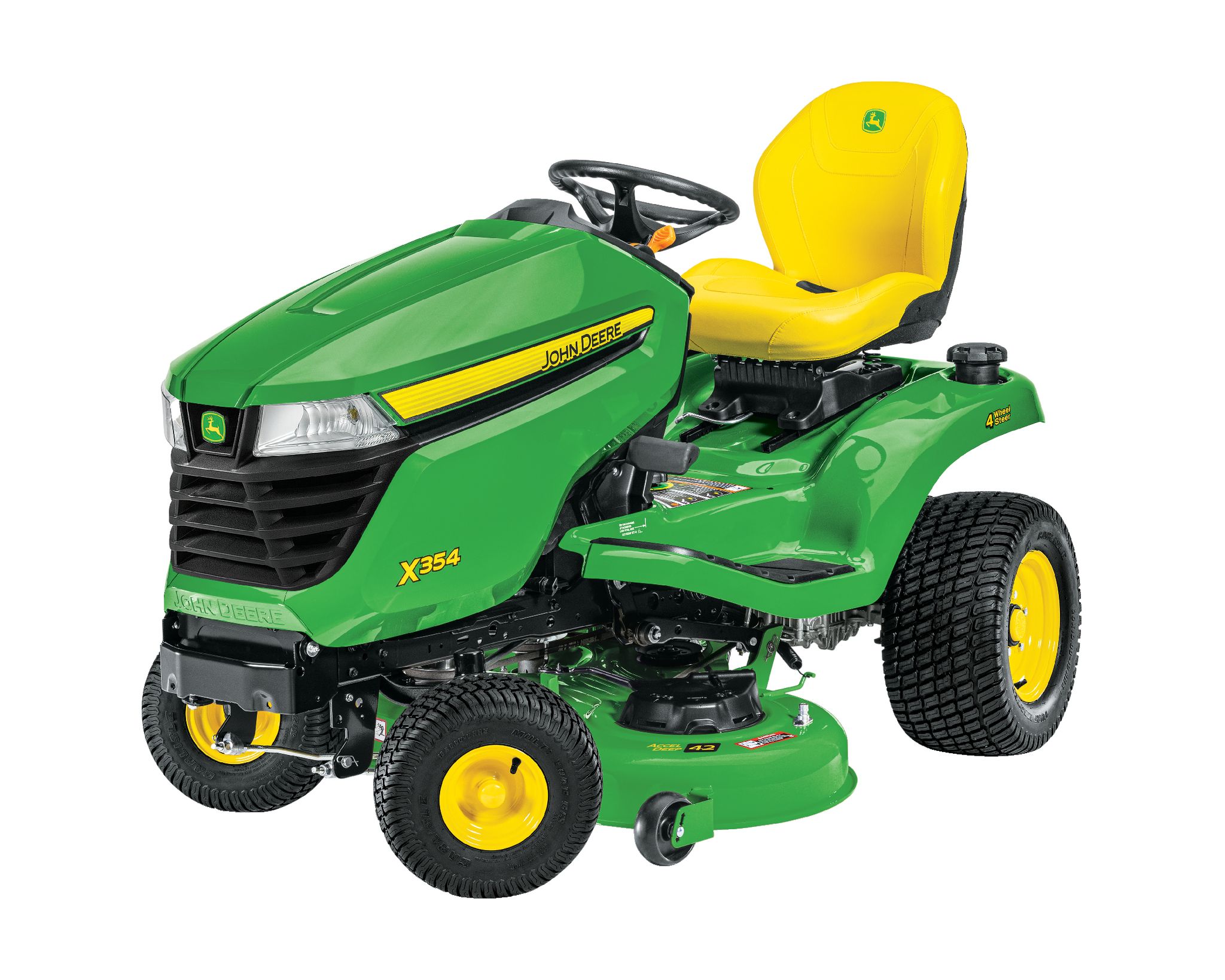

X354 Lawn Tractor with 42-in. Deck
$4,899.00
- 21.5-hp (16.0-kW)* iTorque™ Power System
- 42-in. (107 cm) Accel Deep™ mower deck, compatible with optional MulchControl™ kit with one-touch technology
- 18-in. cut and sewn seat
- 4 year/300 hour bumper-to-bumper warranty
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Specifications | |
---|---|
Engine power | 21.5 hp<br> 16 kW |
Oil change | No-tools oil drain with replaceable filter |
Engine manufacturer/model | FR651V |
Transaxle type | K46 hydrostatic integrated with transaxle |
Transaxle control | Twin Touch™ pedals |
Rear tires | 20x10-10 |
Lift system type | Foot pedal with optional adjustable spring assist kit |
Cutting width | Accel Deep™ mower deck, 42 in.<br> 107 cm |
U.S. warranty | 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Power | 21.5 hp<br> 16 kW |
Displacement | 44.3 cu in.<br> 726 cc |
Manufacturer/model | FR651V |
Type | Overhead valve, full-pressure lube, oil filter |
Cylinders | V-twin, cast-iron liners |
Governor | Mechanical |
Choke/speed control | Separate levers, automatic choke return |
Cooling method | Air |
Air cleaner | Dry, replaceable |
Oil change | No-tools oil drain with replaceable filter |
Type | Gasoline |
Fuel delivery | Pulse pump, carburetor |
Fuel gauge | Gauge on dash |
Fuel tank location | Rear |
Fuel fill opening | On left fender, 3 in.<br> 7.6 cm |
Fuel tank capacity | 3.3 U.S. gal.<br> 12.5 L |
Battery | 12 V<br> 340 CCA |
Charging system | Flywheel alternator, regulated, 12 amp |
Engine starter | Bendix |
Hourmeter | Yes |
Headlights | Two standard, incandescent, 27 W |
Taillights or reflector | No |
Backup lights | No |
Rear work lights | No |
12-V outlet | Optional |
Type | K46 hydrostatic integrated with transaxle |
Control | Twin Touch™ pedals |
Cruise control | Yes, button on dash |
Oil cooler | Fins and fan on transaxle |
Oil filter | Internal, not replaceable |
Differential lock | No |
Forward speed | 0-5.5 mph<br> 0-8.9 km/h |
Reverse speed | 0-4 mph<br> 0-6.4 km/h |
Brakes | Internal wet disc |
Frame | Welded heavy-duty |
Primer/paint | E-coat/powder |
Weight bracket | Optional front and rear |
Receiver hitch | No |
Front axle | Cast iron front axle, front wheel ball bearings |
Spindle bushings | No |
Front tires | 15x6-6 |
Rear tires | 20x10-10 |
Hood material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
Fender deck material | Stamped steel |
Floor mats | Sure-grip rubber |
Storage | Yes, under seat and covered toolbox |
Service interval decal | Yes |
Fender handles/grips | No |
Cup holder | Yes |
Equipment mounting | Yes, heavy duty |
Type | Manual, sector and pinion |
Four-wheel steer | Yes |
Steering wheel | Large, 14 in.<br> 35.6 cm |
Tilt steering wheel | No |
Turning radius | 15 in.<br> 38.1 cm |
Uncut circle radius | 15 in.<br> 38.1 cm |
Type | Cut-and-sewn high-back |
Seat back height | 18 in.<br> 46 cm |
Armrests | Optional |
Fore-aft adjustment | While seated, slide rail, 15-position, 6.6 in.<br> 17 cm |
Seat suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
Type | Foot pedal with optional adjustable spring assist kit |
Hydraulic outlets | No |
Mower cut height | 13 positions, 1-4 in.<br> 2.5-10.2 cm |
Cut height increments | 0.25 in.<br> 0.64 cm |
Preset cut height | Yes |
Type | Side discharge |
Cutting width | Accel Deep™ mower deck, 42 in.<br> 107 cm |
Construction | Stamped steel deck shell |
Mower deck material | 12 gauge<br> 0.105 in.<br> 2.7 mm |
Mower wash port | Yes |
Mower drive system | Electric power take-off (PTO) clutch, in-line belt |
Mower wheels | Two |
Mower wheel adjustment | Four-position, tool required |
Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Type | Slide under tractor |
Front draft arms | Attached with spring pins at two points |
Rear draft arms | Two pins and spring clips |
Mower wheels rotate | No |
Drive system | Single belt |
Meets ANSI standard | Yes |
