5055E Utility Tractor
$35,294.00
59 engine hp
- Best-in-class visibility
- Thick comfortable seat
- 5-Year Powertrain Warranty
| Specifications | |
|---|---|
| Engine description | John Deere PowerTech 3029 |
| Engine displacement | 3 cylinders: 2.9 L<br> 179 cu in. |
| Rated engine power | At 2100 rpm: 44.4 kW<br> 59 hp |
| Rated PTO power (hp SAE) | At 2100 rpm<br> Cab 30.6 kW (41 PTO hp) |
| Maximum PTO power | @ 1800 RPM:<br> Cab - 33.6kw (45hp)<br> Open Station - 35.8KW (48hp) |
| Transmission type | Standard: 9F/3R SyncShuttle<br> Optional: 12F/12R PowrReverser |
| Hydraulic pump rated output | 66.1 L/min<br> 17.5 gpm |
| Rear hitch category (SAE designation) | Category 2; convertible to 1 |
| Description | John Deere PowerTech 3029 |
| Engine family | LJDXL02.9318 |
| Aspiration | Turbocharged |
| Cylinders liners | Wet sleeved |
| Displacement | 3 cylinders: 2.9 L<br> 179 cu in. |
| Rated power | At 2100 rpm: 44.4 kW<br> 59 hp |
| Rated PTO power (hp SAE) | At 2100 rpm:<br> Cab - 30.6 kW (41 PTO hp) |
| Maximum PTO power | @ 1800 RPM:<br> Cab - 33.6kw (45hp)<br> Open Station - 35.8KW (48hp) |
| Intelligent Power Management (IPM) | <br> |
| Type | Standard: 9F/3R SyncShuttle<br> Optional: 12F/12R PowrReverser |
| Reverser | Optional |
| Clutch; wet/dry | Dry on 9F/3R SyncShuttle<br> Wet on 12F/12R PowrReverser |
| Creeper | Optiona on 9F/3R Transmission models |
| Type | Open Center |
| Pump rated output | Standard: 66.1 L/min<br> 17.5 gpm |
| Available flow at a single rear SCV | 43.4 L/min<br> 11.5 gpm |
| Number of rear selective control valves (SCVs) | Standard: 1<br> Optional: 2 |
| Number of mid selective control valves (SCVs) | Standard: 0<br> Optional: 2 |
| Joystick SCV control | 2WD: FIK<br> MFWD: Standard |
| Auxiliary hydraulic features | <br> |
| Hitch draft control load sense type | Mechanical |
| Remote control valves available | Standard: 1<br> Optional: 2 |
| Hitch category (SAE designation) | Category 2; convertible to 1 |
| Maximum lift capacity behind lift points | OECD hitch lift cap at 24 behind: 3192 lb<br> 1448 kg |
| Sensing type | Top link |
| Type | Standard: Independent 540<br> Optional: Independent 540E (12x12) |
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm |
| PTO actuation | Mechanical (lever on 9x3)<br> Electrohydraulic with wet clutch (12x12) |
| Final drive type | Planetary |
| Differential controls | Mechanical (pedal) |
| Axle type | Flanged |
| Brakes, type and control | Hydraulic wet disc |
| Front | 2WD: 7.5-16 R1<br> MFWD: 9.5-24 R1 |
| Rear | 2WD: 14.9-28 R1<br> MFWD: 14.9-28 R1 |
| Turning radius with brakes | 2WD: 3.1 m<br> 10.2 ft<br> MFWD: 3.94 m<br> 12.9 ft |
| Turning radius without brakes | 2WD: 3.5 m<br> 11.5 ft<br> MFWD: 4.65 m<br> 15.3 ft |
| Central Tire Inflation System (CTIS) | <br> <br> |
| Type of bulb in headlight (Halogen, Zenon, LED) | <br> |
| Type of bulb in beacon (Halogen, Zenon, LED) | <br> |
Similar Products

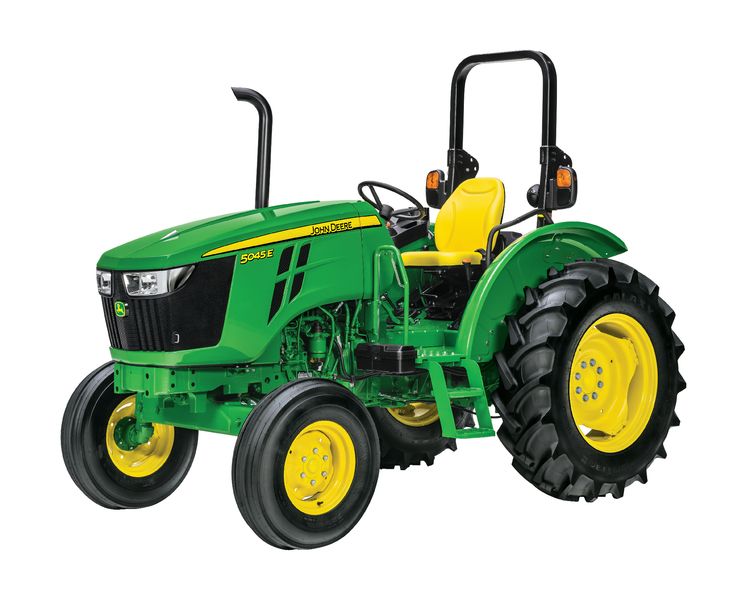

5045E Utility Tractor
