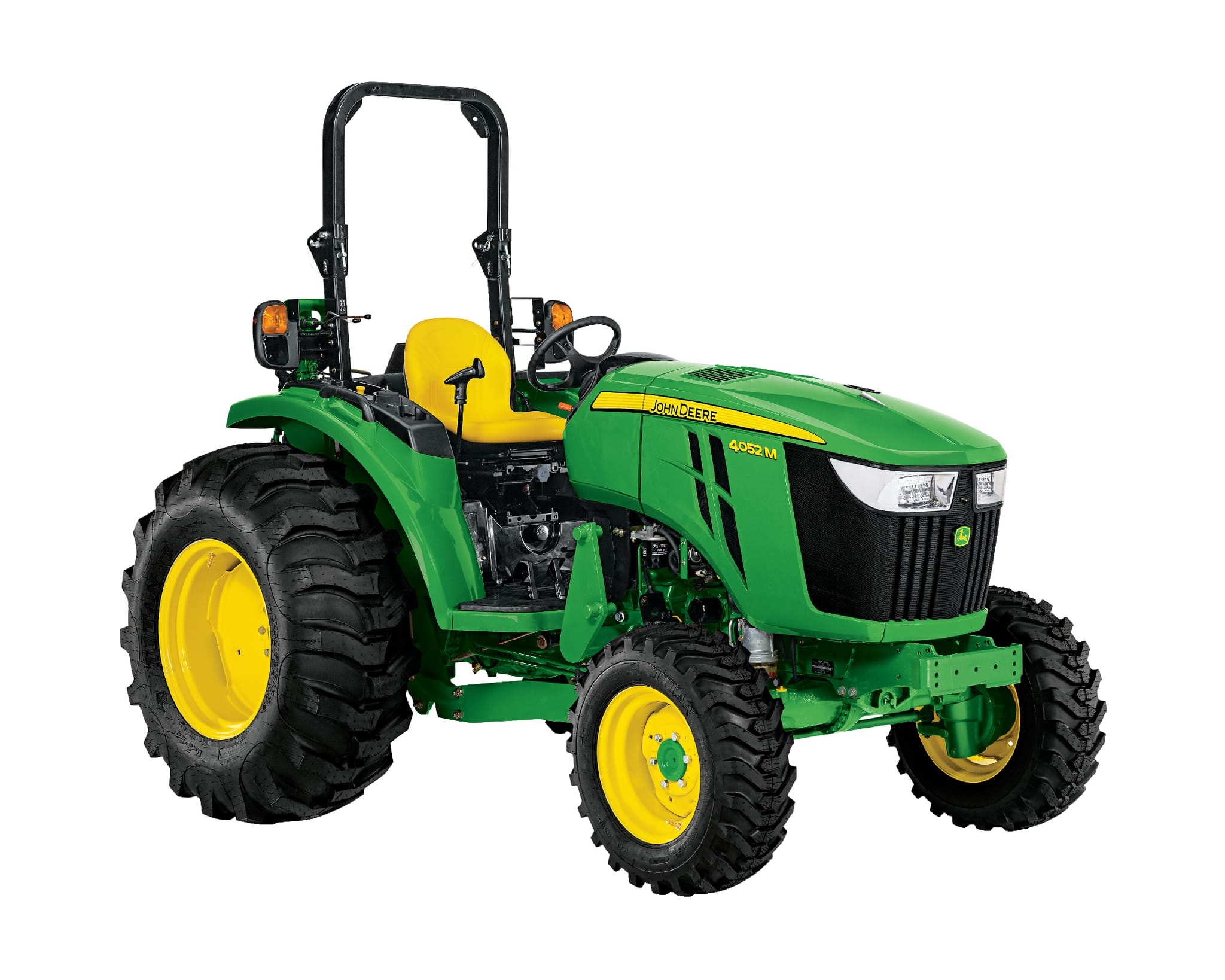

4052M Compact Utility Tractor
Starting at:$38,450.00
WADE Promotion – 0% for 60 months.
Save $1,500 with cash purchase.
Offer expires October 27,2023.
Tractor Only, Pricing will Change as Implements are Added
- Turbocharged diesel engine
- PowrReverser™ or eHydrostatic Transmission options
- Standard 4-wheel-drive
- Category 1, 3-point hitch compatible with iMatch™ Quick-Hitch
** Manufacturer’s suggested list price shown. Retail prices may vary by dealer. Unless stated otherwise, taxes, freight, setup, delivery and other dealer specific charges not included in the pricing. Pricing and specifications subject to change without notice.
Customize
| Specifications | |
|---|---|
| Engine power (gross) | 37.9 kW<br> 51.5 hp<br> PS at 2600 rpm<br> SAE J1995 rated power |
| Power take-off (PTO) power | PowrReverser™ transmisison: 30.5 kW<br> 40.8 hp<br> eHydro™ transmission: 30.5 kW<br> Per SAE J1995 |
| Steering hydraulics | 23.5 L/min<br> 6.2 gpm |
| Implement hydraulics | 42.3 L/min<br> 11.2 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 1135 kg<br> 2500 lb |
| Standard transmission; forward/reverse | PowrReverser transmission |
| Cruise control | Optional |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1703 kg<br> 3754 lb<br> Cab: Not applicable |
| Wheelbase | 185.5 cm<br> 73 in. |
| Family | EYDXL2.09TDA<br> FYDXL2.09TDA<br> GYDXL2.09TDA |
| Manufacturer | Yanmar® |
| Engine model | 4TNV86CT-MJT |
| Engine power (gross) | 37.9 kW<br> 51.5 hp<br> PS at 2600 rpm<br> SAE J1995 rated power |
| Power take-off (PTO) power | PowrReverser transmisison: 30.5 kW<br> 40.8 hp<br> eHydro transmission: 30.5 kW<br> Per SAE J1995 |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 4 / 2.091 L<br> 4 / 127.6 cu in. |
| Number of cylinders | Four |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm<br> 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed | 139 Nm<br> 102.5 lb-ft |
| Fuel tank capacity | 56.9 L<br> 15 U.S. gal. |
| Battery size | 770 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 2 kW<br> 2.68 hp |
| Type | High pressure common rail direct injection |
| Fuel consumption | <br> |
| Standard transmission; forward/reverse | PowrReverser transmission |
| Optional transmission; forward/reverse | eHydro transmission |
| Left-hand reverser | PowrReverser transmission only |
| Transmission gear ranges | PowrReverser: 12F/12R<br> eHydro: Infinitely-variable three range |
| Final drive | Planetary |
| Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Clutch, wet/dry | Wet |
| Clutch disk diameter wet clutch | 129 mm<br> 5.08 in. |
| Axle capacity | Front<br> 1600 kg<br> 3528 lb<br> Rear<br> 2400 kg<br> 5292 lb<br> |
| Cruise control | Optional |
| Differential lock | Yes |
| Type | Open center |
| Pump rated output | Steering<br> 23.5 L/min<br> 6.2 gpm<br> Implement<br> 42.3 L/min<br> 11.2 gpm<br> 65.8 L/min<br> 17.4 gpm |
| Pump type | Single gear |
| Draft control sensing | Position control |
| Remote control valves available | Up to three rear remotes |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms | 1135 kg<br> 2500 lb |
| Standard | Independent 540 rpm at 2600 rpm |
| Control | Position |
| Clutch | Wet disc |
| Crankcase with filter | 5.3 L<br> 1.4 qt |
| Transmission and hydraulic system | 47.3 L<br> 12.5 gal. |
| Type | Planetary |
| Differential lock | Yes |
| Rollover protective structure | Type<br> Foldable<br> Yes |
| Platform - flat/straddle | Flat |
| Gear shift location - console/floor | PowrReverser - Left-hand side |
| Wheelbase | 185.5 cm<br> 73 in. |
| Front axle clearance | 25.1 cm<br> 13.8 in. |
| Turning radius with brakes | 2.8 m<br> 9.19 ft |
| Turning radius without brakes | 3 m<br> 9.84 ft |
| Approximate shipping weight (open-station; cab) | OOS: 1703 kg<br> 3754 lb<br> Cab: Not applicable |
| Front | Farm - 8-16<br> Turf - 27x10.5-15<br> Industrial - 10-16.5 |
| Rear | Farm - 13.6-28<br> Turf - 44x18-20 or 22.5LL-16.1<br> Industrial - 16.9Lx24 |
| Front tread range | 148.1 cm<br> 58.3 in. |
| Rear tread spacing | 137.2 cm<br> 54 in. |
